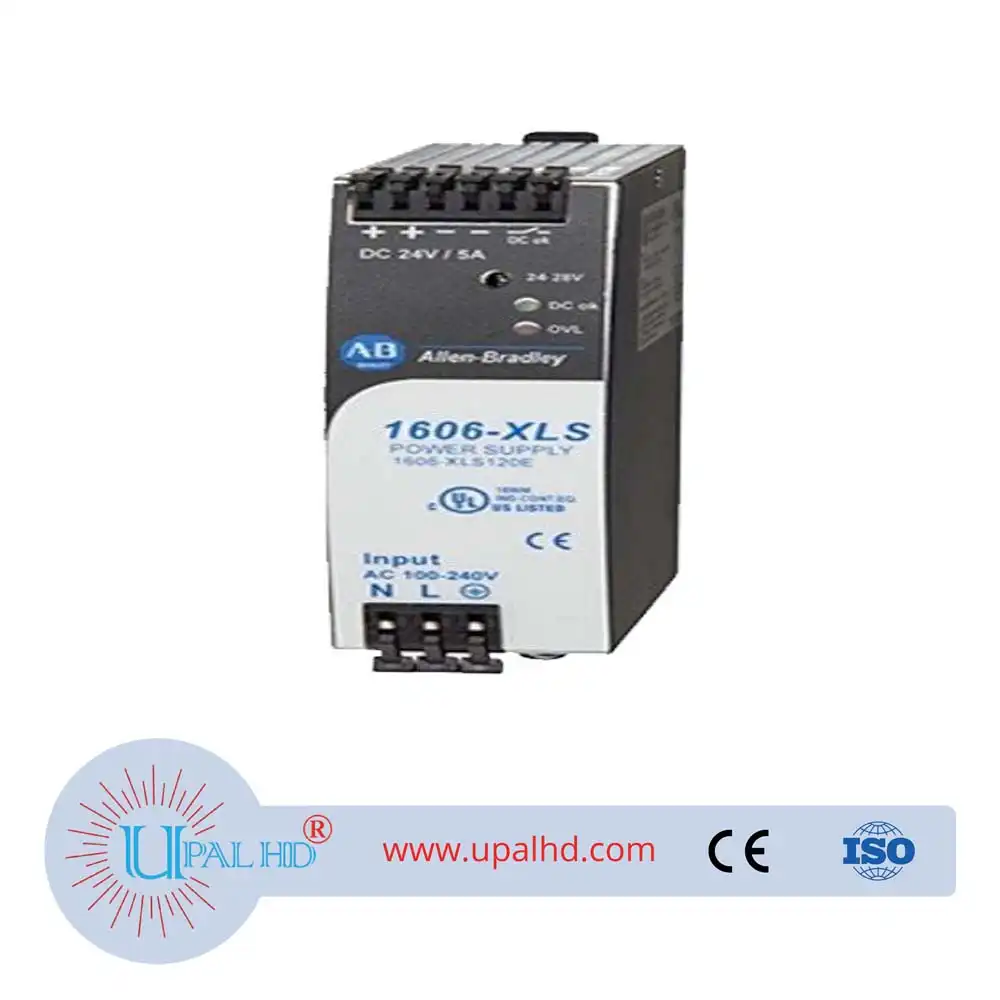

PRODUCT INFORMATION OF 1606-XLS120E New Rockwell AB PLC DC regulated power supply.
| Nominal value output voltage 1 | 24 V |
| Secondary voltage adjustable | Yes |
| Power output | 120 W |
| Voltage type of supply voltage | AC/DC |
| Rated supply voltage at DC | 110 V |
| Derating | 3 W/°C |
| DC OK relay contact | Yes |
| Input inrush current limiter | Active |
| Output voltage | 24…28V DC |
| Power factor | 0.91 typical |
| Operational range | 88…360V DC |
| Reserve power (typ. 4 s) | 7.5 A, 24V DC |
| Rated output current | 5 A, 24V DC |
| External input fuse, min | B-6 A or C-3 A |
| Power losses | 9.4 W typical |
| Sub group | Performance family |
| Hold-up time | 33 to 59 ms |
| Efficiency | 92.7% typical |
| Input inrush current | 9 A/11 A |
| Input voltage | 100…240V @ AC, 47…63 Hz |
| Rated input current | 1.4 A, 100V AC |
| Special feature | Active PFC, Class 1 division 2, semi F47, 9) ABS/GL/RINA (marine) |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Stabilized | Yes |
| Height | 124 mm |
| Depth | 117 mm |
| Direct mounting possible | No |
| Width | 40 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Spring clamp connection |
| Special functions | No special function |
| MTBF | 831 kh (40 °C, SN29500) |
| Wall mounting possible | Yes |
| Degree of protection (NEMA) | Other |
