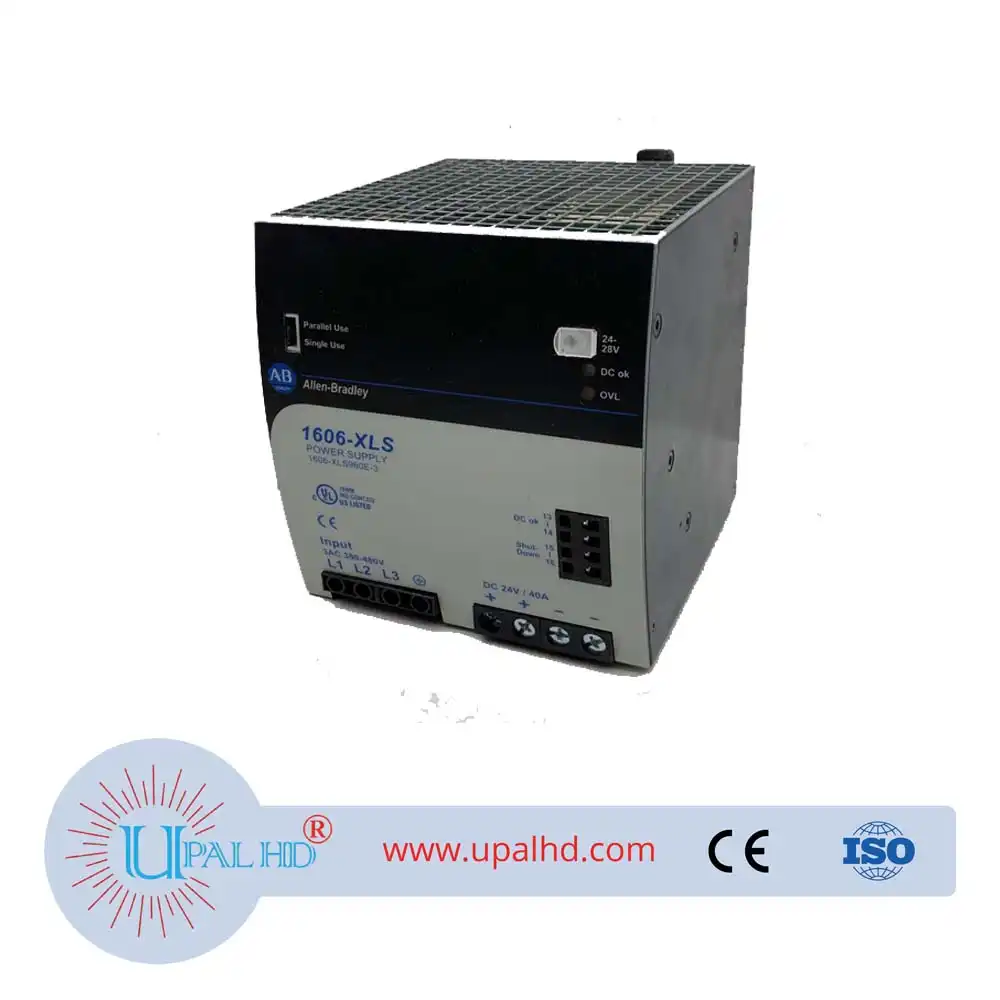

1606-XLS960E-3 New American Rockwell AB PLC switching power supply.
1606-XLS960E-3 New American Rockwell AB PLC switching power supply.1606 Series Model No: 1606-XLS960E-3.Power Supply, Bulletin 1606 XLS Performance, 380-480VAC Input, 24-28VDC Output, 960Watt, 40A Output, Parallel Operation, DC OK Relay
Description
PRODUCT INFORMATION OF 1606-XLS960E-3 New American Rockwell AB PLC switching power supply.
| Nominal value output voltage 1 | 24 V |
| Secondary voltage adjustable | Yes |
| Power output | 960 W |
| Voltage type of supply voltage | AC/DC |
| Derating | 24 W/°C |
| DC OK relay contact | Yes |
| Input inrush current limiter | Active |
| Output voltage | 24…28V DC |
| Power factor | 0.88 typical |
| Operational range | 380…480V AC |
| Reserve power (typ. 4 s) | 60A, 24V DC |
| Rated output current | 40 A, 24V DC |
| External input fuse, min | B-6 A or C-6 A |
| Power losses | 47.3 W typical |
| Sub group | Performance family |
| Hold-up time | 20 ms |
| Efficiency | 95.3% typical |
| Input inrush current | 4.5 A/4.5 A |
| Input voltage | 380…480V @ AC, 47…63 Hz |
| Rated input current | 1.65 A |
| Special feature | Class 1, Div. 2, ABS/GL/RINA (marine) |
| Output voltage stabilized | Yes |
| Rail mounting possible | Yes |
| Stabilized | Yes |
| Height | 124 mm |
| Depth | 127 mm |
| Direct mounting possible | No |
| Width | 110 mm |
| Degree of protection (IP) | IP20 |
| Type of electric connection | Screw connection |
| Special functions | No special function |
| MTBF | 375 kh (40 °C, SN29500) |
| Wall mounting possible | Yes |
| Degree of protection (NEMA) | Other |
