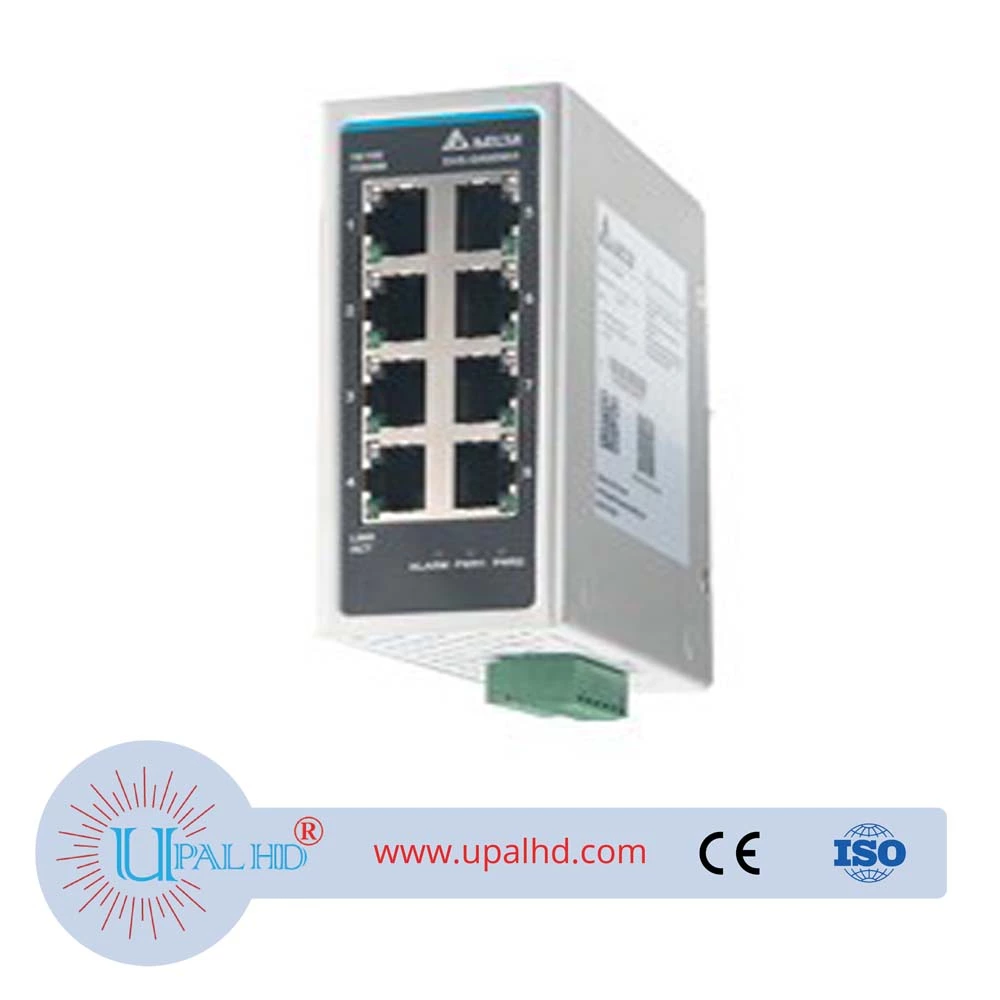

DELTA PLC DVS-G008W01

Description

PRODUCT INFORMATION OF DELTA PLC DVS-G008W01

Specifications

Technology

1. Standard Compliance
2. IEEE 802.3 10Base-T
3. IEEE 802.3u 100Base-T(X) and 100Base-FX
4. IEEE 802.3ab 1000Base-T
5. IEEE 802.3x Flow Control
6. Processing Type

7. ---

8. Store and Forward
9. IEEE 802.3x Flow control in full duplex, back-pressure flow control in half duplex

10. ---



Interface

1. Gigabit Ethernet
2. RJ45 Ports: 8 10/100/1000Base-T, auto MDI/MDI-X, auto negotiation
3. Alarm Contacts(DO)
4. 1 relay output, carry current 1.5A@24V_DC

5. ---

6. Performance and Scalability
7. Switching Capacity: 16Gbps, Wired speed, Non-blocking switching fabric
8. Forwarding Rate: 11.9Mpps
9. MAC Address Table: 4K
10. Packet Buffer Memory: 1.5M bits
11. Jumbo Frame: 9,216 Bytes
12. Transparent Forwarding VLAN Tagged Packets: Default enabled

13. ---

14. Power Requirements
15. Input Voltage:
16. 2 sets, 12 to 48VDC and 10 to 24VACredundant terminal block input
17. Input Current: Max. 0.23A
18. Overload Current Protection: Present, max. input current 5A
    Reverse Polarity Protection: Present

19. ---

20. Physical
21. Housing: IP30 metal case
22. Dimensions: 95 mm(H) x 40 mm(W) x 100 mm (D)
23. Weight: 500g
24. Installation: Industrial DIN-Rail and wall mounting

25. ---

26. Environmental Limits
27. Operating Temperature: -40℃ to 75℃(-40℉ to 167℉)
28. Storage Temperature: -40℃ to 85℃(-40℉ to 185℉)
29. Ambient Relative Humidity: 5% to 95%(non-condensing)

30. ---

31. Approvals
32. Safety: UL 61010, EN 62368-1, RCM, KC
33. EMI: FCC 47 CFR Part 15 Subpart B Class A, IEC 61000-6-4, EN 55011, EN 55032(CISPR 32)
34. EMS〔IEC 61000-6-2, IEC 61131-2, EN 55024, EN 55035〕: EN 61000-4-2 Level 3, EN 61000-4-3 Level 3, EN 61000-4-4 Level 3, EN 61000-4-5 Level 3, EN 61000-4-6 Level 3, EN 61000-4-8 Level 4
35. Shock: IEC 60068-2-27
36. Freefall: IEC60068-2-32
37. Vibration: IEC 60068-2-6
38. Hi-Pot: 2.25KV
