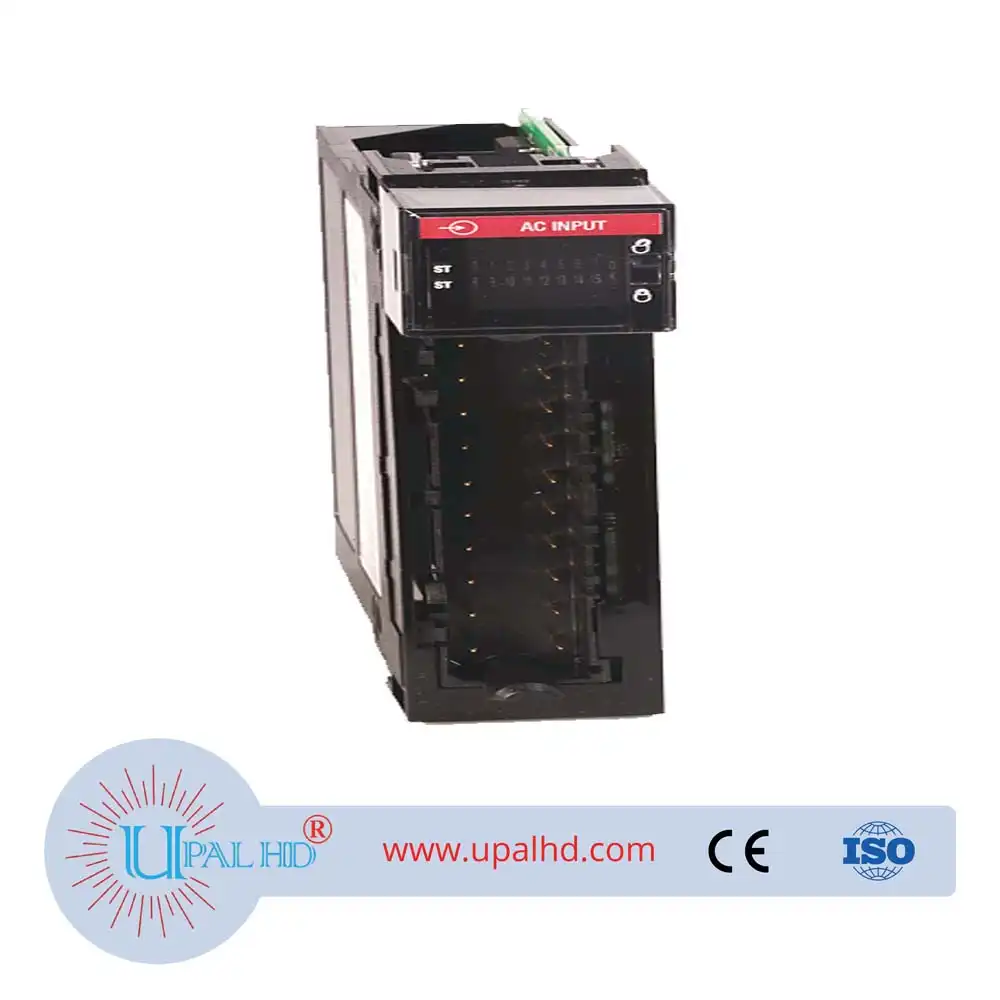

1756-IB32 Rockwell AB Control Logix 10 communication module.
1756-IB32 Rockwell AB Control Logix 10 communication module.1756 Series Model No: 1756-IB32. The 1756-IB32 input module is an Allen-Bradley/Rockwell Automation ControlLogix series input module. It is a digital DC type of input module. The 1756-IB32 digital DC input module has 32 input channels that are divided into 2 groups of 16 inputs each. Its voltage category is 12 to 24 Volts DC sink voltage. The 1756-IB32 digital DC input module supports 120 milliamps of rated current draw at 5.1 Volts and 2 milliamps of rated current draw at 24 Volts DC.
Description
PRODUCT INFORMATION OF 1756-IB32 Rockwell AB Control Logix 10 communication module.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1756-IB32 |
| Series | ControlLogix |
| Inputs | 32 |
| Module Type | Digital DC Input Module |
| No. of Inputs | Thirty-Two (32) Inputs |
| Input Voltage | 12-24 Volts DC Sink |
| Operating Voltage Range | 10-31.2 Volts DC |
| Module Keying | Electronic |
| Input Delay Time | 2 milliseconds plus selected filter time |
| Maximum Operating Current | 5.5 milliamperes |
| Minimum Operating Current | 2 milliamperes at 10 Volts DC |
| Maximum Input Current, Off-State | 1.5 milliamperes |
| Input Delay Time, OFF to ON | Hardware delay: 380 µs max + filter time |
| Input Delay Time, ON to OFF | Hardware delay: 420 µs max + filter time |
| Backplane Current at 5 Volts | 120 milliamperes |
| Power Dissipation (Max) | 6.2 W @ 60 °C (140 °F) |
| Backplane Current at 24 Volts | 2 milliamperes |
| Backplane Current at 5.1 Volts | 100 milliamperes |
| Thermal Dissipation | 21.1 BTU/hr @ 60 °C (140 °F) |
| UPC | 10612598171306 |
| Removeable Terminal Block(s) | 1756-TBCH 1756-TBSH |
