1756-PA75 Rockwell AB Control Logix 10 communication module.

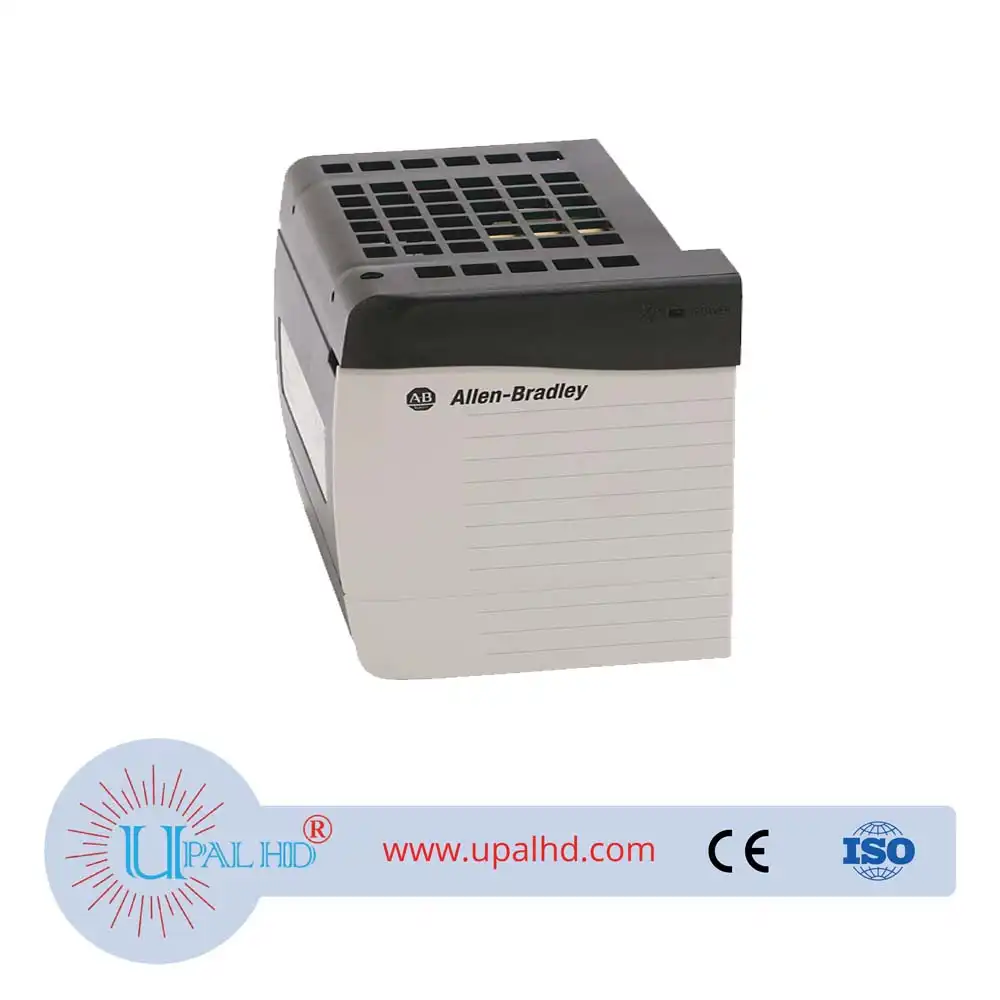

1756-PA75 Rockwell AB Control Logix 10 communication module.1756 Series Model No: 1756-PA75. The Allen-Bradley 1756-PA75 is a ControlLogix Power Supply. This is a Standard Power Supply that is externally powered by an input Voltage range of 85-265VAC, 47-63 Hz. It has an output power rating of 75 W @ 0…+60 °C (+32…+140 °F) and current capacity of 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC. This module is installed at the left most side of the 1756 chassis.
Description
PRODUCT INFORMATION OF 1756-PA75 Rockwell AB Control Logix 10 communication module.
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-PA75 |
| Chassis Compatibility | 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C |
| Location | 1756 Chassis Left Side |
| Hold Up time | 2 cycles @ 85V AC, 60 Hz 6 cycles @ 120V AC, 60 Hz 20 cycles @ 220V AC, 60 Hz |
| Max Inrush Current | 30 Amperes |
| Isolation Voltage | 250 Volts Continuous |
| Input Voltage Range | 85-265VAC |
| Nom Input Voltage | 120/240VAC |
| UNSPSC | 32151706 |
| Brand | Allen-Bradley |
| Current Capacity | 4A at 3.3VDC; 13 A at 5.1VDC and 2.8 A at 24VDC |
| Series | ControlLogix |
| Module Type | Standard DC Power Supply |
| Dimensions | 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.) |
| Weight | 0.95 kg (2.10 lb) |
| Input Voltage | 120-220 Volts AC |
| Voltage Range | 85-265 Volts AC |
| Input Power | 100 Watts |
| Input Frequency | 47-63 Hertz |
| Power Output | 75 Watts at 60 Celsius |
| Chassis | Series B |
| Location | Chassis – Left Side |
| Operating Temperature | 32-140 Fahrenheit (0-60 Celsius) |
| Enclosure | None |
| UPC | 10612598206855 |
