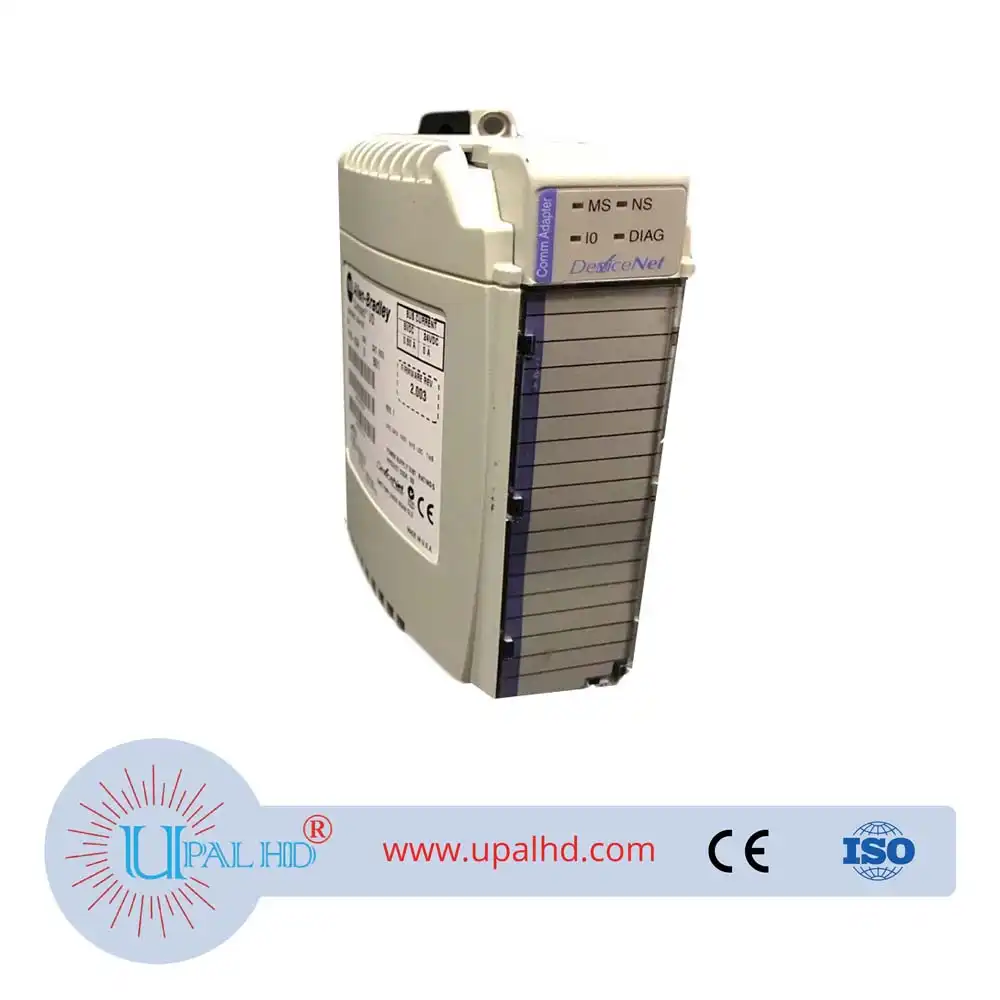

1769-ADN Rockwell AB CompactLogix PLC brand new original spot warranty for 1 year.
1769-ADN Rockwell AB CompactLogix PLC. 1769 Series Model No: 1769-ADN. The Allen-Bradley 1769-ADN is a DeviceNet communication module compatible for 1769 CompactLogix or MicroLogix 1500 system. It allows connection to DeviceNet network through the integrated DeviceNet communication port with communication rates of 125k bit/s, 250k bit/s, and 500k bit/s. This module supports DIN rail or panel mounting.
Description
PRODUCT INFORMATION OF 1769-ADN Rockwell AB Compact Logix PLC.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1769-ADN |
| Product Description: | 1769 CompactLogix DeviceNet Scanner |
| Product Line | CompactLogix |
| Module Type | DeviceNet Adapter Module |
| Communication Port: | One (1) DeviceNet |
| Shipping Weight | 2 pounds |
| Data Transfer speed: | 125k bit/s 250k bit/s 500k bit/s |
| Shipping Dimensions | 8x8x5 inches |
| Indicators: | Module Status: red/grn Network status – red/grn I/O status- red/grn Diagnostic status- red/grn |
| Series | A and B |
| Isolation Voltage | 30 Volts Continuous |
| Mounting: | DIN Rail; Panel |
| Enclosure | Open |
| Power Supply Distance Rating: | Series A: 4; Series B: 5 |
| Agency Certification: | UL; CE; DeviceNet Foundation |
| Operating Temperature: | 32°F to 140°F (0°C to 60°C) |
| Power Consumption | 33.6 Watts |
| Backplane Current | Series A: 450mA at 5V dc (2.25W) Series B: 500mA at 5V dc (2. 5W) |
| Power Dissipation | 7.5 Watts |
| Storage Temperature: | -40°F to +185°F (-40°C to +85°C) |
| UPC | 10612598205896 |
| Humidity: | 5% to 95% non-condensing |
| Dimensions: | 118mm (height) x 87mm (depth) x 50mm (width) height including mounting tabs is 138mm 4.65in (height) x 3.43in (depth) x 1.97in (width) height including mounting tabs is 5.43in |
