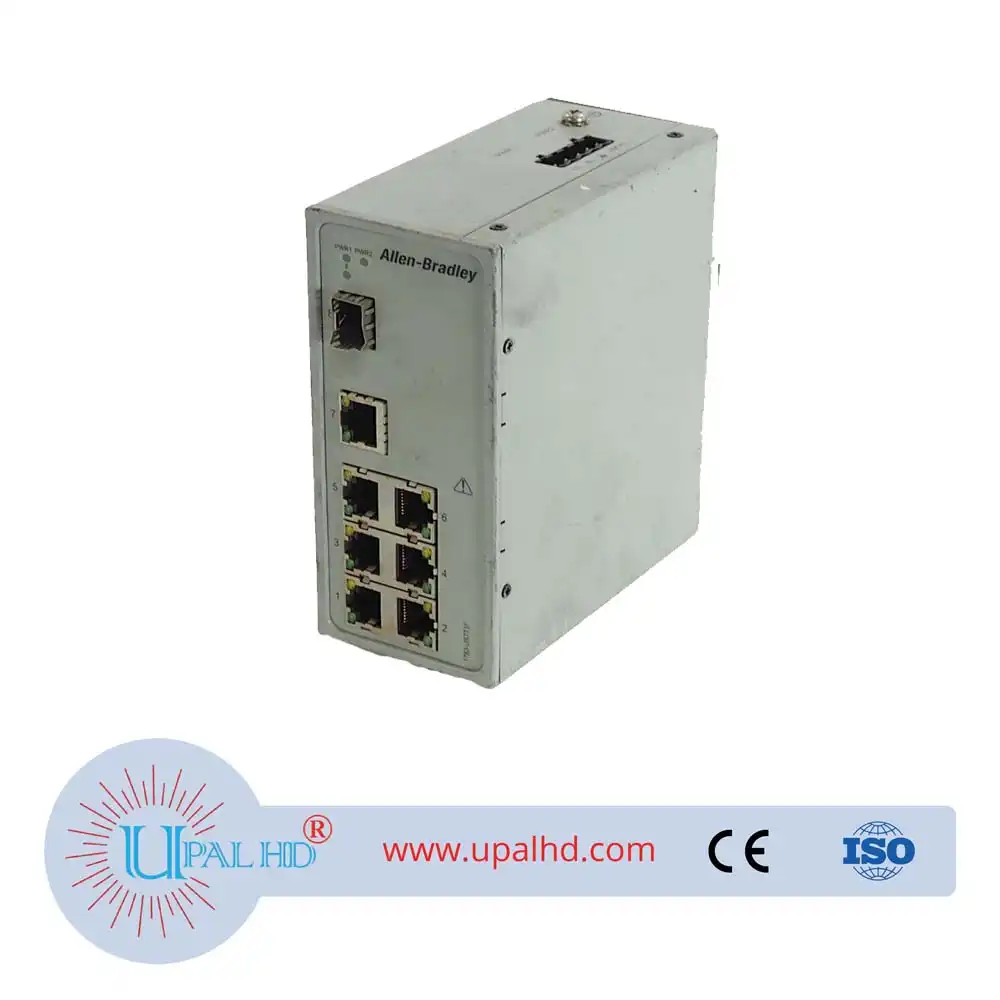

1783-US7T1F American Rockwell Automation AB unmanaged Ethernet switch.
1783-US7T1F American Rockwell Automation AB unmanaged Ethernet switch.1783 Switch Model No: 1783-US7T1F. The Allen-Bradley 1783-US7T1F is a Stratix 2000 Ethernet unmanaged switch. This ethernet switch has a total of Eight (8) communication ports. It has Seven (7) Fast Ethernet ports supporting 100 Mbps communication rate and One (1) SFP port that is pre-installed with One (1) 1 FE multimode fiber SFP module. It has a nominal input supply requirement of 24V with applicable range of 12-48V DC, 18…30V AC, 50/60 Hz), SELV.
Description
PRODUCT INFORMATION OF 1783-US7T1F American Rockwell Automation AB unmanaged Ethernet switch.
| Manufacturer | Rockwell Automation |
| Enclosure Type Rating | None (open-style) |
| Wire size, functional earth | 2.5 mm2 (14 AWG) copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminal |
| Wire size, power connections | 4…0.25 mm2 (12…24 AWG) twisted-pair copper wire suitable for 86 °C (187 °F) above surrounding ambient temperature outside the enclosure |
| Power Supply | 24V (12…48V DC, 18…30V AC, 50/60 Hz), SELV |
| Available Series | Series A / B |
| SFP module mode | multi-mode |
| Pre-installed SFP module | Yes |
| No. of SFP ports | One (1) |
| No. of Copper ports | Seven (7) |
| No. of Ports | Eight (8) |
| Series | Stratix2000 Unmanaged Ethernet switch |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 1783-US7T1F |
| Max Ground Terminal Screw Torque | Open-Style/None |
| Power Terminal Screw Torque | 8.05 in?lb |
| Wire Size: DC Power Connection | 4.5?5.0 in?lb (0.50?0.56 N?m) |
| Wire Size: Ground Connection | 2.5 mm2 (14 AWG) Copper Wire Suitable for 187 °F (86 °C) Above Surrounding Ambient Temperature Outside the Enclosure, with Suitable Ring Terminal |
| Max Current | DC 510 mA; AC 1100 mA |
| Nom Current | DC 250 mA; AC 500 mA |
| Max Power Consumption | 4.6 W |
| Power Input | 24V (12?48V DC, 18…30V AC, 50/60 Hz), SELV |
| Max Inrush Current | 0.41 A |
| SFP Ports | 1 Fast Ethernet Mulitmode Preinstalled Fiber SFP Module |
| RJ45 Ports | 7 Fast Ethernet |
| Total Ports | 8 |
