1794-AENT American Rockwell AB ControlLogix PLC.

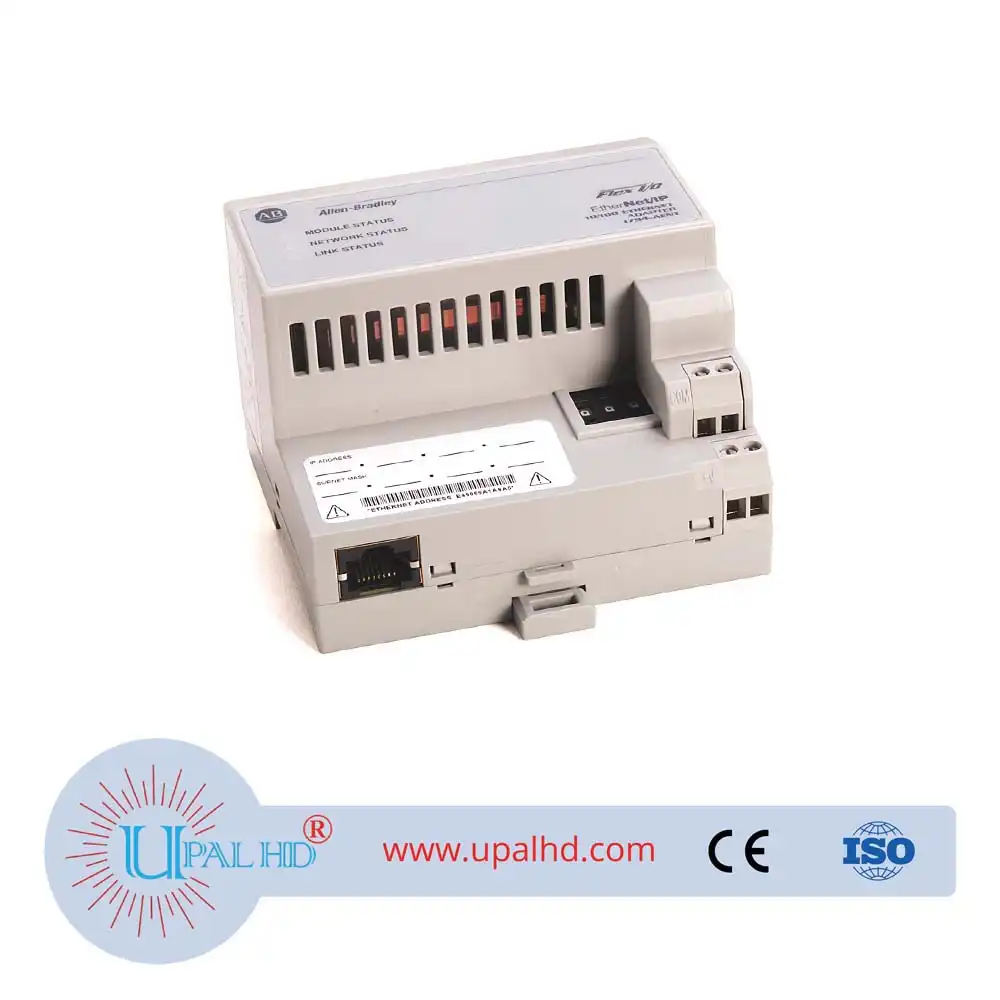

1794-AENT American Rockwell AB ControlLogix PLC.1794 Series Model No: 1794-AENT. The Allen-Bradley 1794-AENT is a Flex I/O communication adapter. This adapter is a DIN rail mounted device, which features One (1) Ethernet communication port, used for connection Flex I/O rack to a central, ethernet enabled controller. It supports 10/100 Mbps communication rate with an input voltage requirement of 19.2 – 31.2 VDC. It supports installation of up to Eight (8) Flex I/O modules.
Description
PRODUCT INFORMATION OF 1794-AENT American Rockwell AB ControlLogix PLC.
| Manufacturer | Rockwell Automation |
| Ethernet cable: | RJ45 Cat.5 |
| Indicators: | Mod Status; Network Status; Link Status |
| Data Transfer speed: | 10 to 100 Mbps |
| Supported topologies: | Linear |
| Supported Protocol: | Ethernet I/P |
| Communication Port: | One (1) RJ45 |
| Product Description: | Ethernet Adapter Module |
| Mounting: | DIN Rail |
| Brand | Allen-Bradley |
| Wire Size: | 0.34…2.5 mm2 (22…12 AWG) stranded copper wire rated at 75 °C (167 °F) or higher, 1.2 mm (3/64 in.) insulation max |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Power Consumption | 550 mA max, 440 mA max at 24V DC |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Vibration: | Tested 5 g @ 10-500Hz per IEC 68-2-6 |
| Operating Shock: | 30 g peak acceleration, 11(+1)ms pulse width |
| Power Dissipation | 7.3 W max @ 19.2V DC |
| Thermal Dissipation | 24.9 BTU/hr @ 19.2V DC |
| Part Number/Catalog No. | 1794-AENT |
| Product Type | Flex I/O Ethernet/IP Adapter |
| I/O Capacity | 8 Modules |
| Communication Rate | 10/100 Mbps |
| Input Voltage Range | 19.2 to 31.2 Volts DC |
| Nominal Input Voltage Rating | 24 Volts DC |
| Enclosure Type Rating | None (open-style) |
| Isolation Voltage | 50 Volts Continuous |
| Flexbus Current | 640 mA maximum |
| UPC | 10612598279842 |
