1794-OB32P American Rockwell AB Control Logix PLC.

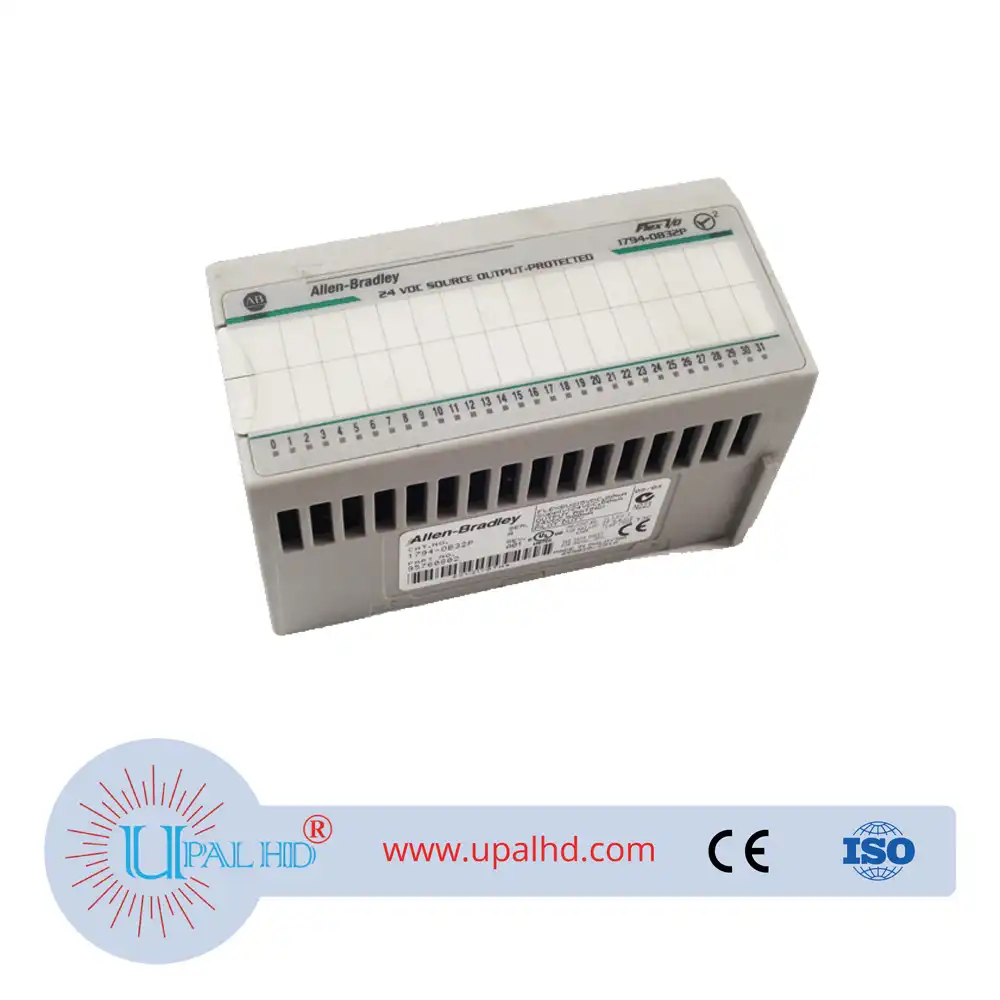

1794-OB32P American Rockwell AB Control Logix PLC.1794 Series Model No: 1794-OB32P. The 1794-OB32P is an Allen-Bradley Flex I/O electronically protected discrete output module. This module comes with individual channel protection, having thirty-two (32) 24 Volt DC sourcing output channels. It is compatible for use with the 1794-TB32 and 1794-TB32S terminal base units. It has an output current rating of 14.0 Amperes per module, with 6 Amperes total for channels 0…15 and 8 Amperes total for channels 16-31.
Description
PRODUCT INFORMATION OF 1794-OB32P American Rockwell AB Control Logix PLC.
| Manufacturer | Rockwell Automation |
| Operating Temperature: | 0 to 55 C (32 to 131 F) |
| Wire Size: | Determined by installed terminal base |
| Mounting: | DIN Rail |
| Enclosure | Open-type |
| ON state Voltage, nom: | 24VDC |
| ON state Voltage, max. | 31.2VDC |
| ON state Voltage, min: | 10VDC |
| Terminal base: | 1794-TB32 and 1794-TB32S |
| Output circuit type: | Sourcing |
| Number of Outputs: | Thirty-Two (32) Channels |
| Product Description: | Flex IO DC Output Module |
| Storage Temperature: | -40 to 85 C (-40 to 185 F) |
| Brand | Allen-Bradley |
| Vibration: | 5g @ 10 to 500 Hz |
| Part Number/Catalog No. | 1794-OB32P |
| Output Current Rating | 14.0 A max per module (6 A total for channels 0…15; 8 A total for channels 16…31) |
| Operating Shock: | 30 g |
| Product Type | Flex I/O Digital DC Output Module |
| Outputs | 32 Sourcing Current |
| On-state Voltage nom. | 24V DC |
| On-state Current max. | 500mA per Channel |
| On-state Voltage Drop max. | 0.5V DC |
| Off-state Leakage Current max. | 0.5mA |
| Isolation Voltage | 50V Continuous |
| Flexbus Current | 80mA @ 5V DC |
| Power Dissipation | 5.3W @ 31.2V DC max. |
| Thermal Dissipation | 18.1 BTU/hr. @ 31.2V DC max. |
| UPC | 10612598286031 |
