1794-OF8IH Rockwell AB ControlLogix PLC.

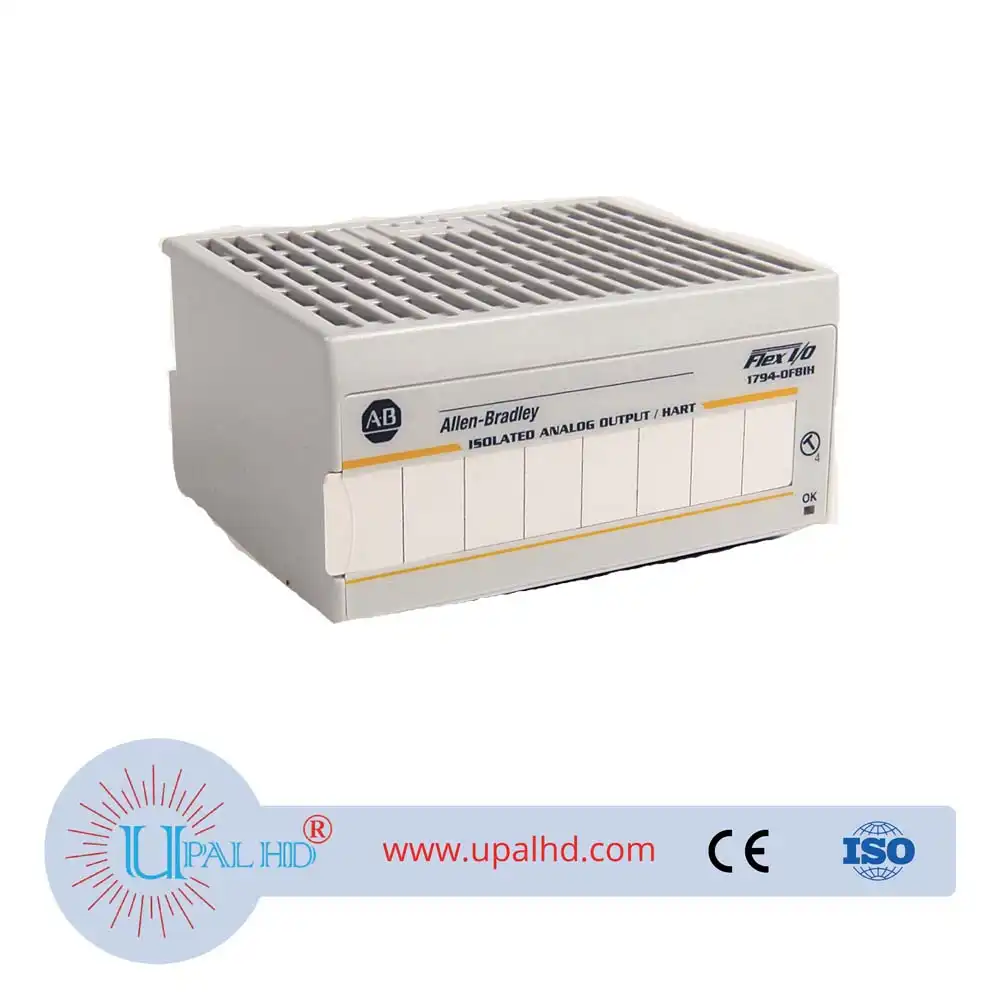

1794-OF8IH Rockwell AB ControlLogix PLC.1794 Series Model No: 1794-OF8IH. The Allen-Bradley 1794-OF8IH is a Flex I/O module. This module is an Isolated Output HART Analog Module that is part of the 1794 Flex I/O system. This module has Eight (8) 8 single-ended, isolated outputs, configurable for 0-20 mA and 4-20 mA with 16-bit resolution.
Description
PRODUCT INFORMATION OF 1794-OF8IH Rockwell AB ControlLogix PLC.
| No. of Outputs: | Eight (8) Isolated outputs |
| Thermal dissipation, max: | 17.06 BTU/hr @ 24V DC |
| Power dissipation, max: | 5.0 W @ 24V DC |
| Flexbus current: | 80 mA @ 5V DC |
| Calibration: | Factory Calibrated |
| Terminal Base: | 1794-TB3, 1794-TB3S |
| Data format: | Engineering Units; Percent of Full Scale; RAW/Proportional Count |
| Conversion rate: | 10 ms |
| Conversion method: | 16-bits digital to analog converter |
| Module Resolution: | 16-Bit; Unipolar |
| Output signals: | 0-20 mA; 4-20 mA |
| Brand | Allen-Bradley |
| Product Description: | Flex IO Isolated Analog Output HART Module |
| Manufacturer: | Rockwell Automation |
| Part Number | 1794-OF8IH |
| Series | Flex I/O 1794 |
| Product type | Output module |
| Outputs | 8 |
| Pass-through message support | Yes |
| Output current | 0 to 20 mA or 4 to 20 mA |
| Data conversion rate | 10 milliseconds |
| Operating temperature | 32 to 131 degrees Fahrenheit |
