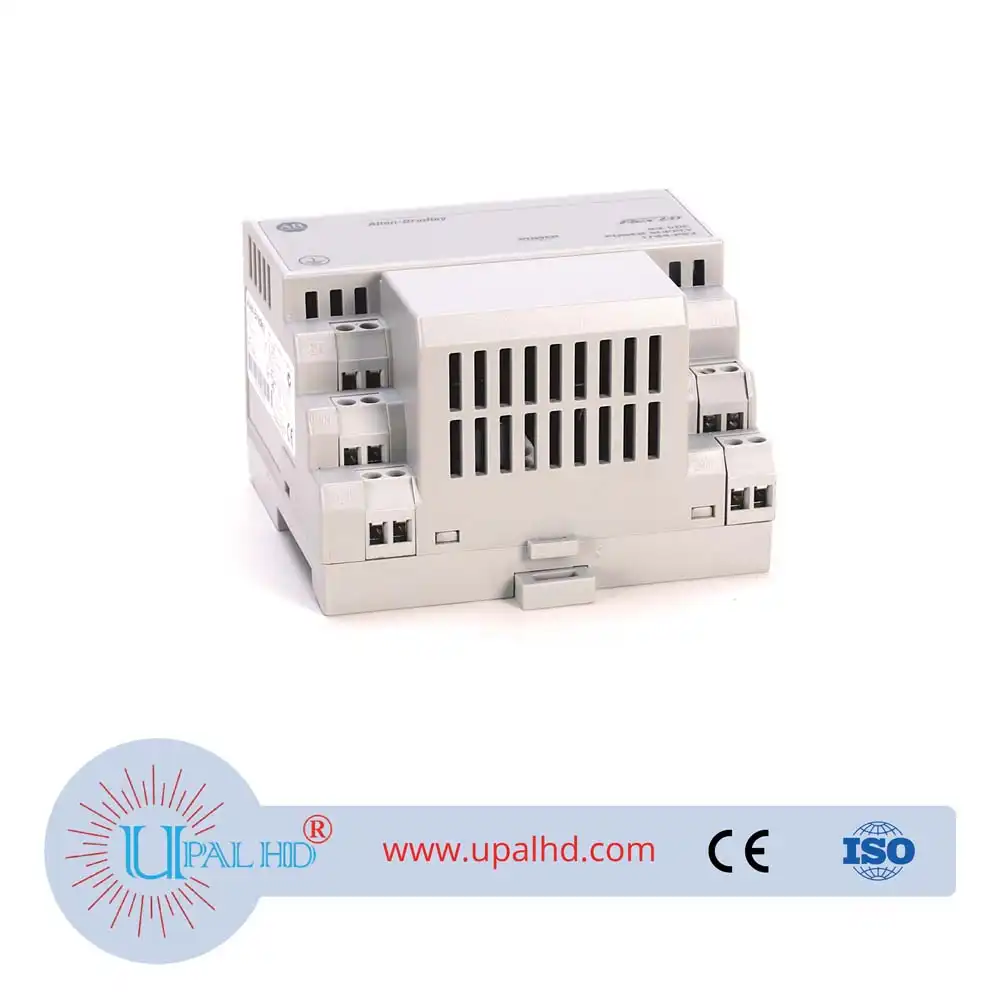

1794-PS3 Rockwell Rockwell AB IO power module.
1794-PS3 Rockwell Rockwell AB IO power module.1794 Series Model No: 1794-PS3. The Allen-Bradley 1794-PS3 is a Flex I/O power supply. This power supply has a nominal supply voltage of 120V AC, 50/60 Hz; 1.7 A max. and 230V AC, 50/60 Hz; 1.1 A max with a voltage range of 85-264VAC, 47-63 Hz. This power supply module is used to provide power to the Flex I/O modules and adapters. It has a maximum input current of 1.9 Amperes and able to withstand an inrush current of 40 A typical, 1 AC cycle @ Vin 265V AC, 55 °C.
Description
PRODUCT INFORMATION OF 1794-PS3 Rockwell Rockwell AB IO power module.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Power dissipation, max: | 12 W |
| Overcurrent protection: | 3.2 A |
| Output surge: | Sufficient to drive 10 adapters |
| Output power: | 72 Watts |
| Maximum input current: | 1.9 A |
| Nominal input voltage: | 120V AC, 50/60 Hz; 1.7 A max. 230V AC, 50/60 Hz; 1.1 A max. |
| Input Frequency range: | 47-63 Hz |
| Input Voltage range: | 85-264VAC |
| Product Description: | Flex I/O Power Supply |
| Product family: | Flex I/O system |
| Thermal Dissipation | 41.0 BTU/hr |
| Part Number/Catalog No. | 1794-PS3 |
| Output Current | 3 A (horizontal mounting); 2.8 A all other mountings |
| Product Type | Flex I/O DC Power Supply Module |
| Supply Voltage nom. | 230V AC, 47-63Hz, 1.1A max. |
| Voltage Range | 85-265V AC |
| Input Current | 1.9A max. |
| Output Voltage nom. | 24V DC |
| Output Voltage Range | 20.4-27.6V DC |
| Minimum Load | 50mA |
| Overvoltage Protection | 35V DC |
| Isolation Voltage | 2500V DC |
| UPC | 10612598206626 |
