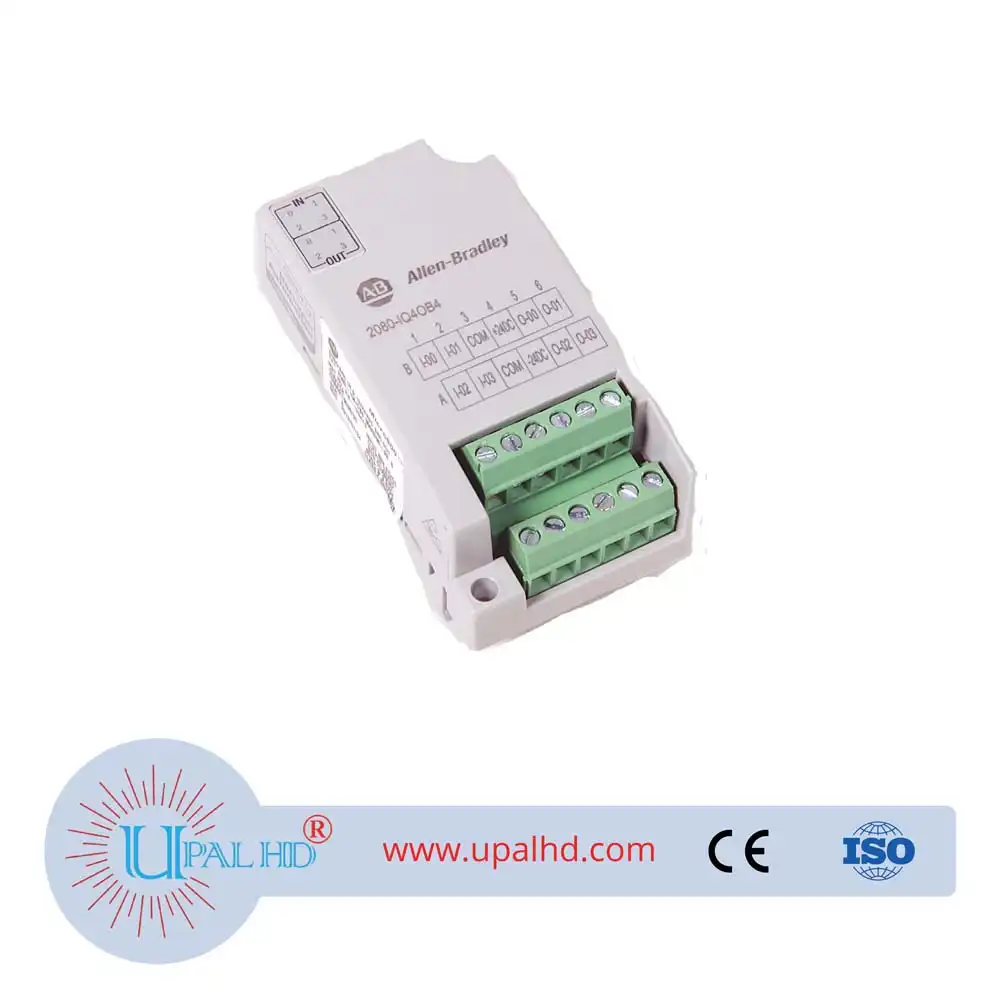

2080-IQ4OB4 Rockwell AB Micro800 plug-in module new original.
2080-IQ4OB4 Rockwell AB Micro800 plug-in module new original.Micro 800 Series Model No: 2080-IQ4OB4. The Allen-Bradley 2080-IQ4OB4 input and output module is a digital input and output module from the Micro 800 PLC series. It is a plug-in type of input and output module that is made to be plugged into a programmable logic controller or PLC to provide it with additional input and output points. The 2080-IQ4OB4 input and output module is approved for safe operation in hazardous locations in North America. This module has no built-in enclosure. The operating temperature for the 2080-IQ4OB4 input and output module is -4 to 149 degrees Fahrenheit and the storage temperature is -40 to 185 degrees Fahrenheit.
Description
PRODUCT INFORMATION OF 2080-IQ4OB4 Rockwell AB Micro800 plug-in module new original.
| Number of digital inputs | 4 |
| Number of digital outputs | 4 |
| Digital inputs configurable | No |
| Digital outputs configurable | No |
| Type of voltage (input voltage) | AC/DC |
| Type of output voltage | DC |
| Type of digital output | Transistor |
| Type of electric connection | Screw connection |
| Status indicator | 8 yellow |
| On-state voltage, output | 24V DC nominal |
| On-state current, output | Steady state: 0.5 A maximum |
| Number of I/O | 4 channel inputs/source outputs combination |
| ON-state current, max | 5 mA |
| On-state current, nom | 3.0 mA @ 24V DC |
| Wire size | 0.2… 2.5 mm2 (24…12 AWG) solid or stranded copper wire rated @ 90 °C (194 °F), or greater, insulation maximum |
| Isolation voltage | 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane |
| Redundancy | No |
| SIL according to IEC 61508 | None |
| Power supply voltage | 10.8V DC, minimum, 30V DC, maximum |
