2080-LC20-20QWBR American Rockwell AB Micro820 controller.

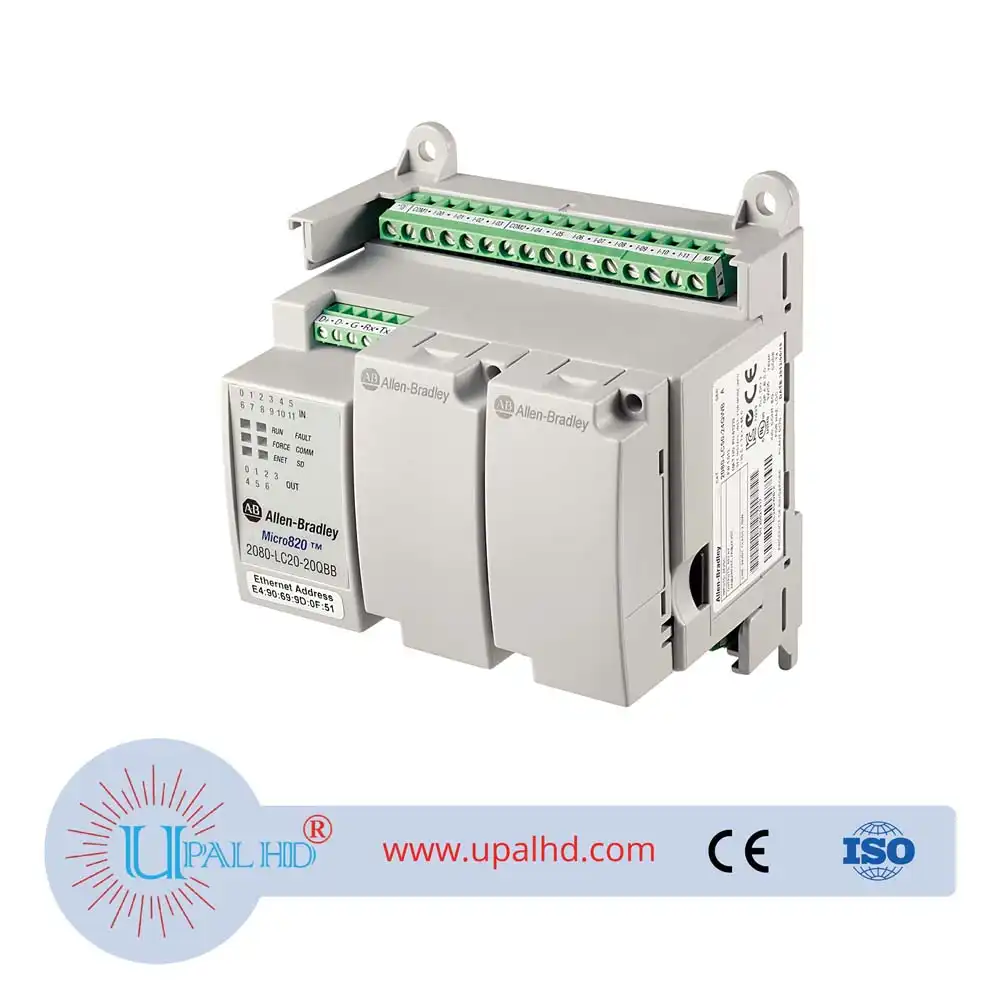

2080-LC20-20QWBR American Rockwell AB Micro820 controller. Micro 800 Series Model No: 2080-LC20-20QWBR. This Micro 820 Controller’s specifications include 12 24V DC Inputs, 4 configurable analog input with thermistor voltage reference out, 7 Relay Output, 1 Analog Output, Embedded Ethernet Port and RS-232/485 non-isolated Serial port, Embedded RTC, MicroSD Card support, 2 Plug-In slots and RTB terminals.
Description
PRODUCT INFORMATION OF 2080-LC20-20QWBR American Rockwell AB Micro820 controller.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Part Number/Catalog No. | 2080-LC20-20QWBR |
| Product Type | Programmable Controller |
| Inputs | 12(24V DC) |
| Outputs | 7(Relay); 1 (Analog Out) |
| Dimensions HxWxD | 3.54 x 4.09 x 2.95 in. |
| Power Input | 24V DC |
| Power Dissipation | 6 W |
| Power Supply Voltage Range | 20.4-26.4V DC, Class 2 |
| Enclosure | Meets IP20 |
| Non-Isolated DC Input On-state Voltage Range | 9.8-26.4V DC |
| Relay Output Voltage min. | 5V DC/ AC |
| Relay Output Voltage max. | 250V AC |
| Pilot Duty Rating | C300, R150 |
| Terminal Block | Removable |
| UPC | 885630484662 |
