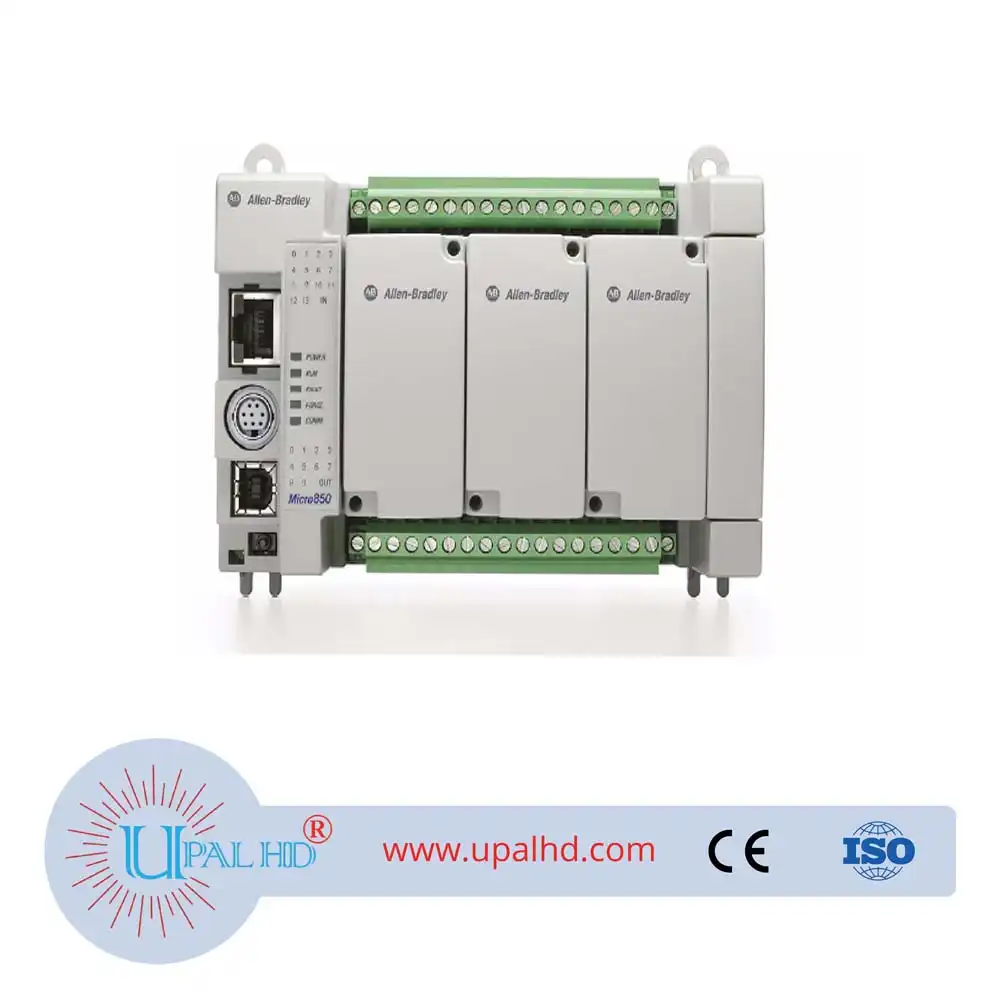

2080-LC50-24QWB American AB Micro850 PLC controller.
2080-LC50-24QWB American AB Micro850 PLC controller. Micro 800 Series Model No: 2080-LC50-24QWB. The 2080-LC50-24QWB is a Micro 850 Programmable Logic Controller (PLC). This controller comes with embedded 24 Point I/O channels specifically, eight (8) high-speed 24 Volt and six (6) standard 24 Volt inputs, both input types supporting sink/source configuration and 24 Volt AC as well. It also has ten (10) relay outputs and four (4) high-speed counters. It has an embedded 24 Volt DC power supply and USB 2.0 non-isolated port and one (1) RJ-45 that supports Ethernet /IP Class 3, and Modbus TCP/IP at transmission rates of 10/100 Mbps.
Description
PRODUCT INFORMATION OF 2080-LC50-24QWB American AB Micro850 PLC controller.
| Manufacturer | Rockwell Automation |
| Brand | Allen-Bradley |
| Data | 20K Bytes |
| No. of Steps / Instructions | 10K Steps |
| Programming language | Ladder; Function Block; Structured Text |
| Maximum I/O supported | 132 I/O |
| Expansion Slots | Three (3) |
| Input voltage | 24VDC |
| Supported protocols | Ethernet I/P; Modbus TCP/IP |
| Communication ports | One (1) USB; One (1) RJ45 |
| High-Speed counter (HSC) | 4 HSC inputs |
| Number of output | Ten (10) Relay outputs |
| Number of inputs | Fourteen (14) 24V inputs |
| Series | Micro 850 |
| Part Number/Catalog No. | 2080-LC50-24QWB |
| Product Type | Programmable Logic Controller (PLC) |
| Inputs | 14 |
| Input Type | 12/24V |
| Outputs | 10 |
| Output Type | Relay |
| Motion Axis | N/A |
| HSC | 4 HSC |
| Base Plug-in Slots | 3 |
| Base 100KHz HSC max. | 4 HSC |
| Dimensions HxWxD | 90x145x80 mm |
| Expansion I/O Modules | Upt to 4 Modules |
| Max. Digital I/O | 132 |
