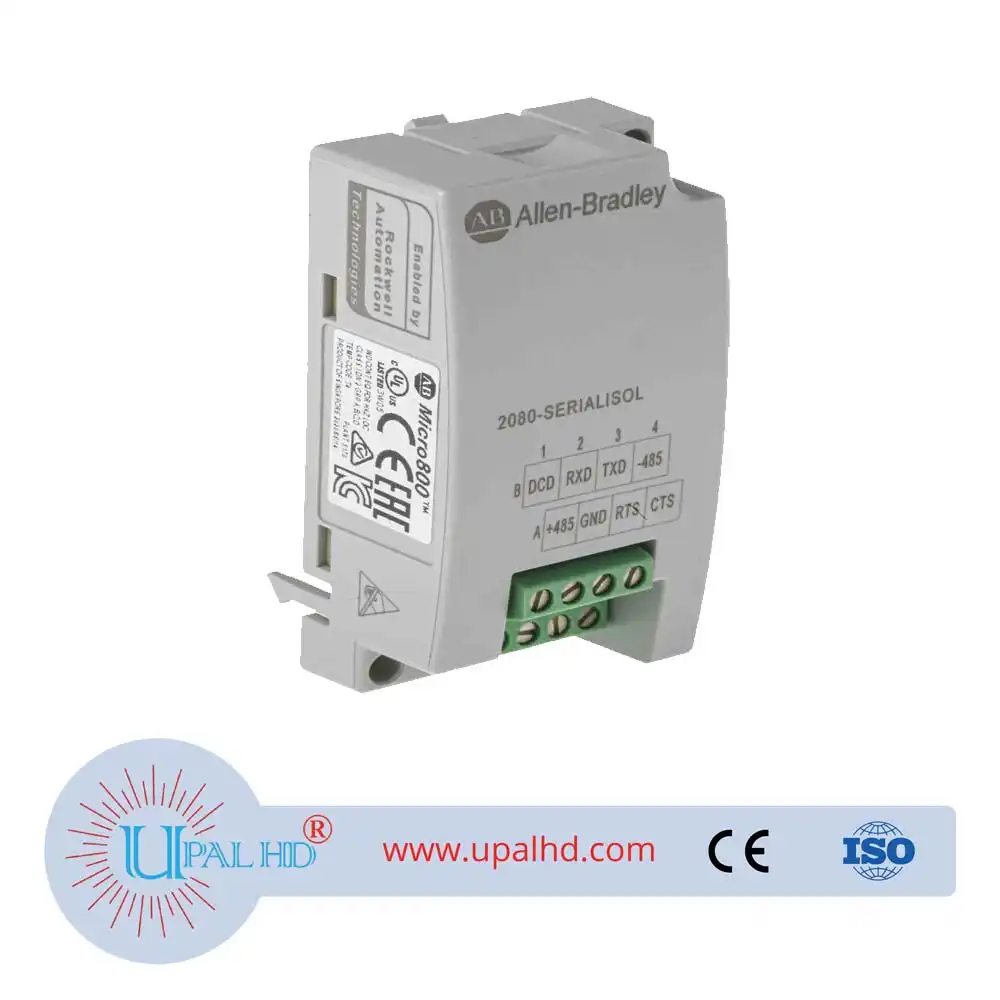

2080-SERIALISOL Rockwell AB Micro800 plug-in module.
2080-SERIALISOL Rockwell AB Micro800 plug-in module. Micro 800 Series Model No: 2080-SERIALISOL. The 2080-SERIALISOL module is an Allen-Bradley Micro 800 series plug in module with isolated serial ports. Its isolated serial ports are RS232/485 types of serial ports. The 2080-SERIALISOL isolated serial port module can be used in non-hazardous locations and in hazardous locations that are rated as Class I, Division 2, Groups A, B, C, and D types of hazardous locations. This module needs to be protected from electrostatic discharge. The 2080-SERIALISOL isolated serial port module is easy to plug into a host controller with screws and it will not increase the footprint of the controller.
Description
PRODUCT INFORMATION OF 2080-SERIALISOL Rockwell AB Micro800 plug-in module.
| Suitable for safety functions | No |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for DeviceNet | Yes |
| Supporting protocol for other bus systems | No |
| Redundancy | No |
| IO link master | No |
| Supporting protocol for DeviceNet Safety | Yes |
| Supporting protocol for EtherNet/IP | No |
| Transmission rate | 19.2 kBps |
| Data transmission type | Serial |
| Supporting protocol | Modbus RTU (RS232 and RS485) |
| Wire size | 0.14…1.5 mm² (26…16 AWG) solid copper wire or, 0.14…1.0 mm² (22…18 AWG) stranded copper wire, Rated at 90 °C (194 °F) insulation max |
| Supporting protocol for LON | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for SUCONET | No |
| With potential separation | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| SIL according to IEC 61508 | None |
| Cable length using RS485, Max | 1000 |
| Isolated voltage | 500V AC |
| Terminal screw torque | 0.22…0.25 Nm (1.95…2.21 lb-in) (using a 2.5 mm (0.10 in.) flat-blade screwdriver) |
