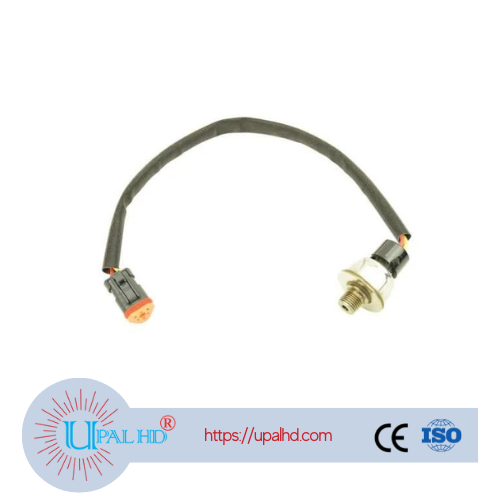

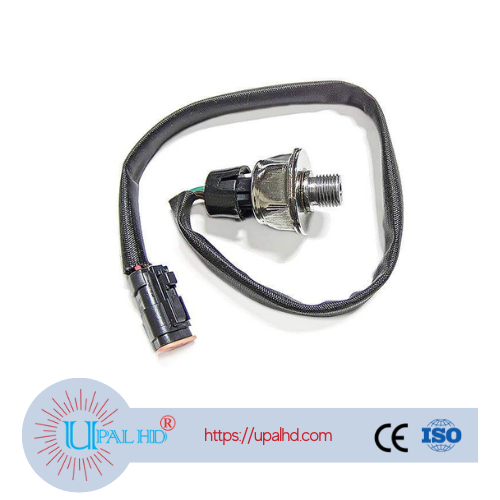

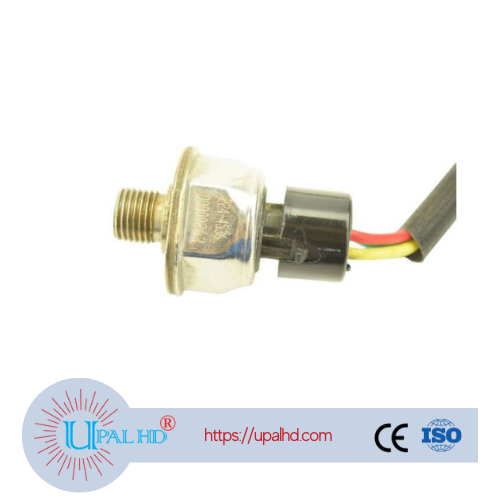

2244536 | CATERPILLAR 3126/C7/3406E/C15 PRESSURE SENSOR

Function: Injection Actuation
Application: 3126/C73126 Engine Specifications:
Year: 1995-2001
Liter: 7.2
CID: 442
Cylinder: L 6
Bore/Stroke:4.3307-4.3327″,5.0000″
Compression Ratio:16.5:2
Firing Order:1-5-3-6-2-4
1WM MARINE, 953 TRUCK LOADER SAME FAMILY AS 3116Tune-Up Specifications:
Intake Valve Lash: .015″ Cold
Exhaust Valve Lash:.025″ Cold

3126 Engine Specifications:
Year: 1997-2005
Liter: 7.2
CID: 442
Cylinder: L 6
Bore/Stroke:4.3307-4.3327″,5.0000″
Compression Ratio: 17.0:1
Firing Order:1-5-3-6-2-4
DIESEL, 3 VALVES PER CYL, SERIAL #8YL3126B

Tune-Up Specifications:
Ignition Timing:8-10° BTDC
Intake Valve Lash:.012-.018″ Cold
Exhaust Valve Lash:.022-.028″ Cold
CATERPILLAR
Model 3406E
Year 1993-2005
VIN E
Liter 14.6
CID 893
Engine Code 3406E
Cylinder L 6
Bore/Stroke 5.400-5.402″ (137.16-137.211 MM)6.500″ (165.1 MM)
Compression Ratio: 14.5:1
Firing Order 1-5-3-6-2-4
Comments DIESEL 3406E TRUCK, OHC, 24 VALVE, 5DS-1LW

Tune-Up Specs:
Compression Ratio: 174.5:1
Firing Order: 1-5-3-6-2-4
Intake Valve Lash: .012-.018″ cold
Exhaust Valve Lash: .027-.033″ cold

CATERPILLAR
Model C15
Year 1999-2007
Liter 15.2
CID 928
Engine Code C15
Cylinder L 6
Bore/Stroke 5.4000-5.4020″ (more…)
