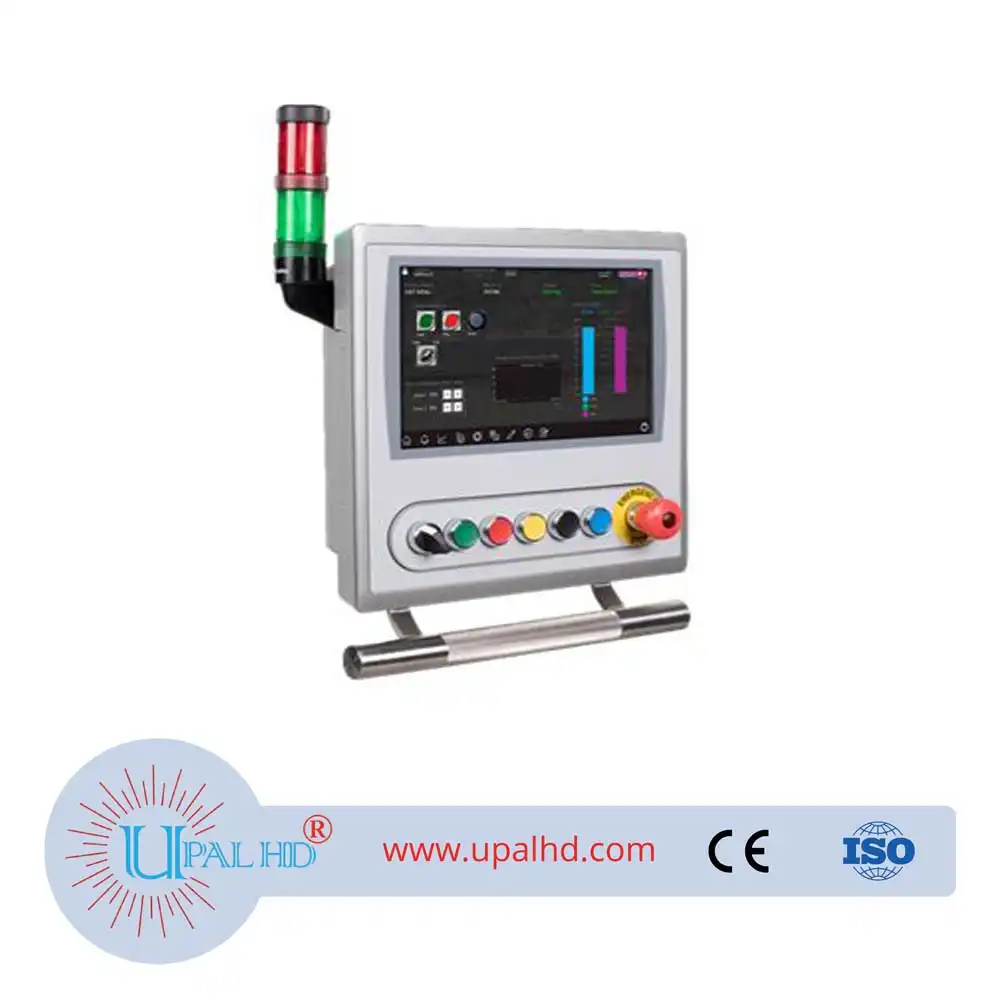

2711P-T12W22D9P-BM015 Rockwell AB PanelView Plus Touch Screen.
2711P-T12W22D9P-BM015 Rockwell AB PanelView Plus Touch Screen.Touch screen Model No: 2711P-T12W22D9P-BM015.2711 ArmorView Plus 7 Graphic Terminal, Touch Screen, 12 Inch, Wide aspect ratio Color, Ethernet DLR, 24V DC, Windows CE OS License Pro, Performance Model, On-Machine, Brandless3 Position Selector switch at Position 0, Momentary Push Button’s at Position 1, 2, 3, 4 and 5, and ESTOP w/ Legend Button at Position 6 with Ethernet IO.
Description
PRODUCT INFORMATION OF 2711P-T12W22D9P-BM015 Rockwell AB PanelView Plus Touch Screen.
| Built-in depth | 166.6 mm |
| Degree of protection (IP), front side | IP66 |
| Height of the front | 345 mm |
| Number of colours of the display | 262144 |
| Number of HW-interfaces industrial Ethernet | 1 |
| Number of HW-interfaces RS-232 | 0 |
| Number of HW-interfaces USB | 2 |
| Operation temperature | 0…55 °C |
| Rail mounting possible | no |
| Screen size diagonal | 12.1 inch |
| Supply voltage DC | 24…24 V |
| Supporting protocol for DeviceNet | no |
| Supporting protocol for EtherNet/IP | yes |
| Type of display | TFT |
| Voltage type of supply voltage | DC |
| Wall mounting/direct mounting | yes |
| Width of the front | 345 mm |
| With alpha numeric keyboard | no |
| With colour display | yes |
| With numeric keyboard | no |
| With SW interfaces | yes |
