2711P-T7C4A8 Rockwell AB PanelView Plus touch screen.

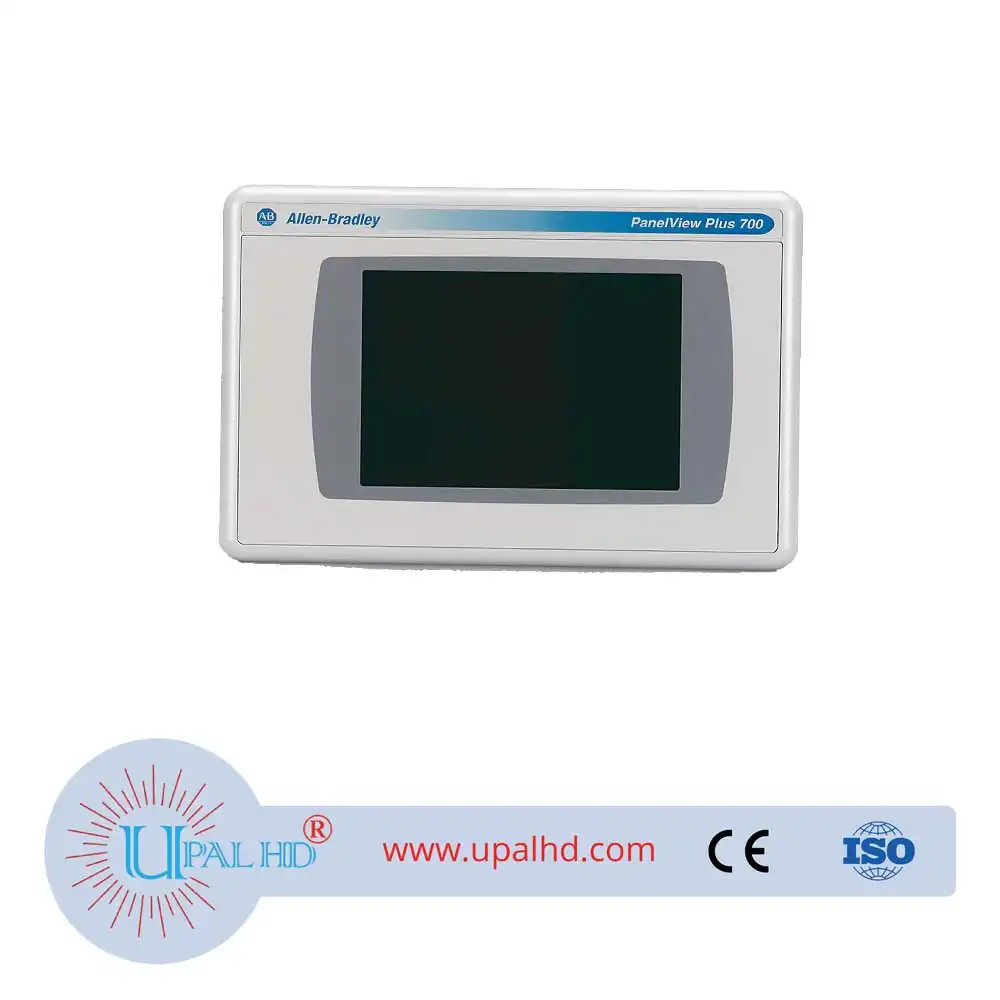

2711P-T7C4A8 Rockwell AB PanelView Plus touch screen.Touch screen Model No: 2711P-T7C4A8.The 2711P-T7C4A8 is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 700 operator terminal which belongs to the larger group of PanelView Plus 6 terminals. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 85-264 VAC with 6.5-inch Color active matrix, thin-film transistor (TFT) display. It has an embedded Touchscreen operator interface and provided with multiple communication interfaces such as, One (1) Ethernet, One (1) RS-232 and Two (2) USB ports.
Description
PRODUCT INFORMATION OF 2711P-T7C4A8 Rockwell AB PanelView Plus touch screen.
| Brand | Allen-Bradley |
| Power Consumption: | 160VA max, 65VA typical |
| Power Supply Input Voltage range: | 100…240V AC, 50…60 Hz |
| Communication ports: | Ethernet, RS-232, DH485, 2 USB host |
| Battery (real-time clock): | Battery-backed clock timestamps critical data, accuracy is ±2 minutes per month Battery life: 4 year min at 25 °C (77 °F) Field-replaceable: cat. no. 2711P-RY2032 or equivalent CR2032 coin-cell lithium battery |
| Terminal Memory: | 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory) |
| Touch interface: | 8-wire analog resistive Actuation: 1 million presses; operating force: 10…110 g |
| Resolution: | 640 x 480, 18-bit color graphics |
| Display Area: | 132 x 99 mm (5.2 x 3.9 in.) |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch |
| Product Family: | PanelView Plus 6 Graphic Terminals |
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Part Number/Catalog No. | 2711P-T7C4A8 |
| Display Size | 5.5 in. |
| Product Line | Panelview 6 Plus |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 100 to 240 Volts AC |
| Memory | 512 MB RAM |
| Backlight | 2711P-RL7C2 |
| Communication Cable | 2711-NC13 |
| Shipping Weight | 8 pounds |
| Shipping Dimensions | 14 x 11 x 8 inches |
| Series | Series A and Series B |
| UPC | 10612598876614 |
