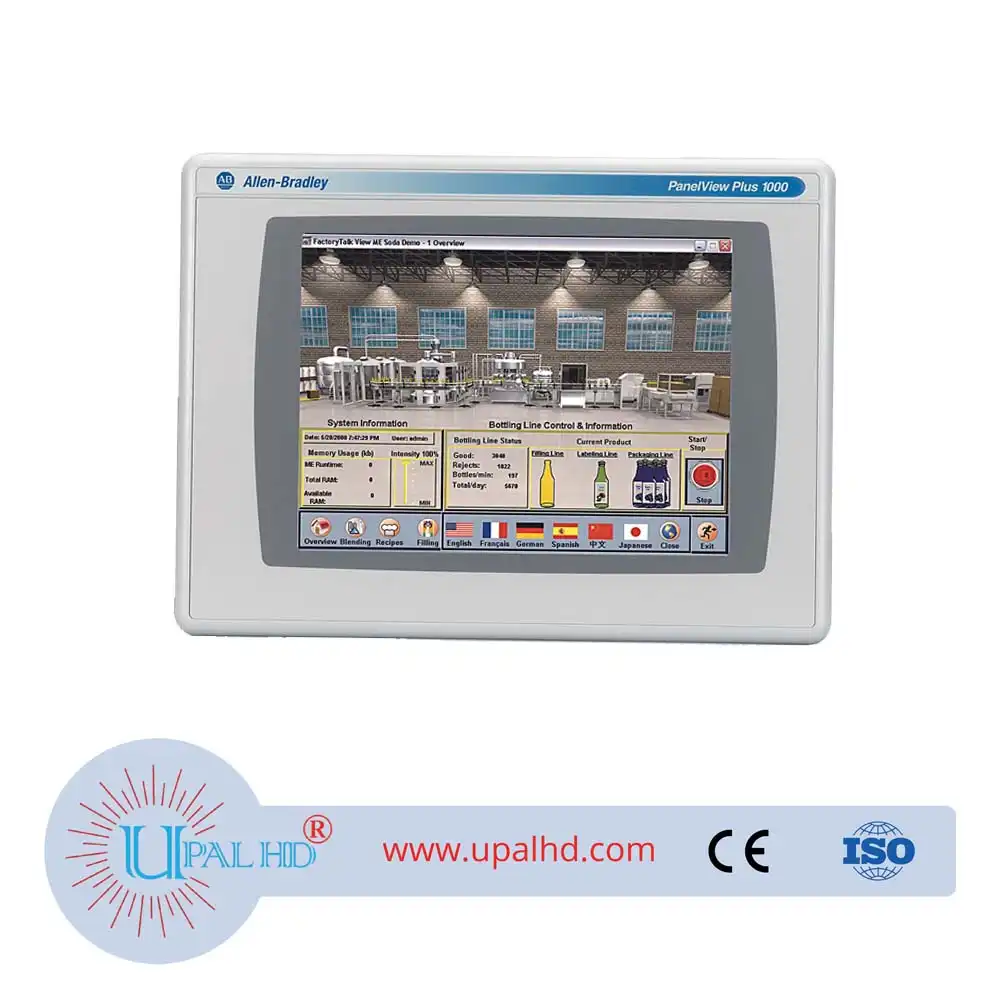

2711PC-T10C4D8 Rockwell AB Panel View Plus touch screen.
2711PC-T10C4D8 Rockwell AB Panel View Plus touch screen.Touch screen Model No: 2711PC-T10C4D8. The Allen-Bradley 2711PC-T10C4D8 is a Panelview Plus 6 1000 Operator Terminal. This operator terminal is powered by an external 18-32VDC supply voltage and has a 10.4-inch colored display with embedded Ethernet, RS232, USB communication ports. This operator terminal has a touchscreen input interface.
Description
PRODUCT INFORMATION OF 2711PC-T10C4D8 Rockwell AB Panel View Plus touch screen.
| Product Family: | PanelView Plus 6 Compact Terminals |
| Input Voltage range: | 18-32VDC |
| Integrated ports: | Ethernet, RS-232, 2 USB host |
| Internal memory: | 512MB Flash Memory / 512 MB Random Access Memory |
| Touch: | Analog Resistive |
| Resolution: | 640 x 480, 18-bit color graphics |
| Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
| Backlight: | CCFL, 50,000 hours min at 25 ° C (77 °F), field replaceable |
| Lifecycle status: | End of life |
| Display Type: | Color active-matrix TFT |
| Operator Input: | Touch |
| Product Type: | PanelView Plus 6 600 Compact Terminals |
| Manufacturer: | Rockwell Automation |
| Brand | Allen-Bradley |
| Display Size | 10.4 in. inches |
| Part Number/Catalog No. | 2711PC-T10C4D8 |
| Product Line | PanelView Plus 6 Compact |
| Display Color | Color |
| Input Type | Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 24 Volts DC |
| Memory | 512 MB nonvolatile memory and 512 MB RAM |
| Enclosure Type | NEMA/UL Type 12, 13, 4X (indoor use only), and IEC IP54, IP65 |
| Dimensions | 9.77 x 12.97 x 2.18 inches |
