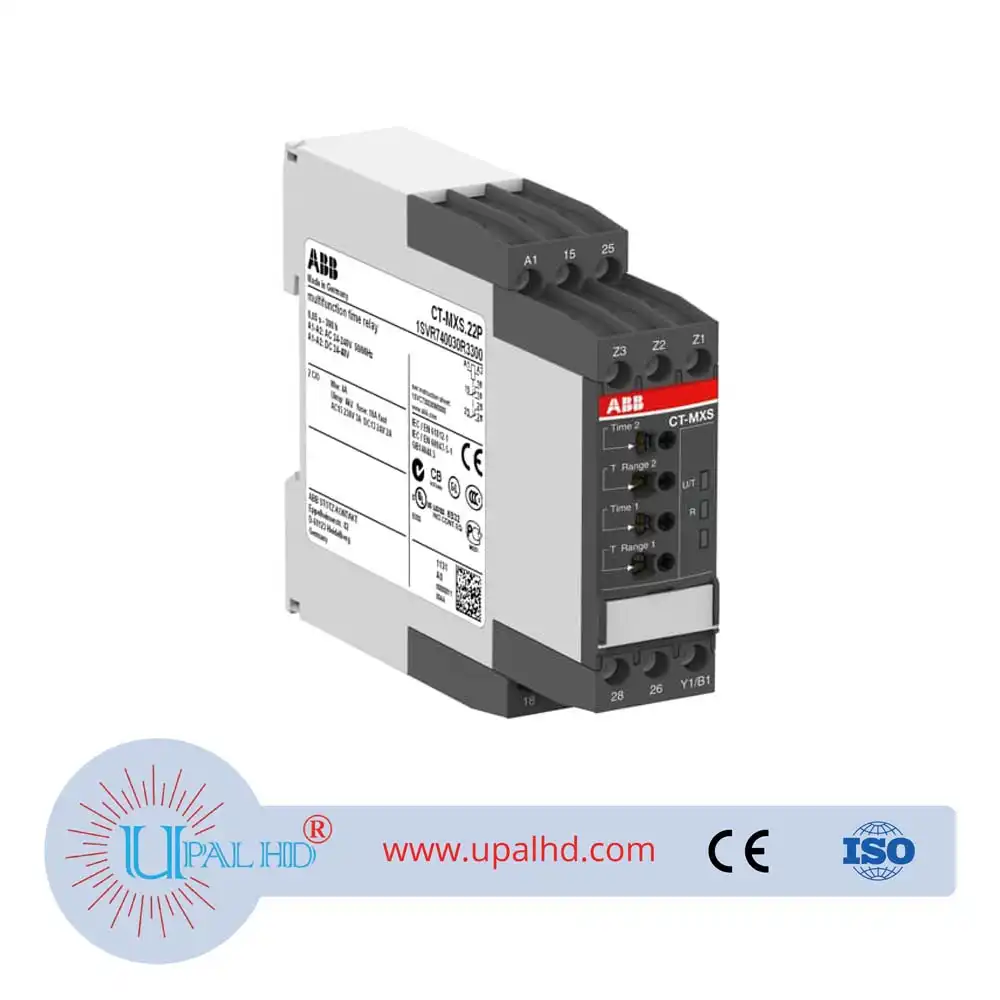

ABB official genuine electronic time relay monitor CT-MXS.22P,24-240V.

PRODUCT INFORMATION OF ABB official genuine electronic time relay monitor CT-MXS.22P,24-240V.

General Information

• Extended Product Type:

  CT-MXS.22P

• Product ID:

  1SVR740030R3300

• EAN:

  4016779851633

• Catalog Description:

  CT-MXS.22P Time relay, multifunction 2c/o, 24-48VDC, 24-240VAC

• Long Description:

  The CT-MXS.22P is a multifunction electronic time relay from the CT-S timer range. It provides 5 timing functions with 2×10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 – 48 V DC / 24 – 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering. The CT-MXS.22P offers the possibility of connecting two remote potentiometers for the fine adjustment of the time delays. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

Classifications

• Object Classification Code:

  K

• ETIM 4:

  EC001439 – Timer relay

• ETIM 5:

  EC001439 – Timer relay

• ETIM 6:

  EC001439 – Timer relay

• ETIM 7:

  EC001439 – Timer relay

• ETIM 8:

  EC001439 – Timer relay

• eClass:

  V11.0 : 27371605

• UNSPSC:

  39121519
