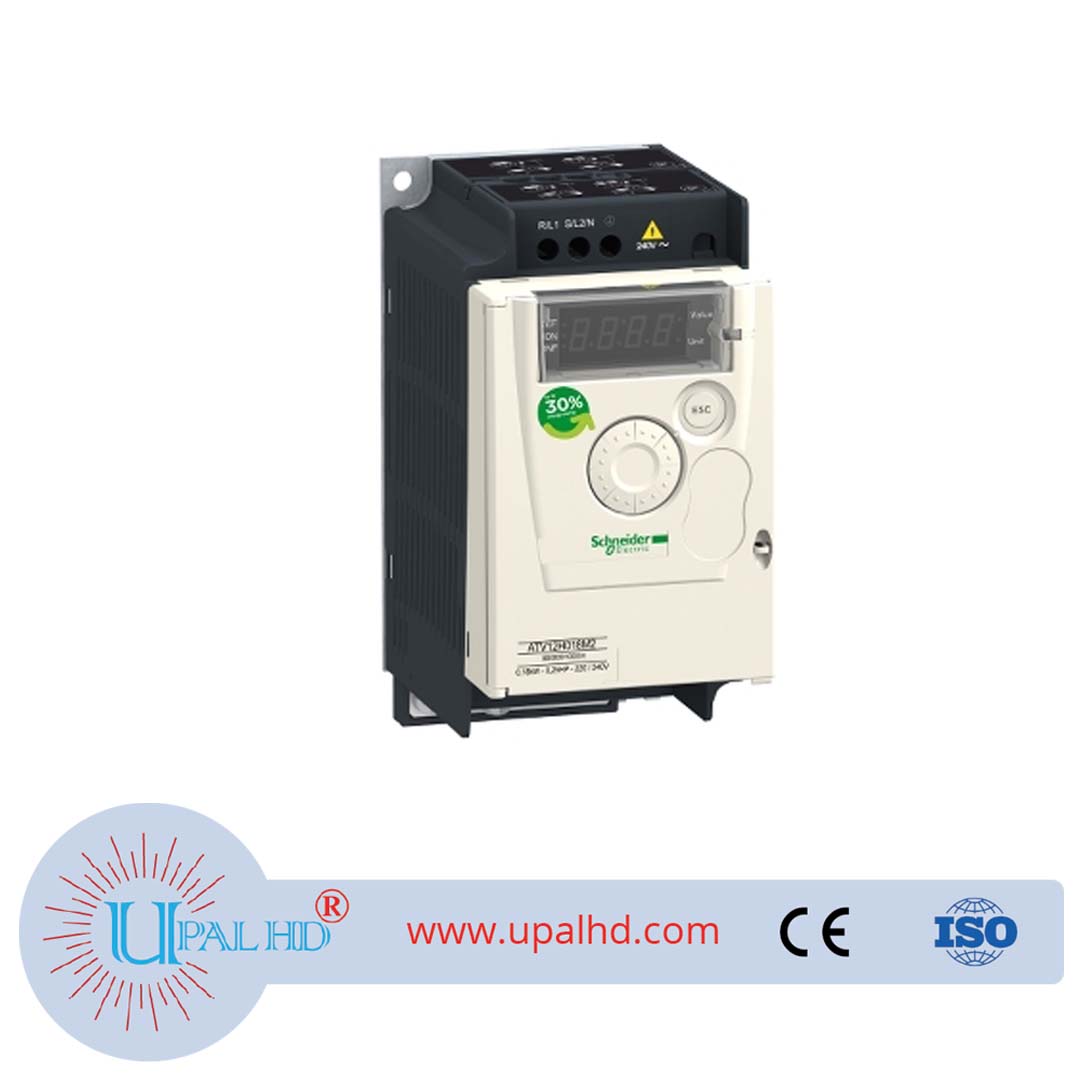

ATV12H037M2 Schneider small power inverter 0.37KW single-phase 220V Schneider Inverter Model Number: ATV12H037M2 Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines.
It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps,
Description
PRODUCT INFORMATION OF ATV12H037M2 Schneider small power inverter 0.37KW single-phase 220V
| range of product | Altivar 12 |
|---|---|
| product or component type | Variable speed drive |
| product specific application | Simple machine |
| mounting mode | Cabinet mount |
| communication port protocol | Modbus |
| supply frequency | 50/60 Hz +/- 5 % |
| [Us] rated supply voltage | 200…240 V – 15…10 % |
| nominal output current | 2.4 A |
| motor power hp | 0.55 hp |
| motor power kW | 0.37 kW |
| motor power hp | 0.55 hp |
| EMC filter | Integrated |
| IP degree of protection | IP20 |
| discrete input number | 4 |
| discrete output number | 2 |
| analogue input number | 1 |
| analogue output number | 1 |
| relay output number | 1 |
| physical interface | 2-wire RS 485 |
| connector type | 1 RJ45 |
| continuous output current | 2.4 A at 4 kHz |
| method of access | Server Modbus serial |
| speed drive output frequency | 0.5…400 Hz |
| speed range of ATV12H037M2 | 1…20 |
| sampling duration | 20 ms, tolerance +/- 1 ms for logic input 10 ms for analogue input |
| linearity error of ATV12H037M2 | +/- 0.3 % of maximum value for analogue input |
| frequency resolution | Analog input: converter A/D, 10 bits Display unit: 0.1 Hz |
| time constant of ATV12H037M2 | 20 ms +/- 1 ms for reference change |
| transmission rate of ATV12H037M2 | 9.6 kbit/s 19.2 kbit/s 38.4 kbit/s |
| transmission frame | RTU |
| number of addresses | 1…247 |
| data format | 8 bits, configurable odd, even or no parity |
| communication service | Read holding registers (03) 29 words Write single register (06) 29 words Write multiple registers (16) 27 words Read/write multiple registers (23) 4/4 words Read device identification (43) |
| type of polarization | No impedance |
| 4 quadrant operation possible | False |
| asynchronous motor control profile | Sensorless flux vector control Voltage/frequency ratio (V/f) Quadratic voltage/frequency ratio |
| maximum output frequency | 4 kHz |
| transient overtorque | 150…170 % of nominal motor torque depending on drive rating and type of motor |
| acceleration and deceleration ramps | Linear from 0 to 999.9 s S U |
| motor slip compensation | Adjustable Preset in factory |
| switching frequency | 2…16 kHz adjustable 4…16 kHz with derating factor |
| nominal switching frequency | 4 kHz |
| braking to standstill | By DC injection |
| brake chopper integrated | False |
| line current | 5.9 A at 100 V (heavy duty) 4.9 A at 120 V (heavy duty) |
| maximum input current | 4.9 A |
| maximum output voltage | 240 V |
| apparent power of ATV12H037M2 | 1.2 kVA at 240 V (heavy duty) |
| maximum transient current | 3.6 A during 60 s (heavy duty) 4.0 A during 2 s (heavy duty) |
| network frequency of ATV12H037M2 | 50…60 Hz |
| relative symmetric network frequency tolerance | 5 % |
| prospective line Isc | 1 kA |
| base load current at high overload | 2.4 A |
| power dissipation in W | Natural: 27.0 W |
| with safety function Safely Limited Speed (SLS) | False |
| with safety function Safe brake management (SBC/SBT) | False |
| with safety function Safe Operating Stop (SOS) | False |
| with safety function Safe Position (SP) | False |
| with safety function Safe programmable logic | False |
| with safety function Safe Speed Monitor (SSM) | False |
| with safety function Safe Stop 1 (SS1) | False |
| with sft fct Safe Stop 2 (SS2) | False |
| with safety function Safe torque off (STO) | False |
| with safety function Safely Limited Position (SLP) | False |
| with safety function Safe Direction (SDI) | False |
| protection type of ATV12H037M2 | Line supply overvoltage Line supply undervoltage Overcurrent between output phases and earth Overheating protection Short-circuit between motor phases Against input phase loss in three-phase Thermal motor protection via the drive by continuous calculation of I²t |
| tightening torque of ATV12H037M2 | 0.8 N.m |
| insulation | Electrical between power and control |
| Quantity per set | Set of 1 |
| width of ATV12H037M2 | 72 mm |
| height of ATV12H037M2 | 143 mm |
| depth of ATV12H037M2 | 121.2 mm |
| net weight of ATV12H037M2 | 0.7 kg |
| operating altitude | > 1000…2000 m with current derating 1 % per 100 m <= 1000 m without derating |
| operating position | Vertical +/- 10 degree |
| product certifications | NOM CSA C-Tick UL GOST RCM KC |
| marking | CE |
| standards | UL 508C UL 618000-5-1 EN/IEC 61800-5-1 EN/IEC 61800-3 |
| assembly style | With heat sink |
| electromagnetic compatibility | Electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 Immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3 Surge immunity test level 3 conforming to EN/IEC 61000-4-5 Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11 |
| environmental class (during operation) | Class 3C3 according to IEC 60721-3-3 Class 3S2 according to IEC 60721-3-3 |
| maximum acceleration under shock impact (during operation) | 150 m/s² at 11 ms |
| maximum acceleration under vibrational stress (during operation) | 10 m/s² at 13…200 Hz |
| maximum deflection under vibratory load (during operation) | 1.5 mm at 2…13 Hz |
| overvoltage category | Class III |
| regulation loop | Adjustable PID regulator |
| electromagnetic emission | Radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2…16 kHz shielded motor cable Conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2…12 kHz shielded motor cable <5 m Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m Conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4…12 kHz shielded motor cable <20 m Conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4…12 kHz shielded motor cable <50 m Conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4…12 kHz shielded motor cable <50 m |
| vibration resistance | 1 gn (f = 13…200 Hz) conforming to EN/IEC 60068-2-6 1.5 mm peak to peak (f = 3…13 Hz) – drive unmounted on symmetrical DIN rail – conforming to EN/IEC 60068-2-6 |
| shock resistance | 15 gn conforming to EN/IEC 60068-2-27 for 11 ms |
| relative humidity | 5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3 |
| noise level | 0 dB |
| pollution degree | 2 |
| ambient air transport temperature | -25…70 °C |
| ambient air temperature for operation | -10…40 °C without derating 40…60 °C with current derating 2.2 % per °C |
| ambient air temperature for storage | -25…70 °C |
