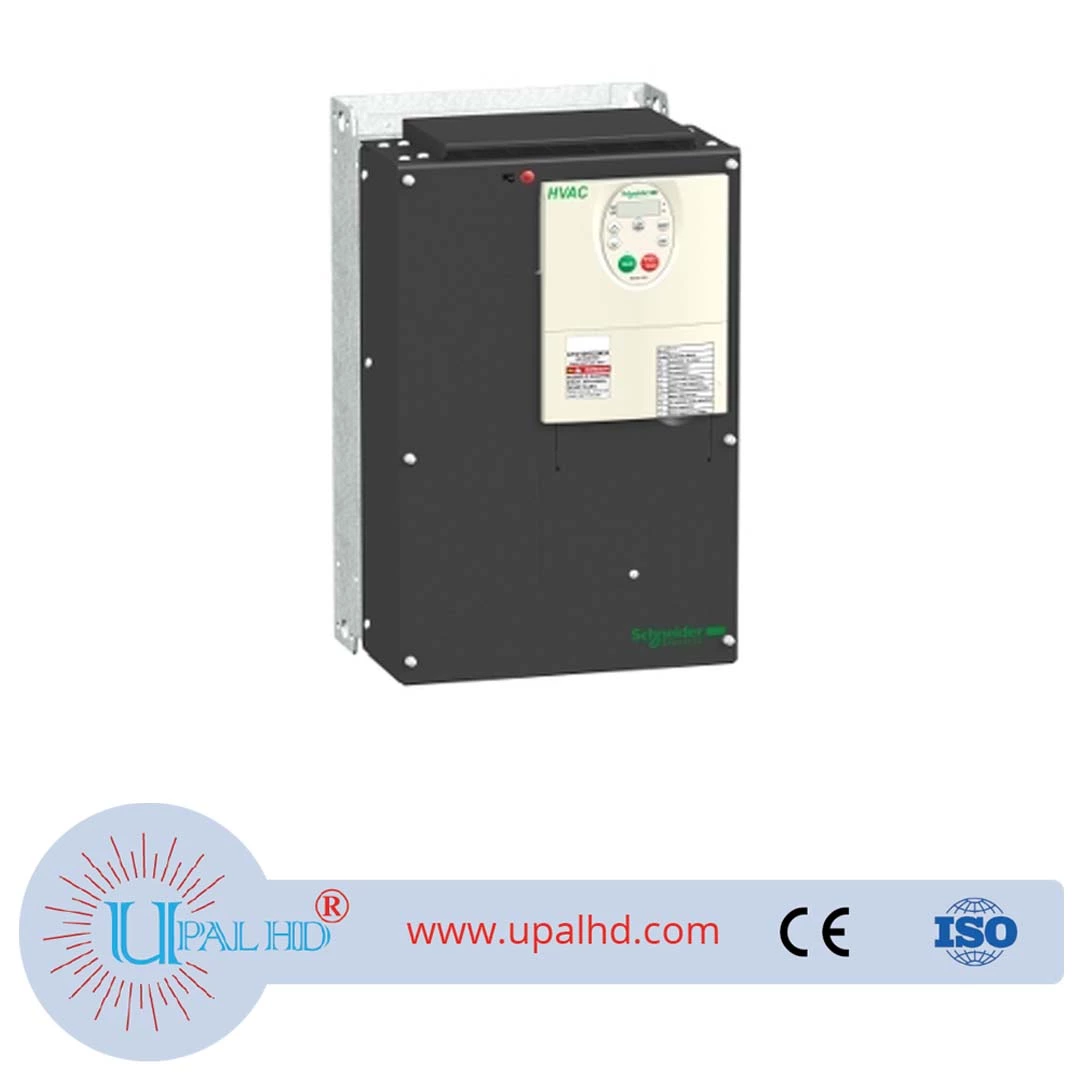

Schneider Inverter Model Number: ATV212HD22N4
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors.
Its protection index is IP21 and it has a built-in EMC filter.
It works at a rated power up to 22kW / 30hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system.
Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics.
It weighs 26.4kg and its dimensions are, 240mm wide, 420mm high, 214mm deep.
It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping.
It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified.
The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals.
It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes.
The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Description
PRODUCT INFORMATION OF SCHNEIDER ATV212HD22N4 inverter, 18.5kw ATV212 spot free shipping
| Device short name | ATV212 |
|---|---|
| Product destination | Asynchronous motors |
| Network number of phases | 3 phases |
| motor power kW | 22 kW |
| motor power hp of ATV212HD22N4 inverter | 30 hp |
| Supply voltage limits | 323…528 V |
| supply frequency | 50…60 Hz – 5…5 % |
| line current of ATV212HD22N4 inverter | 33.1 A at 480 V 41.6 A at 380 V |
| Range of product of ATV212HD22N4 inverter | Altivar 212 |
| Product or component type | Variable speed drive |
| Product specific application | Pumps and fans in HVAC |
| Communication port protocol | Modbus LonWorks APOGEE FLN BACnet METASYS N2 |
| [Us] rated supply voltage | 380…480 V – 15…10 % |
| EMC filter of ATV212HD22N4 inverter | Class C2 EMC filter integrated |
| IP degree of protection | IP21 |
| apparent power | 33.2 kVA at 380 V |
| continuous output current | 43.5 A at 380 V 43.5 A at 460 V |
| maximum transient current | 47.9 A for 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| speed range | 1…10 |
| speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| local signalling | 1 LED (red) for DC bus energized |
| Output voltage | <= power supply voltage |
| Isolation | Electrical between power and control |
| type of cable | Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR Without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC With UL Type 1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC |
| electrical connection | VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES: terminal 2.5 mm² / AWG 14 L1/R, L2/S, L3/T: terminal 50 mm² / AWG 1/0 |
| tightening torque | 0.6 N.m (VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) 24 N.m, 212 lb.in (L1/R, L2/S, L3/T) |
| supply | Internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 A, protection type: overload and short-circuit protection Internal supply: 24 V DC (21…27 V), <200 A, protection type: overload and short-circuit protection |
| sampling duration | 2 ms +/- 0.5 ms F discrete 2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog |
| response time of ATV212HD22N4 inverter | FM 2 ms, tolerance +/- 0.5 ms for analog output(s) FLA, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) FLB, FLC 7 ms, tolerance +/- 0.5 ms for discrete output(s) RY, RC 7 ms, tolerance +/- 0.5 ms for discrete output(s) |
| accuracy of ATV212HD22N4 inverter | +/- 0.6 % (VIA) for a temperature variation 60 °C +/- 0.6 % (VIB) for a temperature variation 60 °C +/- 1 % (FM) for a temperature variation 60 °C |
| linearity error | VIA: +/- 0.15 % of maximum value for input VIB: +/- 0.15 % of maximum value for input FM: +/- 0.2 % for output |
| analogue output type | FM switch-configurable voltage 0…10 V DC, impedance: 7620 Ohm, resolution 10 bits FM switch-configurable current 0…20 mA, impedance: 970 Ohm, resolution 10 bits |
| discrete output type | Configurable relay logic: (FLA, FLC) NO – 100000 cycles Configurable relay logic: (FLB, FLC) NC – 100000 cycles Configurable relay logic: (RY, RC) NO – 100000 cycles |
| minimum switching current | 3 mA at 24 V DC for configurable relay logic |
| maximum switching current | 5 A at 250 V AC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) 5 A at 30 V DC on resistive load – cos phi = 1 – L/R = 0 ms (FL, R) 2 A at 250 V AC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) 2 A at 30 V DC on inductive load – cos phi = 0.4 – L/R = 7 ms (FL, R) |
| discrete input type | F programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm R programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm RES programmable 24 V DC, with level 1 PLC, impedance: 4700 Ohm |
| discrete input logic | Positive logic (source) (F, R, RES), <= 5 V (state 0), >= 11 V (state 1) Negative logic (sink) (F, R, RES), >= 16 V (state 0), <= 10 V (state 1) |
| dielectric strength | 3535 V DC between earth and power terminals 5092 V DC between control and power terminals |
| insulation resistance | >= 1 mOhm 500 V DC for 1 minute |
| frequency resolution | Display unit: 0.1 Hz Analog input: 0.024/50 Hz |
| Communication service | Write single register (06) Read device identification (43) Read holding registers (03) 2 words maximum Write multiple registers (16) 2 words maximum Time out setting from 0.1 to 100 s Monitoring inhibitable |
| option card of ATV212HD22N4 inverter | Communication card for LonWorks |
| Power dissipation in W | 626 W |
| Air flow | 214 m3/h |
| Functionality | Mid |
| Specific application | HVAC |
| Variable speed drive application selection | Compressor for scroll Building – HVAC Fan Building – HVAC Pump Building – HVAC |
| Motor power range AC-3 | 15…25 kW at 380…440 V 3 phases 15…25 kW at 480…500 V 3 phases |
| Motor starter type | Variable speed drive |
| Discrete output number | 2 |
| Analogue input number | 2 |
| analogue input type | VIA switch-configurable voltage: 0…10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits VIB configurable voltage: 0…10 V DC 24 V max, impedance: 30000 Ohm, resolution 10 bits VIB configurable PTC probe: 0…6 probes, impedance: 1500 Ohm VIA switch-configurable current: 0…20 mA, impedance: 250 Ohm, resolution 10 bits |
| Analogue output number | 1 |
| Physical interface | 2-wire RS 485 |
| Connector type | 1 RJ45 1 open style |
| Transmission rate | 9600 bps or 19200 bps |
| Transmission frame | RTU |
| Number of addresses | 1…247 |
| Data format | 8 bits, 1 stop, odd even or no configurable parity |
| Type of polarization | No impedance |
| Asynchronous motor control profile | Voltage/frequency ratio, 2 points Voltage/frequency ratio – Energy Saving, quadratic U/f Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Flux vector control without sensor, standard Voltage/frequency ratio, 5 points |
| Torque accuracy | +/- 15 % |
| transient overtorque | 120 % of nominal motor torque +/- 10 % for 60 s |
| Acceleration and deceleration ramps | Automatic based on the load Linear adjustable separately from 0.01 to 3200 s |
| Motor slip compensation | Adjustable Not available in voltage/frequency ratio motor control Automatic whatever the load |
| switching frequency | 6…16 kHz adjustable 8…16 kHz with derating factor |
| Nominal switching frequency | 8 kHz |
| Braking to standstill | By DC injection |
| Network frequency | 47.5…63 Hz |
| Prospective line Isc | 22 kA |
| protection type | Overheating protection: drive Thermal power stage: drive Short-circuit between motor phases: drive Input phase breaks: drive Overcurrent between output phases and earth: drive Overvoltages on the DC bus: drive Break on the control circuit: drive Against exceeding limit speed: drive Line supply overvoltage and undervoltage: drive Line supply undervoltage: drive Against input phase loss: drive Thermal protection: motor Motor phase break: motor With PTC probes: motor |
| Width of ATV212HD22N4 inverter | 240 mm |
| Height of ATV212HD22N4 inverter | 420 mm |
| Depth of ATV212HD22N4 inverter | 214 mm |
| Product weight | 26.4 kg |
| pollution degree | 3 conforming to IEC 61800-5-1 |
| IP degree of protection | IP20 on upper part without blanking plate on cover conforming to EN/IEC 61800-5-1 IP20 on upper part without blanking plate on cover conforming to EN/IEC 60529 IP21 conforming to EN/IEC 61800-5-1 IP21 conforming to EN/IEC 60529 IP41 on upper part conforming to EN/IEC 61800-5-1 IP41 on upper part conforming to EN/IEC 60529 |
| vibration resistance | 1.5 mm (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 1 gn (f= 13…200 Hz) conforming to EN/IEC 60068-2-8 |
| shock resistance of ATV212HD22N4 inverter | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| environmental characteristic | Classes 3C1 conforming to IEC 60721-3-3 Classes 3S2 conforming to IEC 60721-3-3 |
| noise level of ATV212HD22N4 inverter | 59.9 dB conforming to 86/188/EEC |
| operating altitude | 1000…3000 m limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m <= 1000 m without derating |
| relative humidity of ATV212HD22N4 inverter | 5…95 % without condensation conforming to IEC 60068-2-3 5…95 % without dripping water conforming to IEC 60068-2-3 |
| ambient air temperature for operation | -10…40 °C (without derating) 40…50 °C (with derating factor) |
| Operating position | Vertical +/- 10 degree |
| Product certifications | C-Tick UL NOM 117 CSA |
| Marking of ATV212HD22N4 inverter | CE |
| Standards of ATV212HD22N4 inverter | EN 61800-3 environments 1 category C2 IEC 61800-3 environments 1 category C2 EN 61800-3 category C3 EN 61800-3 category C2 IEC 61800-3 EN 61800-3 environments 2 category C2 IEC 61800-5-1 EN 61800-3 environments 1 category C3 EN 61800-3 environments 2 category C3 IEC 61800-3 environments 1 category C1 IEC 61800-3 category C3 IEC 61800-3 environments 2 category C3 IEC 61800-3 category C2 EN 61800-3 environments 2 category C1 EN 61800-3 IEC 61800-3 environments 1 category C3 EN 61800-5-1 IEC 61800-3 environments 2 category C2 UL Type 1 EN 61800-3 environments 1 category C1 EN 55011 class A group 1 IEC 61800-3 environments 2 category C1 |
| Assembly style of ATV212HD22N4 inverter | With heat sink |
| electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs – 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Regulation loop | Adjustable PI regulator |
| Ambient air temperature for storage | -25…70 °C |
