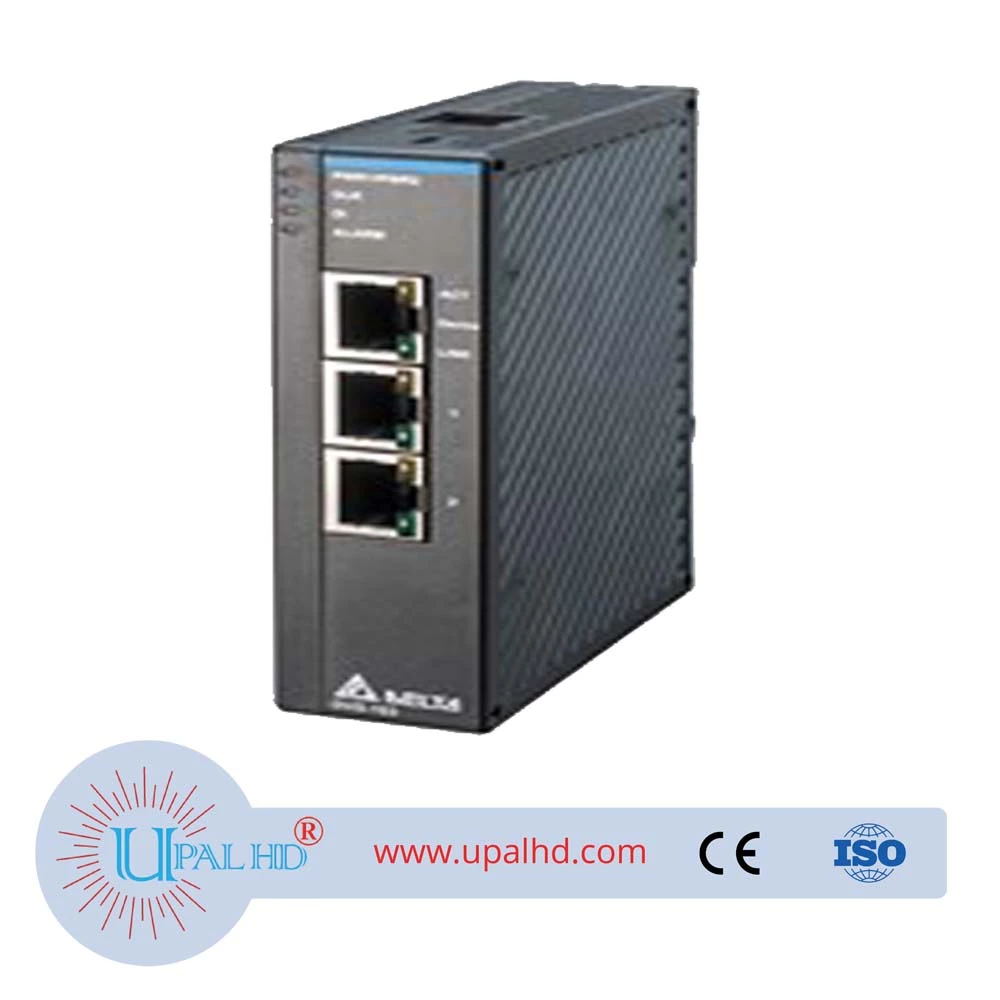

DELTA PLC DVS-103I02C-DLR

Description

PRODUCT INFORMATION OF DELTA PLC DVS-103I02C-DLR

Specifications

Technology

1. Standard Compliance
2. IEEE 802.3 10Base-T
3. IEEE 802.3u 100Base-T(X) and 100Base-FX

4. ---

Processing Type

1. Store and Forward

2. ---

Interface

1. Fast Ethernet
2. RJ45 Ports: 3 10/100Base-T(X), auto MDI/MDI-X, auto negotiation
3. DIP Switches
4. Configuration for DHCP/BootP, Factory Default, DLR Enable/Disable
5. Digital Inputs(DI)
6. 1 set
7. 0~+5V is OFF
8. +11V~30V is ON
9. Max. input current 6mA
10. Alarm Contacts(DO)
11. 1 relay output
12. Carry current 2A@24VDC

13. ---

Management

1. Software:
2. EtherNet/IP, IGMP Snooping v1/v2, VLAN, DHCP/BootP Client
3. DLR Mode:
4. Supervisor, Ring
5. Configuration:
6. Delta EIP Builder, EtherNet/IP EDS(Electronic Data Sheet) file
7. Firmware Upgrade:
8. Web Browser

9. ---

Power Requirements

1. Input Voltage: 2 sets, 12 to 48VDC redundant terminal block input
2. Input Current: Max. 0.31A
3. Overload Current Protection: Present, max. input current 0.9A
4. Reverse Polarity Protection: Present

5. ---

Physical

1. Housing: IP40 PC plastic
2. Dimensions: 110 mm (H) x 28 mm (W) x 75 mm (D)
3. Weight: 126g
4. Installation: Industrial DIN-Rail and wall mounting

5. ---

Environmental Limits

1. Operating Temperature: -20℃ to 70℃ (-4℉ to 158℉)
2. Storage Temperature: -40℃ to 85℃ (-40℉ to 185℉)
3. Ambient Relative Humidity: 5% to 95% (non-condensing)

4. ---

Arovals

1. Safety: UL 61010, IEC 62368-1, EAC
2. EMI: FCC 47 CFR Part 15 Subpart B Class A, EN 55032, AS/NZS CISPR 32
3. EMS( IEC 61000-6-2, EN 55024): IEC 61000-4-2 level 3, IEC 61000-4-3 level 3, IEC 61000-4-4 level 3, IEC 61000-4-5 level 1, IEC 61000-4-6 level 3, IEC 61000-4-8 level 4, IEC 61000-4-17
4. Environmental Type Tests:
5. Cold Temperature: IEC 60068-2-1
6. Dry Heat: IEC 60068-2-2
7. Humidity: IEC 60068-2-30
8. Shock: IEC 60068-2-27
9. Freefall: IEC 60068-2-32
10. Vibration: IEC 60068-2-6
11. Hi-Pot: 500V
