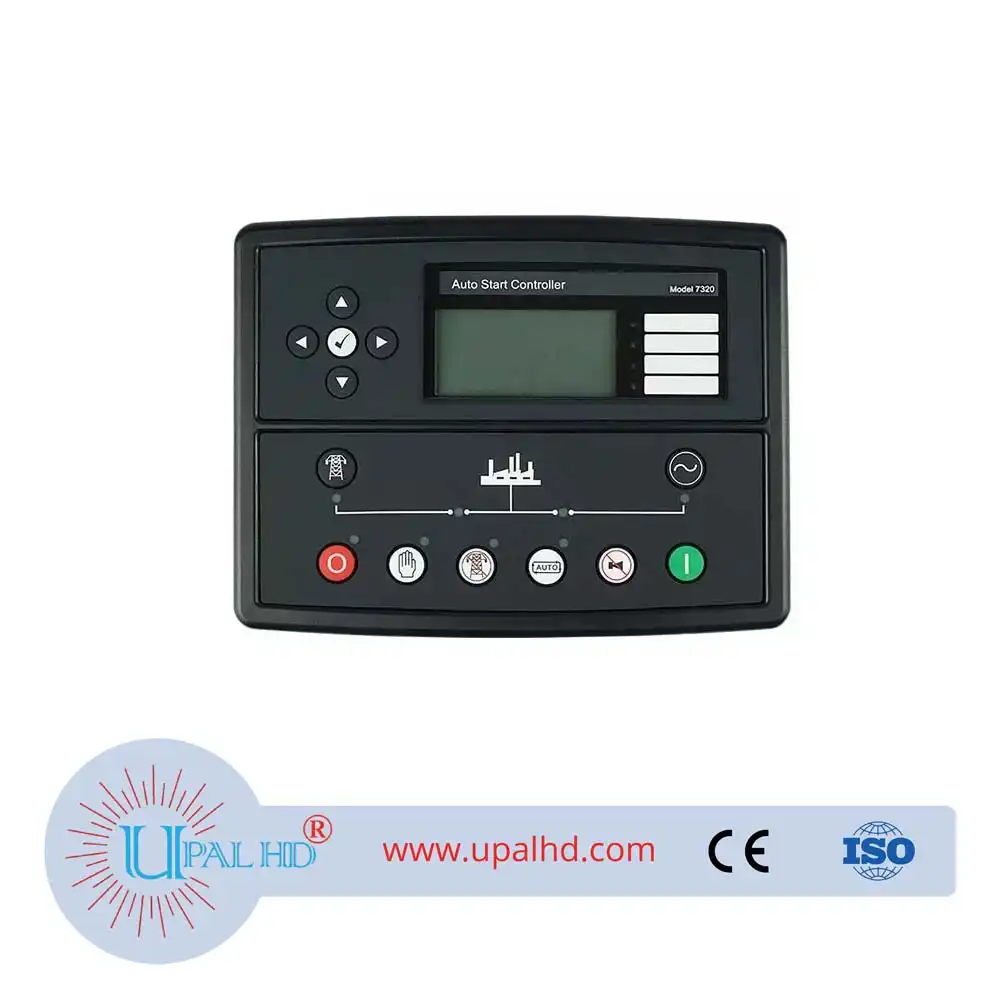

PRODUCT INFORMATION OF UPAL HD Diesel Engine Control Unit DSE7320.
|
DSE7320
Auto Mains Failure Control Module
|
||
|
Overall Size
|
245 mm x 184 mmx51mm
(9.6″ x 7.2″ x 2.0″) |
|
|
Panel Cutout Size
|
220 mm x 160 mm
(8.7″ x 6.3″) |
|
|
Maximum Panel Thickness
|
8.0 mm (0.3″)
|
|
|
Product Size
|
275mm*185mm*50mm
|
|
|
Weight
|
0.94kg
|
|
|
DC SUPPLY
|
Continuous voltage range
|
8 V to 35 V Continuous
|
|
Maximum operating crrent
|
340 mA at 12 V, 160 mA at 24 V
|
|
|
Maximum standby current
|
160 mA at 12 V, 80 mA at 24 V
|
|
|
Charge fail/excitation range
|
0V to 35V
|
|
|
MAINS (UTILITY)
|
Voltage range
|
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
|
|
Frequency range
|
3.5 Hz to 75 Hz
|
|
|
OUTPUTS
|
Output A (fuel)
|
15 A DC at supply voltage
|
|
Output B (start)
|
15 A DC at supply voltage
|
|
|
Outputs C & D
|
8 A 250 V (Volt free)
|
|
|
Auxiliary outputs E,F,G,H
|
2 A DC at supply voltage
|
|
|
GENERATOR
|
Voltage range
|
15 V to 415 V AC (Ph to N)
26 V to 719 V AC (Ph to Ph)
|
|
Frequency range
|
3.5 Hz to 75 Hz
|
|
|
MAGNETIC PICK-UP
|
Voltage range
|
± 0.5 V to 70 V
|
|
Frequency range
|
10,000Hz (max)
|
|
