Description

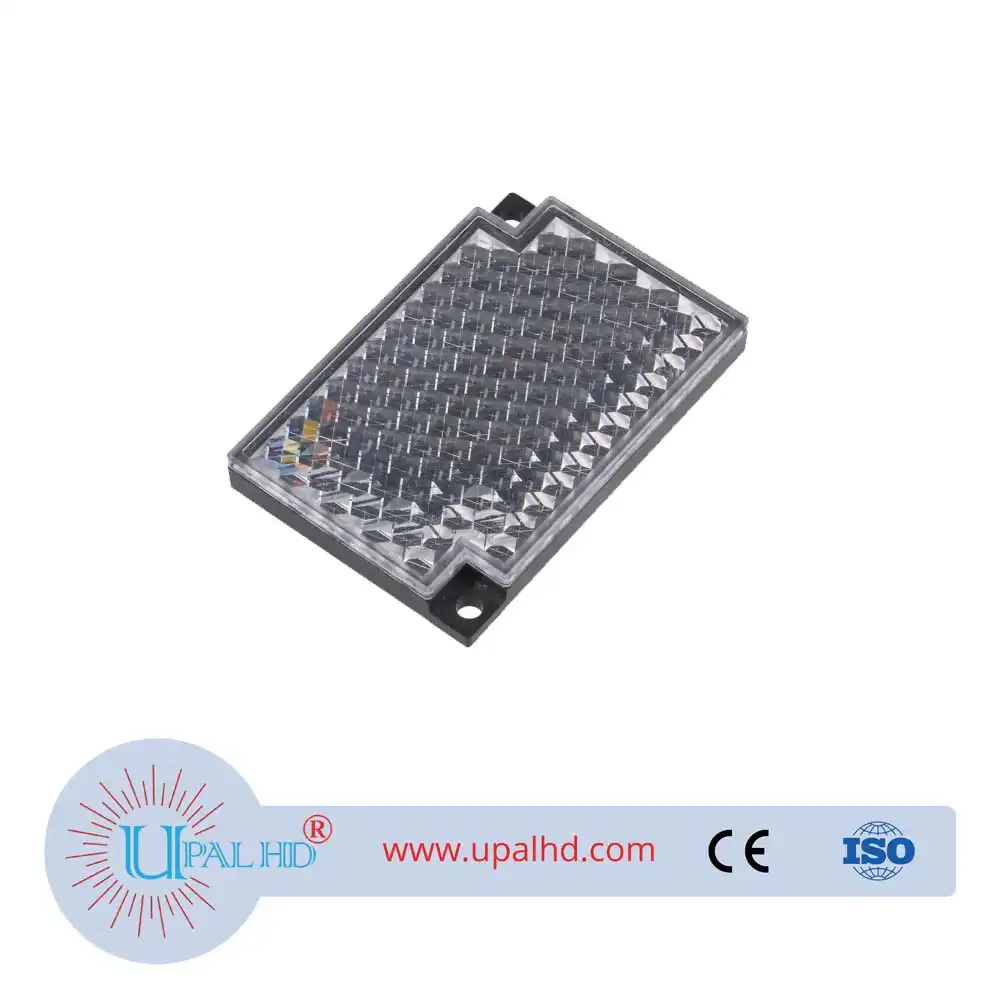

PRODUCT INFORMATION OF Omron photoelectric switch sensor E39-R1S reflective NPN.
| Sensing method | Retro-reflective with M.S.R. function |
|---|---|
| Sensing distance | 0.1m to 4m (When using the E39-R1S) |
| Standard sensing object | Opaque 75 mm dia. Min. |
| Directional angle | Sensor: 2 to 10 DEG Reflector: 30 DEG Min. |
| Light source | Red LED |
| Power supply voltage | 12 to 24 VDC -10% to 10% (ripple (p-p) 10% Max.) |
| Current consumption | 30 mA DC Max. |
| Control output (Output type) | NPN open collector output |
| Control output (Load current) | 0 to 100 mA |
| Control output (Residual voltage) | (DC) 1 V Max. (Load current: Less than 10mA) (DC) 2 V Max. (Load current: 10 to 100 mA) |
| Operation mode | Light-ON/Dark-ON selectable |
| Load power supply voltage | 26.4 VDC Max. |
| Protective circuit | Surge suppressor Output short-cut protection Output short-circuit protection Power supply reverse polarity protection Mutual interference prevention |
| Response time | 1 ms Max. |
| Sensitivity setting | Single-turn adjustment |
| Ambient illuminance | Incandescent lamp: 3000 lux Max., Sunlight: 10000 lux Max. |
| Ambient temperature | Operating: -25 to 55℃ Storage: -40 to 70℃ (with no icing or condensation) |
| Ambient humidity | Operating: 35 to 85% Storage: 35 to 95% (with no icing or condensation) |
| Insulation resistance | 20 MOhm Min. at 500 VDC between charged parts and the case |
| Dielectric strength | 1000 VAC at 50/60 Hz for 1 minute between charged parts and the case |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | 500 m/s**2 for 3 times each in X, Y, and Z directions |
| Degree of protection | IEC60529: IP67 |
| Connection method | Pre-wired models （Cable length: 2 m） |
| Indicator | Operation indicator (orange), Stability indicator (green) |
| Tightening torque | 0.5 N・m Max. (with M3 screw) |
| Material (case) | PBT |
| Material (lens) | Methacrylate resin |
| Accessories | Instruction manual |
