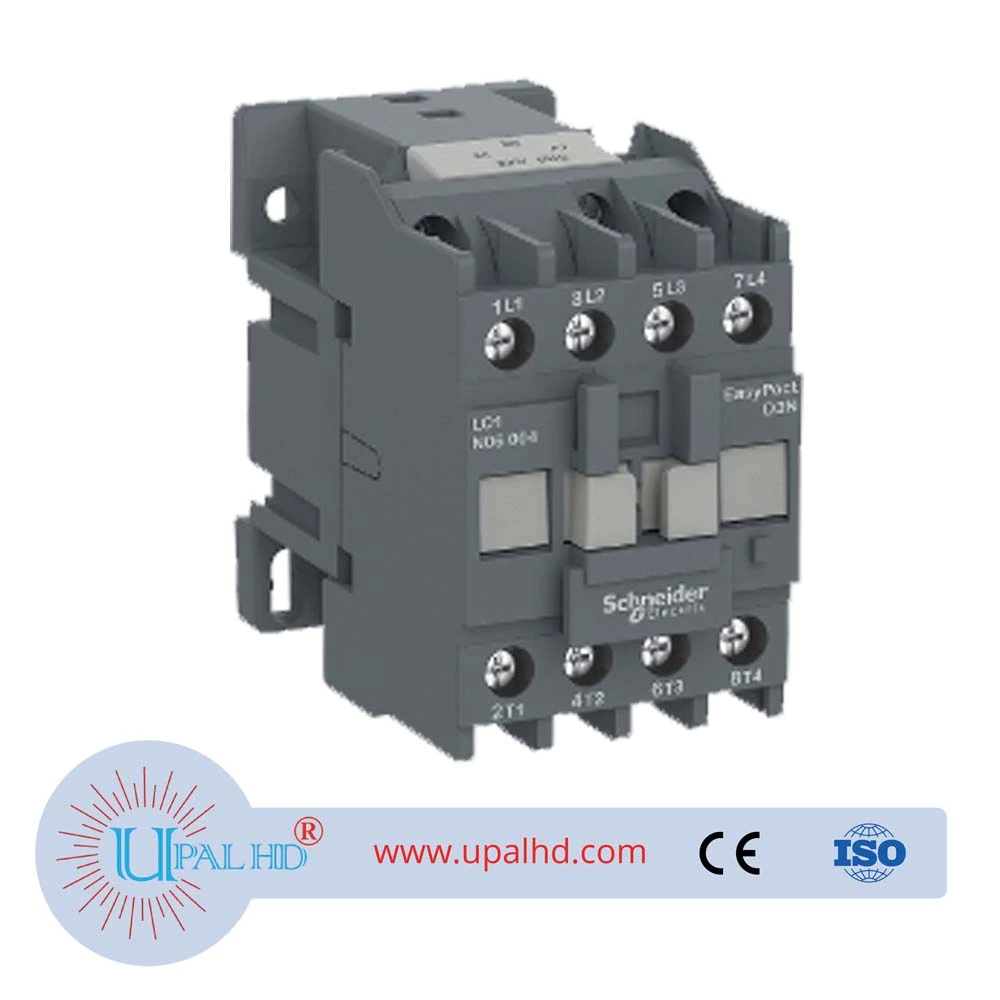

PRODUCT INFORMATION OF SCHNEIDER EasyPact LC1N06004M7N Series 4 Pole Contactors
| Product Series | Compact |
|---|---|
| product type | Contactor |
| product short name | LC1N |
| Application field of contactor | Applied to non-inductive or micro-inductive load, resistance furnace |
| use category | AC-1 |
| number of poles | 4P |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 50/60 Hz |
| Rated operating current [Ie] | 6 A 60 °C) at <= 440 V AC AC-3 for power circuits 16 A 60 °C) at <= 440 V AC AC-1 for power circuits |
| [Uc] control circuit voltage | 230V AC 50/60Hz |
| Loop contact type | 4 NO |
| Conventional thermal current [Ith] | 16 A at <60 °C for power circuits |
| Rated making capacity [Irms] | 60 A at 440 V AC for power circuits conforming to IEC 60947-4-1 |
| Rated breaking capacity | 48 A at 440 V for power circuits conforming to IEC 60947 |
| Rated short-time withstand current [Icw] | 80 A for power circuits at <40 °C – 10 s 45 A for power circuits at <40 °C – 60 s 20 A for power circuits at <40 °C – 600 s |
| Fuses for use with relays | 10 A gG at <= 690 V for type 1 suitable control circuits conforming to IEC 60947-5-1 12 A gG at <= 690 V for type 1 suitable power circuits |
| average impedance | 2.5 mΩ – Ith 16 A 50 Hz for power loop |
| power consumption per pole | 1W AC-1 |
| Rated insulation voltage [Ui] | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| pollution level of EasyPact LC1N06004M7N | 3 |
| Rated impulse withstand voltage [Uimp] | 6 kV coil not connected to power circuit conforming to IEC 60947 |
| Mechanical life | 10000000 times |
| Electrical life | 150000 AC-1 |
| Control loop characteristics | AC at 50/60 Hz |
| Control voltage limit | 0.85…1.1 Uc 55 °C Run 50/60 Hz 0.3…0.6 Uc 55 °C Release 50/60 Hz |
| (~50Hz pickup) power consumption (VA) | 95 VA 50 Hz 0.75 20 °C) 95 VA 60 Hz 0.75 20 °C) |
| (~50Hz hold) power consumption (VA) | 8.5 VA 50 Hz 0.3 20 °C) 8.5 VA 60 Hz 0.3 20 °C) |
| heat dissipation | 2…3 W for control circuits |
| action time | 12…22 ms off 4…19 ms on opening |
| operating frequency | 1800 cycles/h at <60 °C |
| Wiring capacity | Power circuit: screw-on1 1…4 mm² Cable option: flexible cord with cable terminals Power circuit: screw-on2 1…2.5 mm² Cable option: flexible cable with cable terminal Power circuit: screw-on1 1 …4 mm² Cable option: solid without wire terminals Power circuit: screw tight2 1…4 mm² Cable option: solid without cable terminals Control circuit: screw tight1 1…4 mm² Cable option : Flexible wire without wire terminal Control circuit: Bolt fastening2 1…4 mm² Cable selection: Flexible wire without wire terminal Control circuit: Bolt fastening1 1…4 mm² Cable selection: Flexible wire with wire Terminals Control circuit: Bolt-on2 1…2.5 mm² Cable selection: Flexible wire with wire terminal Control circuit: Bolt-on1 1…4 mm² Cable selection: Solid without wire terminal Control circuit: Bolt- on 2 1…4 mm² Cable option: solid without cable terminals |
| Tightening torque | Power circuit: 1.2 Nm Control circuit: 1.2 Nm |
| installation method | Chassis mounting DIN rail mounting |
| standard of EasyPact LC1N06004M7N | GB 14048.4 EN 60947-1 IEC 60947-4-1 EN 60947-4-1 IEC 60947-1 |
| certified product | CCC |
| IP protection class | IP20 conforming to IEC 60529 |
| Protective measures | TH (pollution degree 3) conforming to IEC 60068 |
| ambient air temperature | -20…70 °C (allowed at Uc) -60…80 °C storage -5…55 °C operation |
| working altitude | 3000 m None |
| Fire resistance and abnormal high temperature resistance | 850 °C conforming to IEC 60695-2-1 |
| Shock and vibration resistance | Shock resistance with contacts open (1.5 gn (5…300 Hz)) shock resistance with contacts closed (3 gn (5…300 Hz)) shock resistance with contacts open (7 gn (11ms)) shock resistance Performance Contact closed state (10 gn (11ms)) |
| high of EasyPact LC1N06004M7N | 74 mm |
| width of EasyPact LC1N06004M7N | 45 mm |
| depth of EasyPact LC1N06004M7N | 80 mm |
| Product Weight | 0.34 kg |
| Warranty of EasyPact LC1N06004M7N | 18 months |
