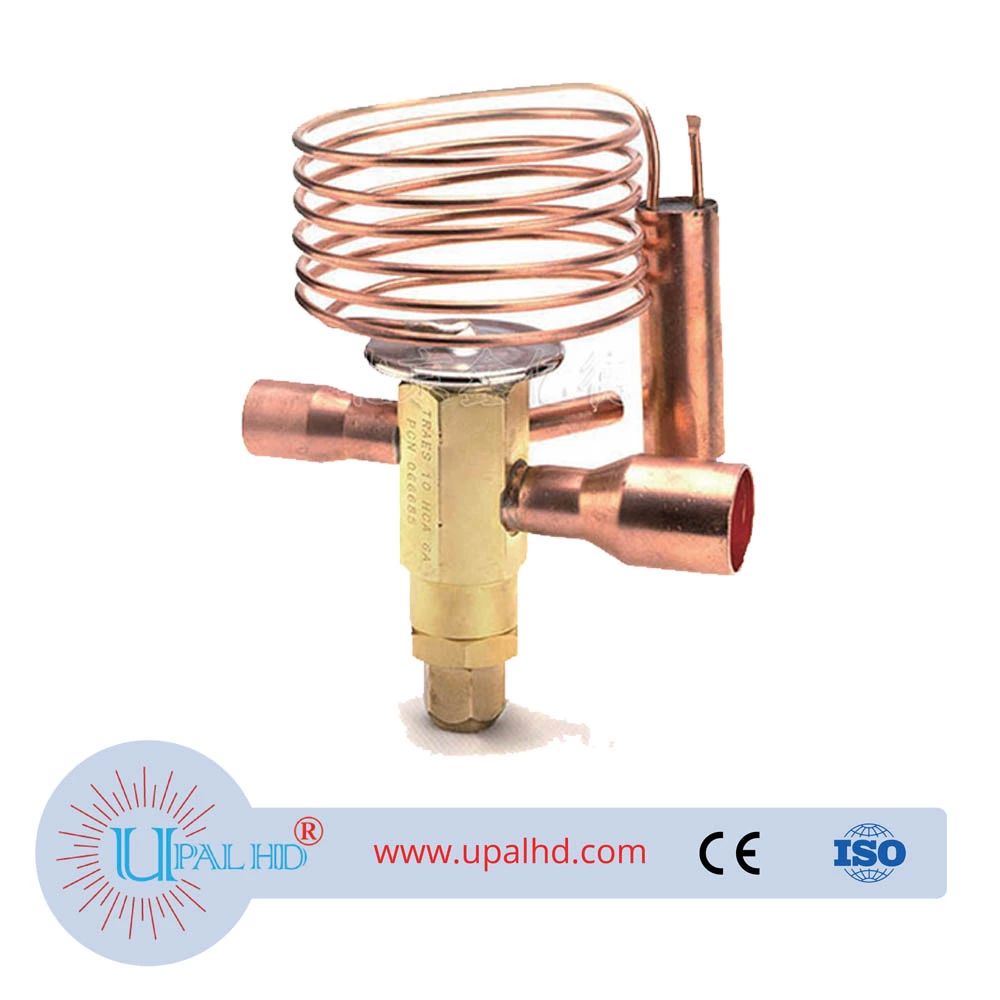

Emerson BAE4-1/2ZAA_R410A thermal expansion valve 066871 external balance 10*12 interface

Description

PRODUCT INFORMATION OF DANFOSS BAE4-1/2ZAA_R410A thermal expansion valve 066871 external balance 10*12 interface

Emerson’s B-Series is a balanced port thermostatic expansion valve. Generally used in small air conditioners and heat pump systems. The B series thermal expansion valve can still maintain stable and precise operation and control under different evaporation temperatures and numbered evaporation loads.

Features:

The stainless steel power head eliminates the influence of corrosion and prolongs the service life of the valve

Fully enclosed structure, effectively prevent leakage

Compact shape saves installation and maintenance space

Two-way flow capacity, in a heat pump system, using a B valve can control both heating and superheat during heating

Balanced valve port structure, maximum compensation for operating pressure changes caused by changing ambient temperature, defrosting, heat recovery or changing evaporative load<, so that the system can maintain stable operation

External balance structure (standard configuration)

Special charge ZAA for R410A refrigerant

Maximum Operating Pressure: 700psig (48 bar)

UL/CUL Listed: Certification No. SA5312

1. Emerson thermal expansion valve BAE4-1/2ZAA port size, overall size, evaporation temperature range, superheat adjustment range.

2. Emerson BAE4-1/2ZAA thermal expansion valve 066871 corresponds to the spool type/PCN, and corresponds to the nominal cooling capacity of R22/R404A/R134a refrigerant.
