Description

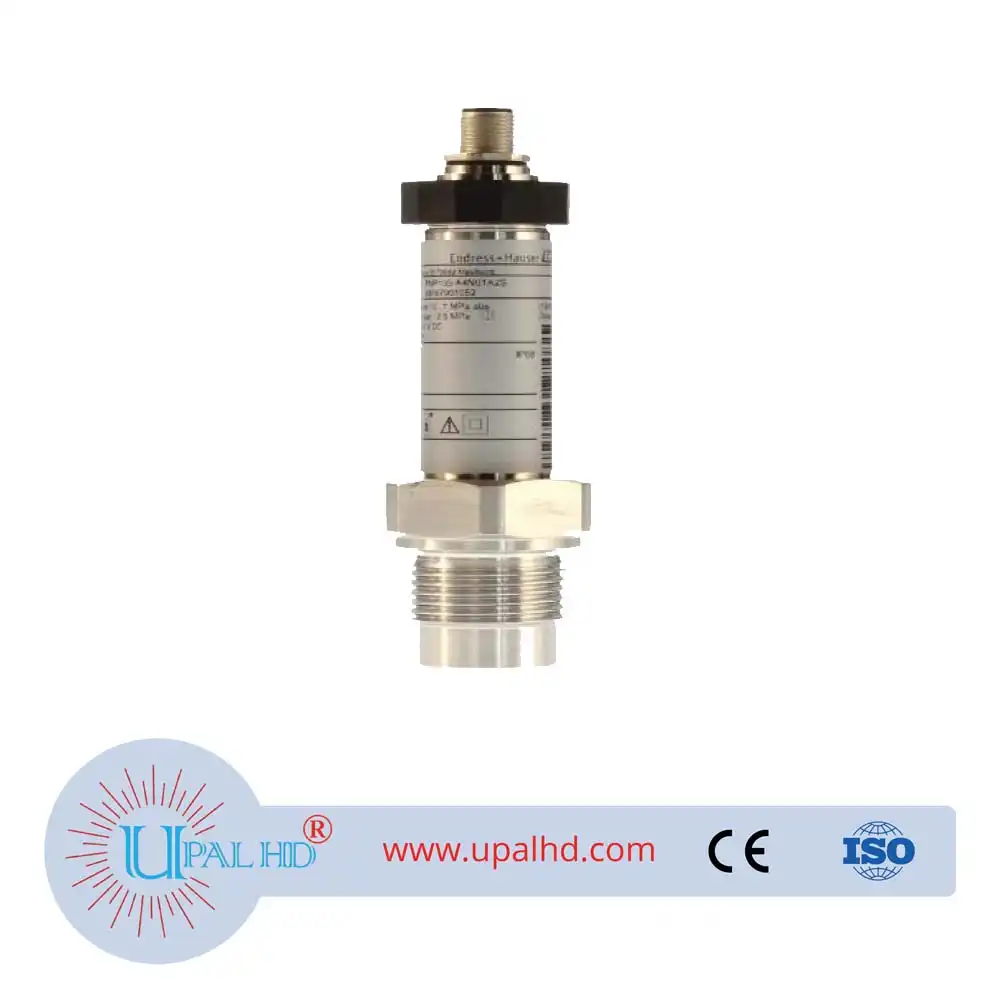

PRODUCT INFORMATION OF Endress Hauser pressure transmitter distribution PMP135-A4N01A2S.
| Measuring Principle | Absolute and gauge pressure | |
| Characteristic | Cost-effective pressure transducer with piezoresistive sensor, and flush mounted metallic diaphragm for hygienic applications | |
| Supply voltage | Analogue output: 12…30V DC, Switch output: 18…32V DC |
|
| Reference Accuracy | 0,5% | |
| Long term stability | 0,15% of URL/year | |
| Process temperature | -25°C…100°C (-13°F…212°F) 135°C for 1h (275°F for 1h) |
|
| Ambient temperature | -25°C…70°C (-13°F…758°F) |
|
| Measuring cell | 1bar…40bar (15psi…600psi) |
|
| Max. overpressure limit | 160bar (2320psi) | |
| Process connection | Threads Tri-Clamp ISO2852 Hygienic connections |
|
| Communication | 4…20mA analogue PNP switch |
|
| Certificates / Approvals | ATEX | |
| Safety approvals | SIL | |
| Design approvals | EN10204-3.1 | |
| Hygienic approvals | 3A | |
| Specialities | switch output | |
