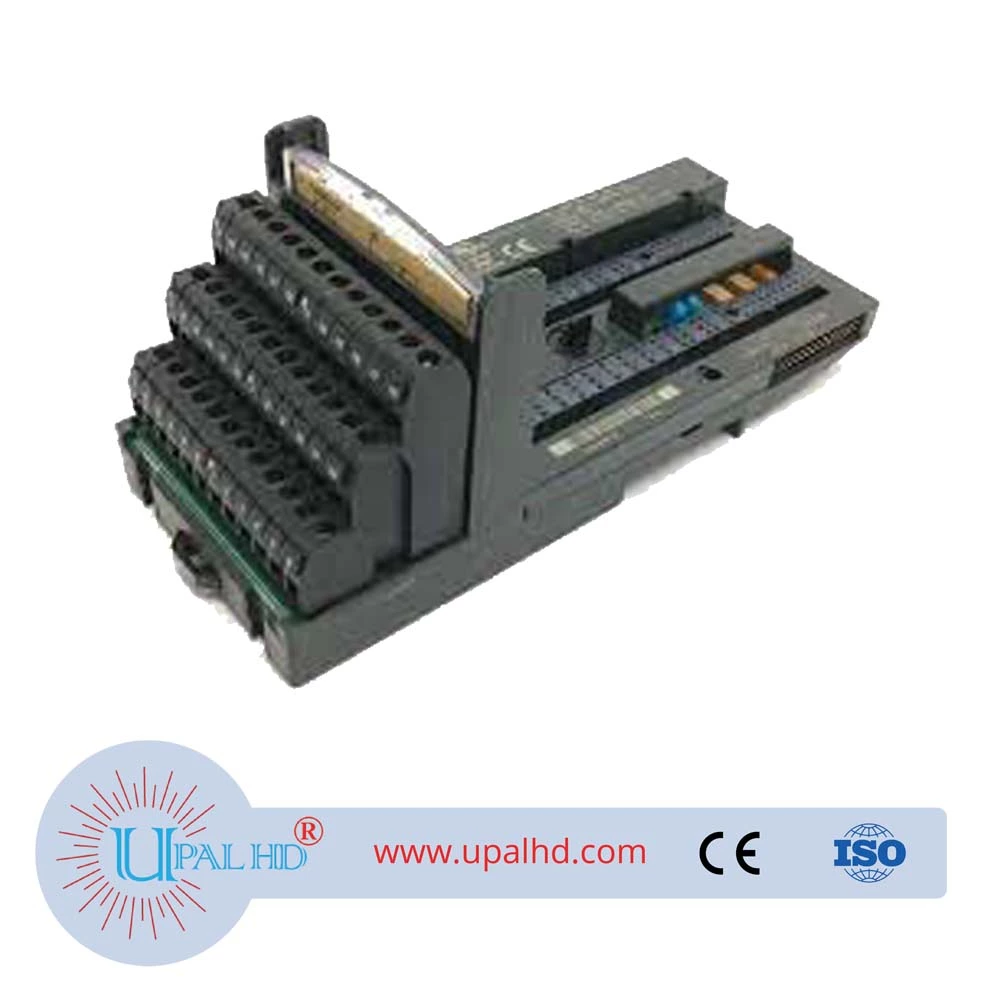

GE-FANUC PLC module IC200CHS022C J IC200CHS025F G
GE-FANUC PLC module IC200CHS022C J IC200CHS025F Model Number: IC200CHS022. The IC200CHS022 is a Compact I/O carrier module. It is part of the VersaMax platform, currently under Emerson Automation, formerly produced by GE Intelligent Platforms (GE IP). This is a Compact Box-style I/O carrier that comes with 36 terminals from A1 – A18 and B1 – B18. This carrier accommodates up to 0-264 VAC voltage range, 2 Amperes per point or 8 Amperes per power and ground. Appropriate wire size for use with each terminal are Solid or stranded copper ranging AWG # 14 to AWG #22 for single wire connection and AWG #18 for Two (2) wire connection in a single terminal for implementing terminal shorting.
Description
PRODUCT INFORMATION OF GE FANUC GE-FANUC PLC module IC200CHS022C J IC200CHS025F G
| Brand | GE Fanuc |
| Series | Versamax |
| Manufacturer | GE Intelligent Platforms (Former); Emerson Automation (Current) |
| Manufacturer | Emerson Automation / GE Fanuc (former) |
| Series | VersaMax |
| Part Number | IC200CHS022 |
| Series | VersaMAx |
| Part Number | IC200CHS022 |
| Product Type | Compact box-style I/O carrier |
| Product Description | I/O carrier module |
| Box-style Terminals | 36 |
| Product Description | I/O Carrier Module |
| No of terminal strips | Three (3) |
| Dimensions | Height: 167.89mm (6.61in) Length: 66.80mm (2.63in) |
| Carrier module style | Compact I/O, Box style |
| No. of Terminals | 36 terminal |
| Recommended wire size per terminal: | Single wire: AWG #14 (avg. 2.1mm2 cross section) maximum size of AWG #22 (avg. 0.36mm2 cross section) Two (2) wire: AWG #18 (avg. 0.86mm2 cross section). |
| Compatible wire size | AWG # 14 to AWG #22 for single wire connection; AWG #18 for Two (2) wire connection |
| Single-Wire Cross Section | 0.36 mm2 to 2.1 mm2 |
| Current rating per point | 2 A |
| Listing | This specification list was created by dosupply.com. |
