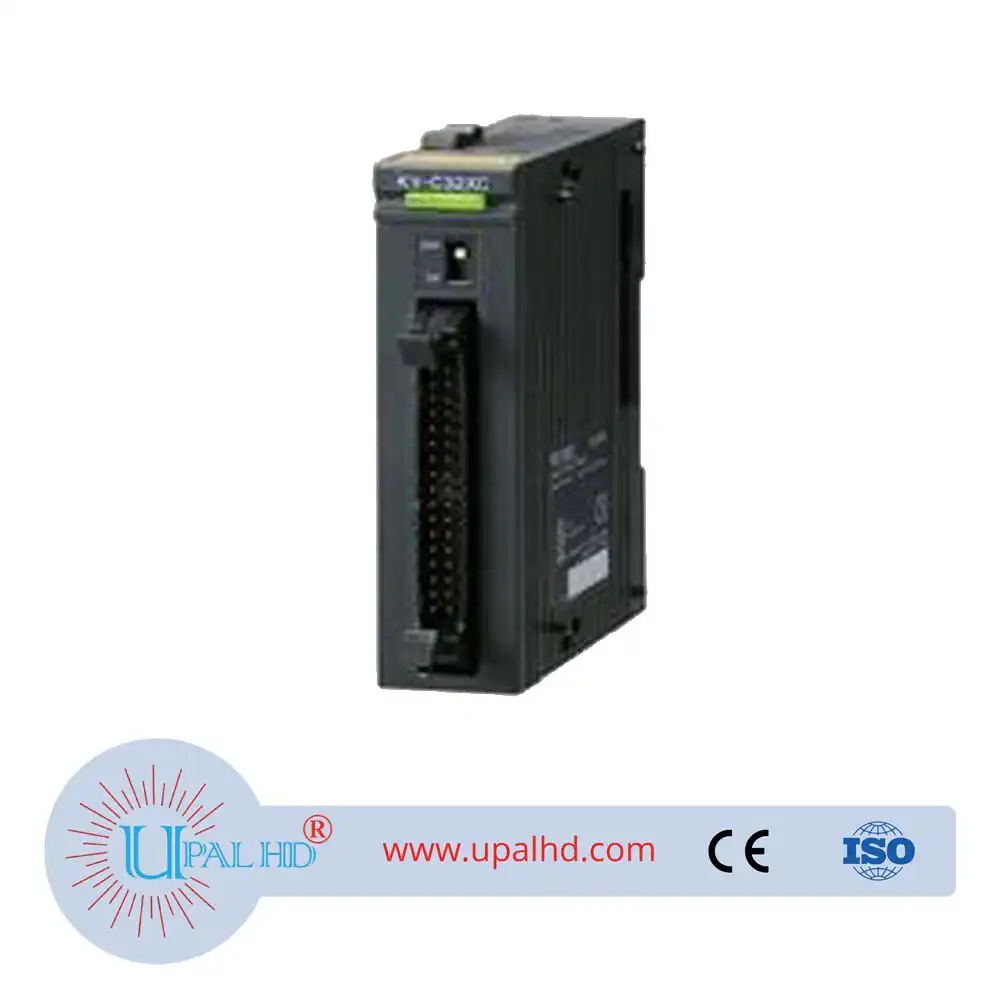

PRODUCT INFORMATION OF Keyence 32-point connector programmable controller KV-C32XC.
| Model | KV-C32XC | |||
| Type | Input Unit | |||
| External connection method | Connector (MIL standard)*1 | |||
| Input | Number of inputs | 32 points | ||
| Input mode | 24 VDC mode, 5 VDC mode | |||
| Maximum input voltage | 26.4 VDC | |||
| Rated input voltage | 24 VDC mode: 24 VDC, 5.3 mA, 5 VDC mode: 5 VDC, 1 mA | |||
| Minimum ON voltage | 24 VDC mode: 19 V, 5 VDC mode: 3.5 V | |||
| Maximum OFF current | 24 VDC mode: 1.5 mA | |||
| Maximum OFF voltage | 5 VDC mode: 1.5 V | |||
| Common method | 32 points/1 common (2 terminals)*2 | |||
| Input time constant | [Input time constant setting 25 µs] OFF to ON: Typ. 25 µs/Max. 65 µs, ON to OFF: Typ. 75 µs/Max. 120 µs [Input time constant setting 300 µs*3] OFF to ON: Typ. 275 µs/Max. 365 µs, ON to OFF: Typ. 275 µs/Max. 420 µs [Input time constant setting 1 ms] OFF to ON: Typ. 1 ms/Max. 1.2 ms, ON to OFF: Typ. 1 ms/Max. 1.2 ms [Input time constant setting 10 ms] OFF to ON: Typ. 10 ms/Max. 12 ms, ON to OFF: Typ. 10 ms/Max. 12 ms (four-level switching) |
|||
| Input impedance | 4.3 kΩ | |||
| Internal current consumption | 15 mA or less | |||
| Weight | Approx. 110 g | |||
