Description

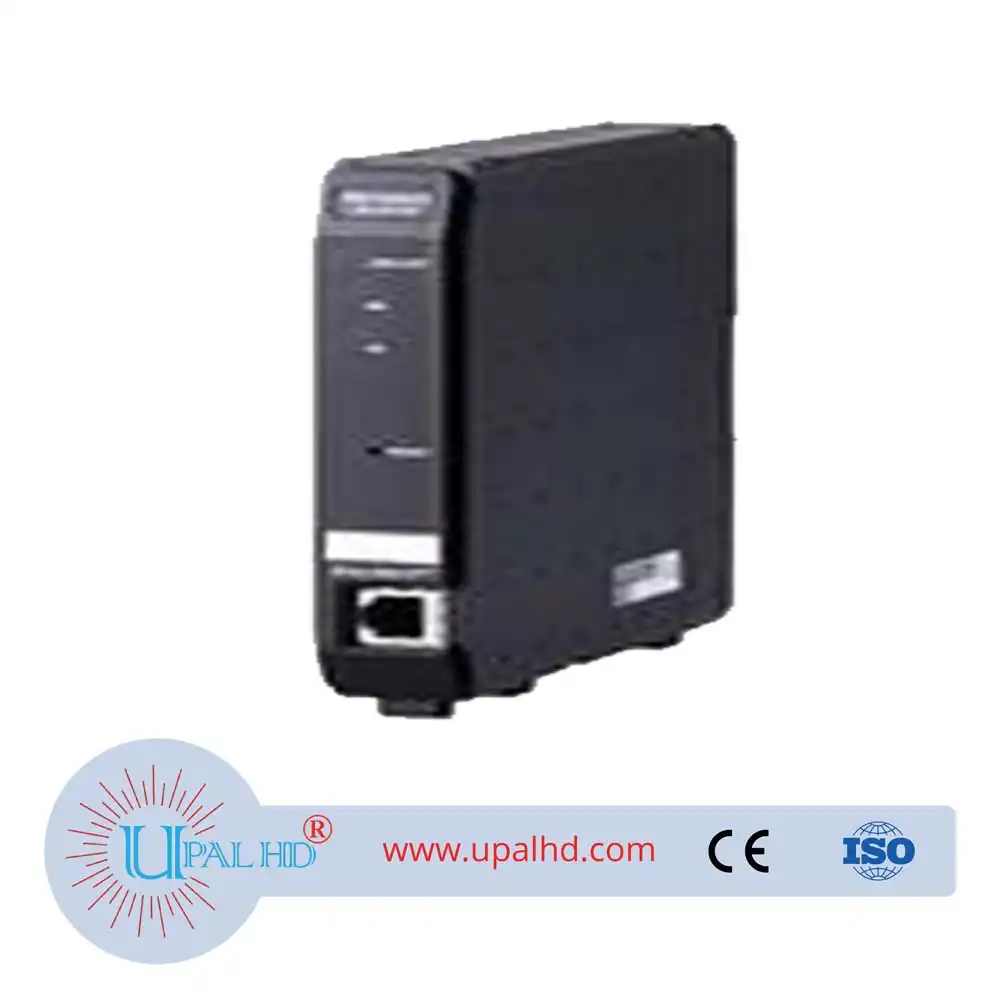

PRODUCT INFORMATION OF Keyence EtherNet/IP Unit CB-EP100.
| Model | CB-EP100 | |||
| Type | EtherNet/IPTM unit | |||
| Compatible network | EtherNet/IPTM and displacement sensor-specific protocols (socket communication) | |||
| Ethernet | Compliant standards | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) | ||
| Transmission speed | 10 Mbps (10BASE-T), 100 Mbps (100BASE-TX) | |||
| Transmission media | STP or Category 3 or higher UTP (10BASE-T), STP or Category 5 or higher UTP (100BASE-TX) |
|||
| Maximum cable length | 100 m 328.1′ (Distance between the unit and Ethernet switch) | |||
| EtherNet | Maximum number of connectable hubs | 4 hubs (10BASE-T), 2 hubs (100BASE-TX)*1 | ||
| EtherNet/IPTM | Supported functions | Cyclic communication (Implicit messaging), Message communication (Explicit messaging), Compatible with UCMM and Class 3 |
||
| Number of connections | 64 | |||
| RPI | 0.5 ms to 10,000 ms (in 0.5 ms) | |||
| Tolerable communication bandwidth for cyclic communication | 6,000 pps | |||
| Message communication | UCMM, Class 3 | |||
| Conformance test | Compatible with Version A9 | |||
| Rating | Power voltage | 24 VDC ±10 %, including Ripple (P-P) (supplied from the controller unit of the laser scanner) |
||
| Current consumption | 0.12 A or less | |||
| Environmental resistance | Ambient temperature | 0 to +50 °C 32 to 122 °F | ||
| Relative humidity | 20 to 85 % RH (No condensation) | |||
| Weight | Approx. 470 g | |||
