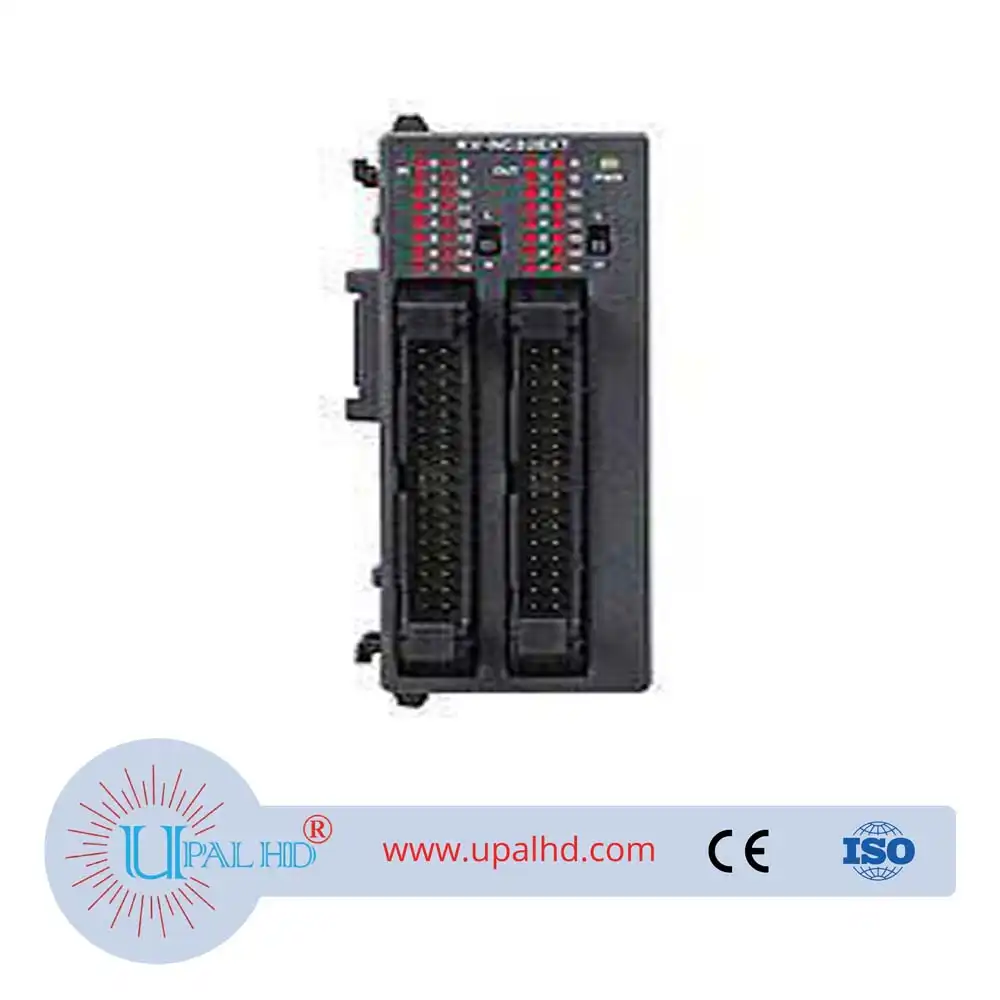

PRODUCT INFORMATION OF Keyence expansion input/output unit KV-NC32EXT.
| Model | KV-NC32EXT | |||
| Expansion input unit | External connection method | Connector | ||
| Input Points | 32 | |||
| Input terminals | 24 VDC mode | |||
| Maximum input voltage | 26.4 VDC | |||
| Input rated voltage | 24 VDC mode | 3.6 mA | ||
| 5 VDC mode | ― | |||
| Minimum ON voltage | 24 VDC mode | 19 V | ||
| 5 VDC mode | ― | |||
| Maximum OFF current | 24 VDC mode | 1.5 mA | ||
| Maximum OFF voltage | ― | |||
| Common method | 32 points/1 common (2 terminals)*1 | |||
| Input time constant (four-level switching) | Input time constant setting | OFF to ON: Typ. | 25 μs : 10 μs 300 μs : 240 μs 1 ms : 1 ms 10ms : 10 ms |
|
| OFF to ON: Max. | 25 μs : 50 μs 300 μs : 290 μs 1 ms : 1.2 ms 10ms : 11 ms |
|||
| ON to OFF: Typ. | 25 μs : 50 μs 300 μs : 280 μs 1 ms : 1 ms 10ms : 10 ms |
|||
| ON to OFF: Max. | 25 μs : 150 μs 300 μs : 390 μs 1 ms : 1.2 ms 10 ms : 11 ms |
|||
| Input impedance | 6.3 kΩ | |||
| Expansion output unit | Output Points | 32 | ||
| External connectionmethod | MOSFET (N-ch) (with overcurrent protection function) *2 |
|||
| External connection method | Connector | |||
| Rated load | 30 VDC 0.2 A *3 | |||
| Leakage current (when output is OFF) | 100 μA or less | |||
| Residual voltage (at ON) | 0.6 VDC or less | |||
| Common method | 32 points/1 common (2 terminals) *1 | |||
| Response time | OFF to ON | 100 μs or less (with a load of 1 mA or more) | ||
| ON to OFF | 200 μs or less (with a load of 1 mA or more) | |||
| Internal current consumption | 60 mA or less | |||
| Weight | Approx. 150 g | |||
