Description

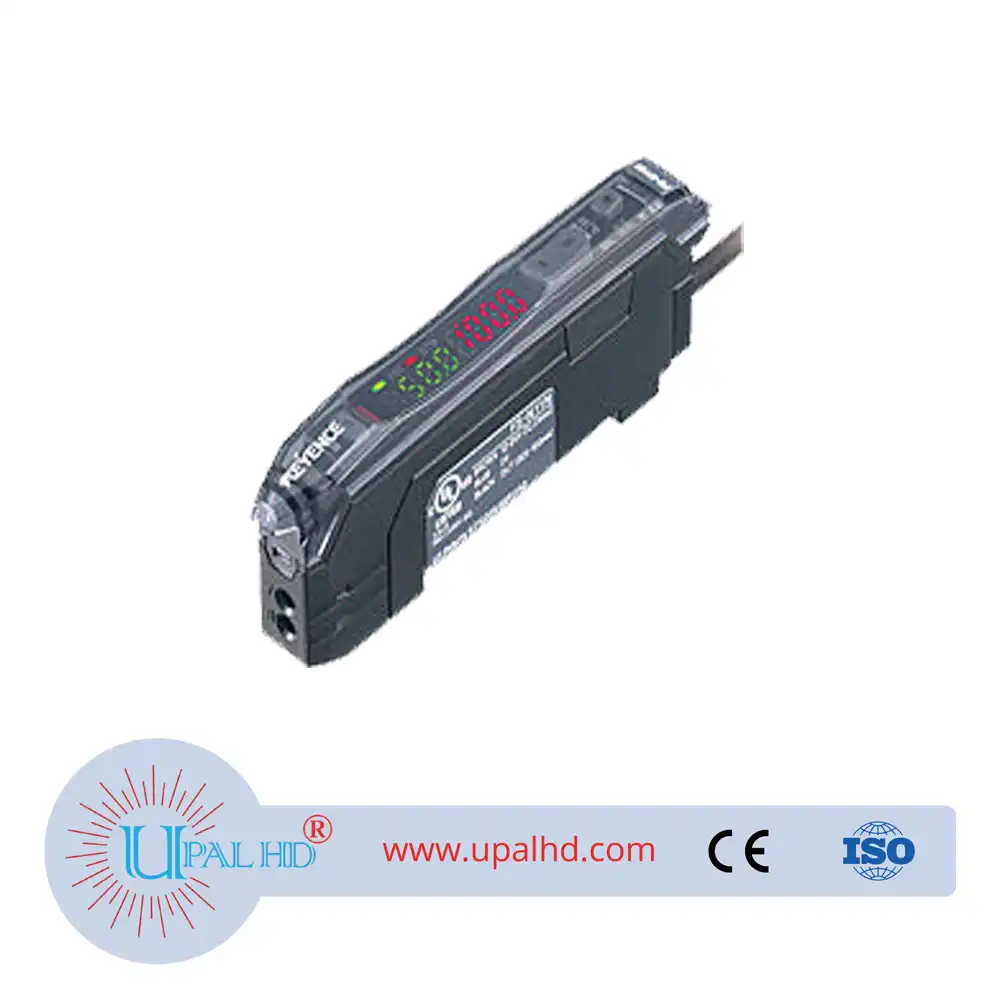

PRODUCT INFORMATION OF Keyence Fiber Amplifier Cable Type Host NPN FS-N11MN.
| Model | FS-N11MN | |||
| Type | Monitor output Cable |
|||
| Output | NPN | |||
| Main unit/expansion unit | Main unit | |||
| Control output | 1 NPN open collector 24 V; 1 output max: 100 mA or less; 2 output total: 100 mA or less (used stand-alone)/20 mA or less (multiple connections); residual voltage 1 V or less |
|||
| Monitor output (1-5 V) | 1 | |||
| External input | – | |||
| Light source LED | Red, 4-element LED | |||
| APC | ON/OFF switchable (Factory setting: OFF) | |||
| Response time | 50 µs (HIGH SPEED) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA) | |||
| Number of interference prevention units | 0 for HIGH SPEED; 4 for FINE; 8 for TURBO/SUPER/ULTRA/MEGA (When set to double, the number of interference-prevention units will be doubled.) |
|||
| Unit expansion | Up to 16 units can be connected total (two output type is treated as two units) | |||
| Rating | Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | ||
| Current Consumption | Normal: 900 mW or less (36 mA max. at 24 V, 48 mA max. at 12 V)*1 Eco on mode: 800 mW or less (32 mA max. at 24 V, 39 mA max. at 12 V)*1 Eco Full mode: 470 mW or less (19 mA max. at 24 V, 23 mA max. at 12 V) |
|||
| Environmental resistance | Ambient light | Incandescent lamp: 20,000 lux or less, Sunlight: 30,000 lux or less | ||
| Ambient temperature | -20 to +55 °C -4 to +131 °F (No freezing)*2 | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions | |||
| Case material | Both main unit and expansion unit housing material: Polycarbonate | |||
| Weight | Approx. 75 g | |||
