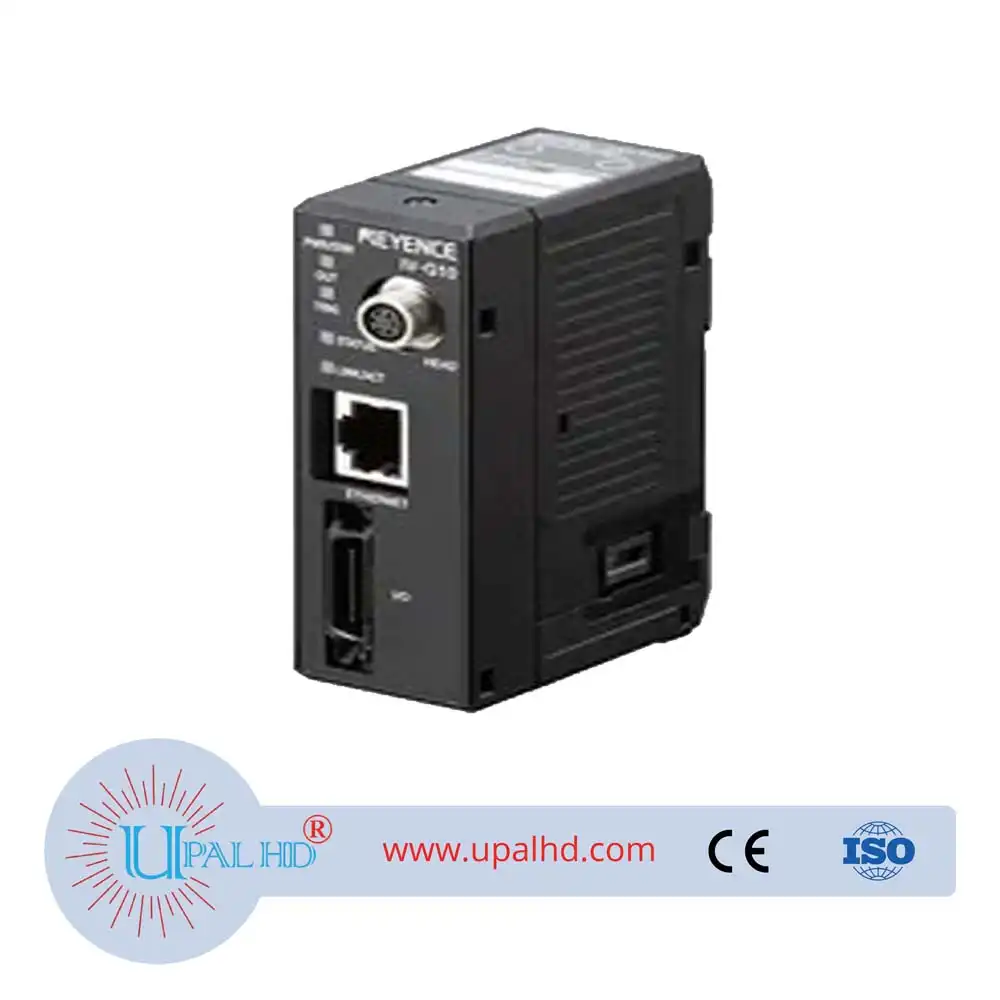

PRODUCT INFORMATION OF Keyence image recognition sensor IV-G10.
| Model | IV-G10 | |||
| Type | Main unit | |||
| Tools | Type | Shape Detection, Color Area*1, Area*2, position adjustment | ||
| Number | Detection tools: 16 tools, position adjustment tool: 1 tool*3 | |||
| Switch settings (programs) | 32 programs | |||
| Image history | Numbers | When using a color type head: 100 images*4, when using a monochrome type head: 300 images*5*6 | ||
| Condition | NG only/All is selectable*6 | |||
| Analysis information | OFF/Statistics/Histograms is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs*7 |
|||
| Other functions of Keyence image recognition sensor IV-G10. | HDR, HighGain, Color filters*1, Digital zoom (2x, 4x)*8, Brightness correction, Tilt correction, White balance*1, Mask outline, Mask area, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Total judgment result output, Direct connection (2 units or more), Failing sensor list, Failure hold |
|||
| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT | |||
| Input | Type | Non-voltage input/voltage input is switchable For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V) |
||
| Inputs | 6 inputs (IN1 to IN6) | |||
| Function | IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input |
|||
| Output | Type | Open collector output NPN/PNP is switchable, N.O./N.C. is switchable For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-G15]), remaining voltage 1.5 V or lower For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-G15]), remaining voltage 2 V or lower |
||
| Outputs | 8 outputs (OUT1 to OUT8) | |||
| Function | Enable by assigning the optional functions Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Main unit/expansion unit logical output |
|||
| Ethernet | Standard | 100BASE-TX/10BASE-T*9 | ||
| Connector | RJ-45 8pin connector*9 | |||
| Network function | FTP client, EtherNet/IPTM, PROFINET | |||
| Rating | Power voltage | 24 VDC ±10 % (including ripple) | ||
| Current consumption | 0.8 A or less. 1.5 A or less when also using an expansion unit (IV-G15). (The output load is excluded.) | |||
| Environmental resistance | Ambient temperature | 0 to +50 °C 32 to 122 °F (No freezing)*10 | ||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Material | Main unit case: Polycarbonate | |||
| Weight | Approx. 150 g | |||
