Description

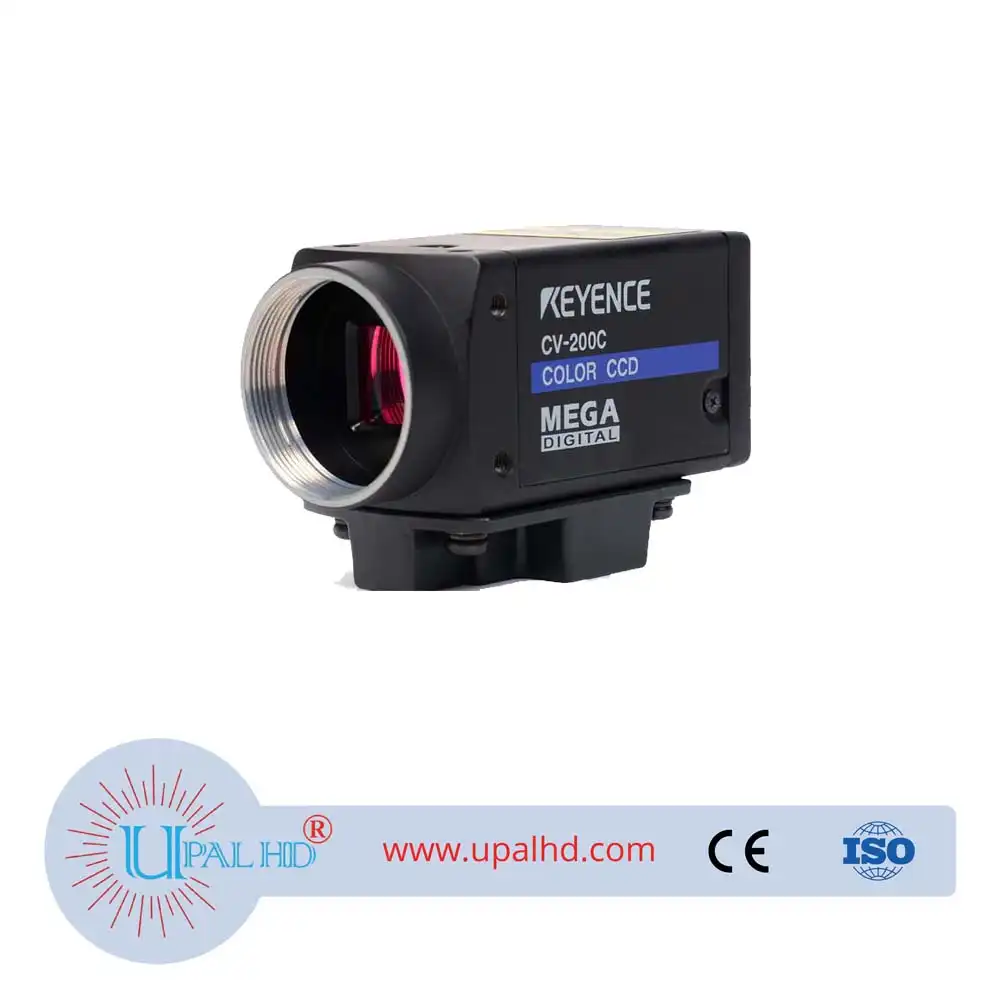

PRODUCT INFORMATION OF Keyence large-capacity intelligent guided vision system CV-200C.
| Model | CV-200C | |||
| Type | Camera*1 | |||
| Image element | 1/1.8-inch color CCD image receiving element, square-pixel/all-pixel reading, 2,010,000 pixels Unit cell size: 4.4 x 4.4 µm 0.17 x 0.17 Mil |
|||
| Valid pixel count | 1,920,000 pixels 1600 (H) x 1200 (V) *2 | |||
| Pixel transfer frequency | 40 MHz | |||
| Scanning system | Progressive (58.5 ms: 2,000,000-pixel mode, 47.6 ms: 1,000,000-pixel mode) | |||
| Transfer system | Digital serial transfer | |||
| Electronic shutter | 1/15, 1/30, 1/60, 1/120, 1/240, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/20000, 0.05 msec to 9000 msec can be set with numeric values. | |||
| Lens mount | C mount | |||
| Environmental resistance | Ambient temperature | 0 to +40 °C 32 to 104 °F | ||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Weight | Approx. 110 g (not including lens) | |||
