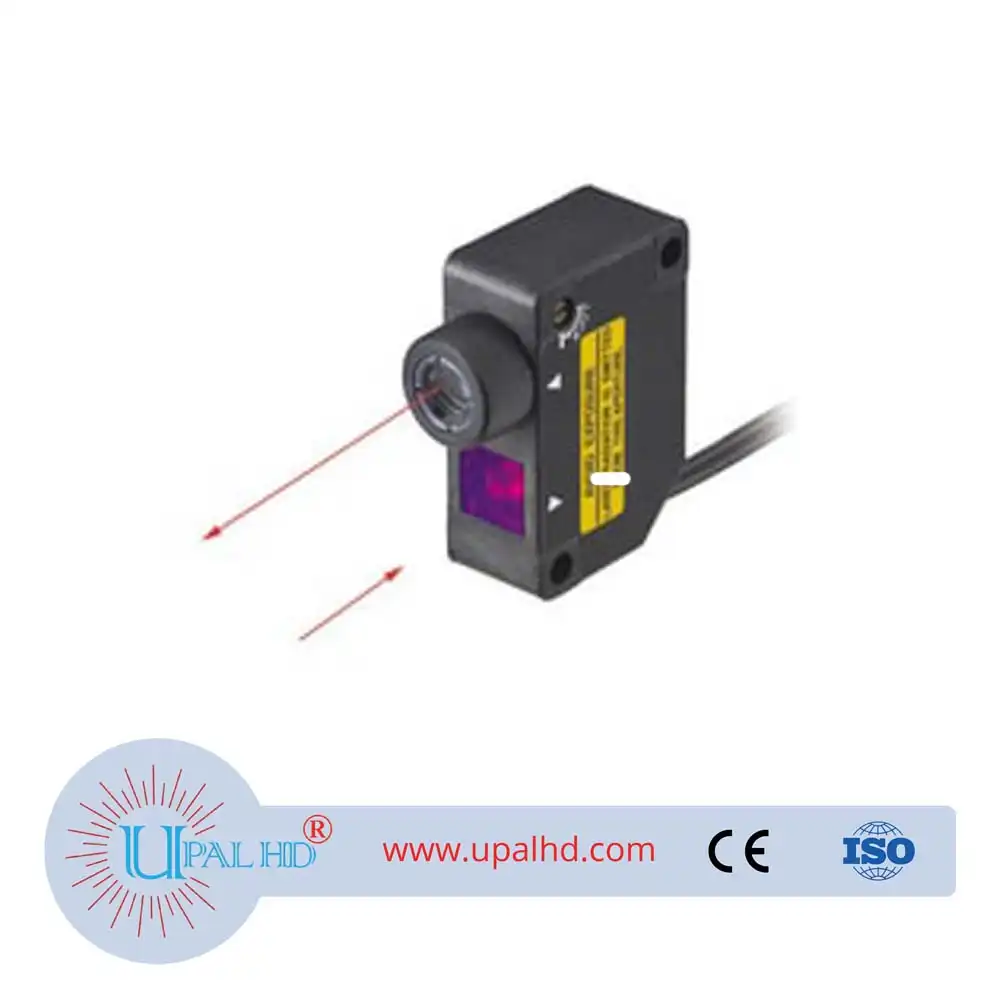

PRODUCT INFORMATION OF Keyence laser sensor amplifier LV-H32.
| Model | LV-H32 | |||
| Type | Adjustable beam spot | |||
| FDA (CDRH) Part 1040.10 | Class II | |||
| Light source | Visible red semiconductor laser | |||
| Wavelength | 660 nm | |||
| Detecting distance | FINE | 30 to 250 mm 1.181″ to 9.842″ | ||
| TURBO | 30 to 500 mm 1.181″ to 19.685″ | |||
| SUPER | 30 to 1000 mm 1.18″ to 39.37″ | |||
| Environmental resistance | Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing) | ||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Material | Case | Glass reinforced plastic *1 | ||
| Lens cover | Acrylic *2 | |||
| Weight | Approx. 45 g | |||
