Description

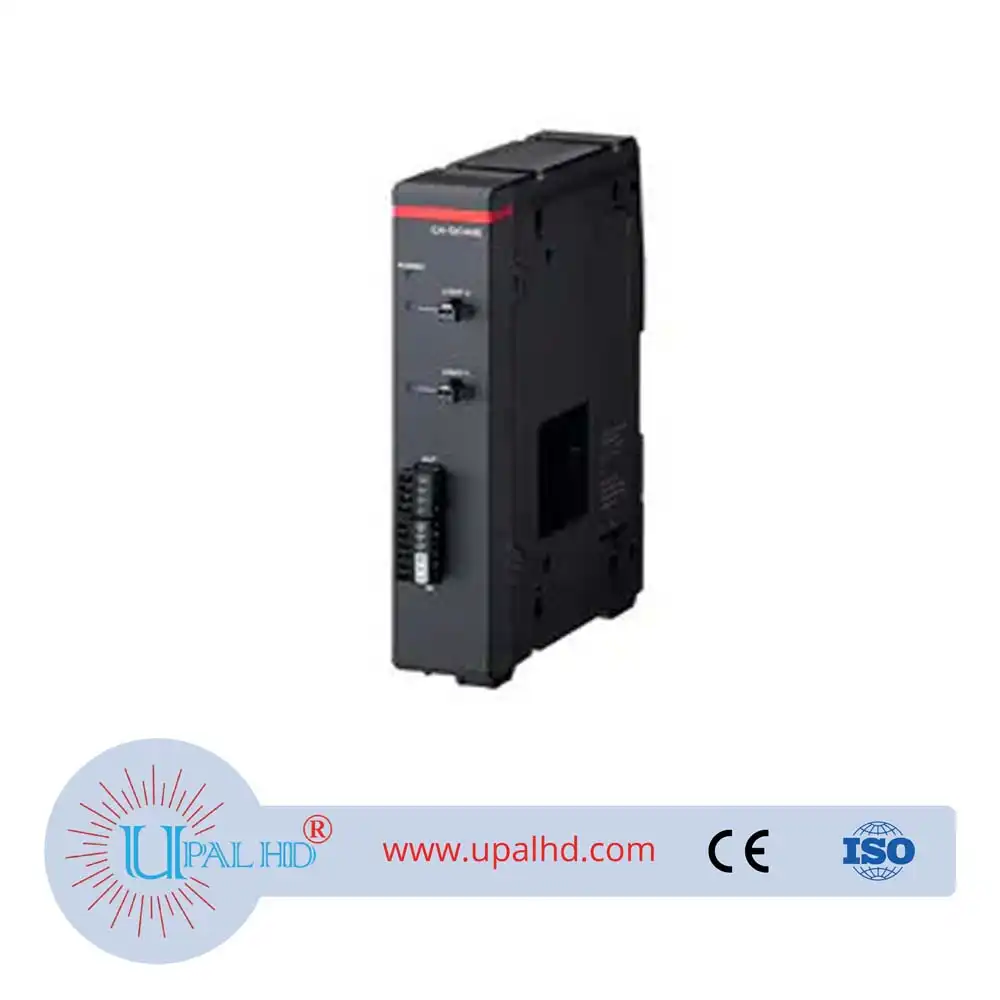

PRODUCT INFORMATION OF Keyence Lighting Expansion Unit CA-DC40E.
| Model | CA-DC40E | |||
| Type | Illumination Controller Only for XG/CV-X200/CV-X100 Series Compatible with CA-DRWxX lights only |
|||
|
Input |
– | |||
| Output | Light control method | Constant current control method | ||
| Intensity range | 255 level digital [Program setting] | |||
| Connection points | 2 ch (dedicated 6-pole circular connector) |
|||
| Voltage | LumiTraxTM light dedicated power supply | |||
| Capacity | Max. 81 W | |||
| Synchronisation | Camera trigger/shutter speed synchronisation | |||
| Response speed | Under 1 ms | |||
| Display | LED display | Out of which the current consumption of controller is 1.6 A. | ||
| Rating | Power voltage | 24 VDC ±10 % | ||
| Current consumption | 5 A (at maximum load)*1 | |||
| Environmental resistance | Ambient temperature | 0 to +50 °C*2*3 | ||
| Relative humidity | 35 to 85 % RH (No condensation)*2 | |||
| Weight | Approx. 430 g | |||
