Description

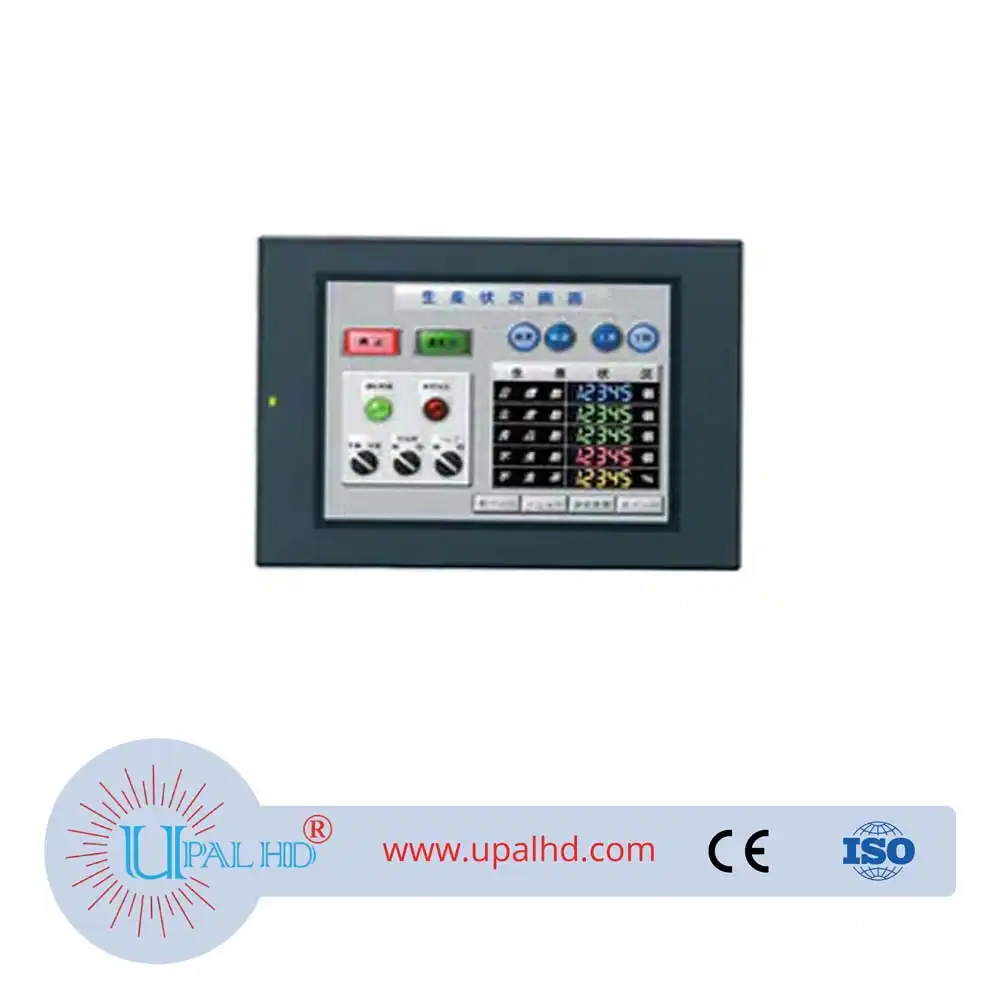

PRODUCT INFORMATION OF Keyence new original touch screen VT3-V10.
| Model | VT3-V10 | |||
| General specifications | Current consumption | – | ||
| Power consumption | 65VA or less | |||
| Structure | Panel built-in type, IP65f equivalent dust-proof, waterjet-proof on only front panel | |||
| Overvoltage category | II | |||
| Pollution degree | 2 | |||
| Power voltage | 100 to 240 VAC±10% (50/60 Hz) | |||
| Noise resistance | 1500 Vp-p pulse width 1 µs (common mode, based on noise simulator) | |||
| Withstand voltage | 1500 VAC 1 minute (between power terminal and housing) | |||
| Insulation resistance | 50 MΩ or more tested by 500 VDC megohmmeter (between power terminal and housing) | |||
| Vibration resistance | Intermittent vibration | Frequency: 5 to 9 Hz | Half amplitude: 3.5 mm*1 | |
| Frequency: 9 to 150 Hz | Acceleration: 9.8 m/s2*1 | |||
| Continuous vibration | Frequency: 5 to 9 Hz | Half amplitude: 1.75 mm*1 | ||
| Frequency: 9 to 150 Hz | Acceleration: 4.9 m/s2 *1 | |||
| Ground | Class D grounding (Class 3 grounding). | |||
| Operating environment | Minimal amount of dust and corrosive gas present | |||
| Ambient operating temperature | 0 to +50°C | |||
| Ambient operating humidity | 35 to 85%RH (No condensation)*2 | |||
| Ambient storage temperature | -10 to +60°C (No freezing) | |||
| Ambient storage humidity | 35 to 85%RH (No condensation)*2 | |||
| Weight | Approx 2300 g | |||
