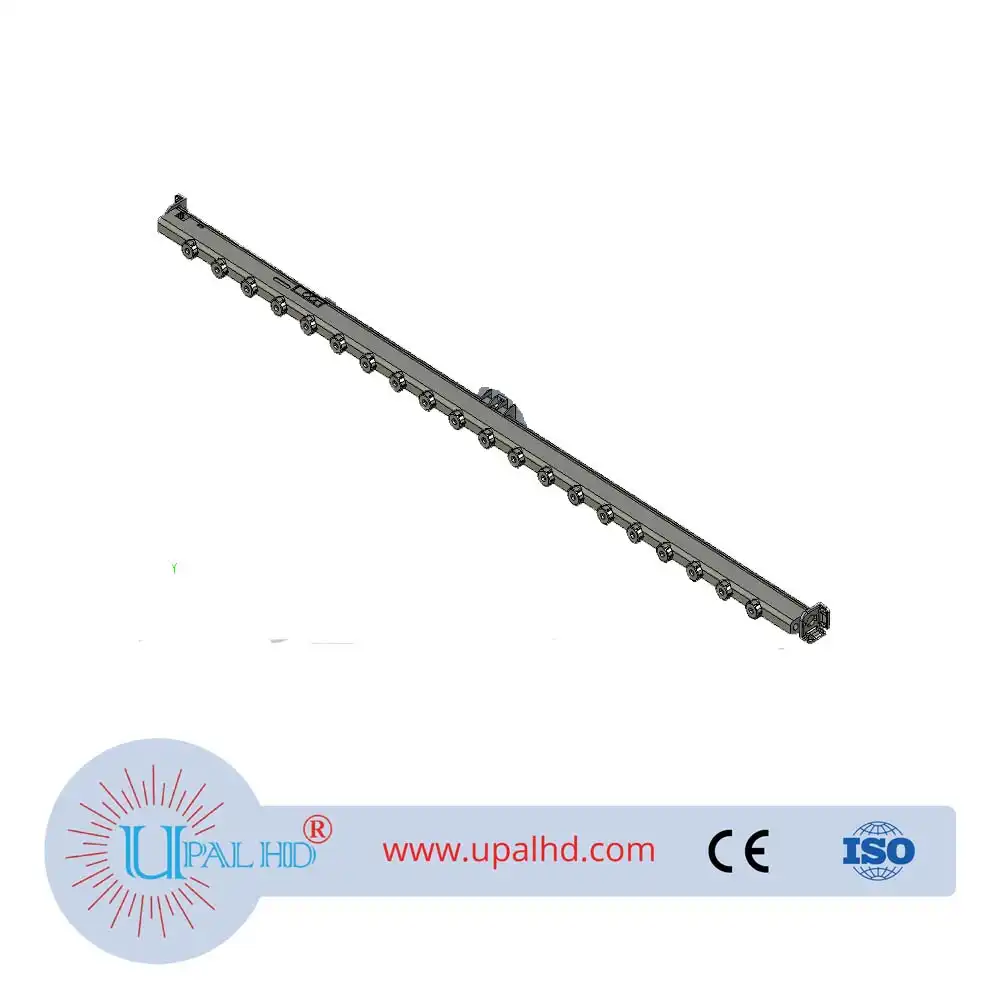

PRODUCT INFORMATION OF Keyence Rod body silicon model 1320mm SJ-H132C.
| Model | SJ-H132C | |||
| Type | HC | |||
| Ion generation method | Corona discharge method | |||
| Structure | Shock-proof, resistance-coupled type | |||
| Voltage application method/applied voltage | Pulse AC method/±7,000 V | |||
| Ion balance control method | Dual I.C.C. | |||
| Ion balance | ±30 V*1 | |||
| Operating distance | 50 to 2,000 mm | |||
| Control input | NPN open collector or non-voltage contact signal | |||
| Control output | NPN type photorelay, 100 mA max. (at 40 V max.) | |||
| Major functions | Condition alarm output, ion level alarm output, alarm output | |||
| Air purge connection port | Rc 1/8 | |||
| Air purge supplied pressure | 0.5 MPa or less | |||
| Effective length | 1,320 mm*2 | |||
| No. of electrodes | 20 | |||
| Static elimination bar length | 1,280 mm | |||
| Rating | Power voltage | 24 to 36 VDC ±10 % | ||
| Current consumption | 500 mA (at 24 VDC)/350 mA (at 36 VDC) | |||
| Overvoltage category | I | |||
| Pollution degree | 2 | |||
| Environmental resistance | Ambient temperature | 0 to +40 °C | ||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Material | Electrode probe | Silicon | ||
| Main unit | ABS resin/PC | |||
| Weight | Static elimination bar | 1,400 g | ||
