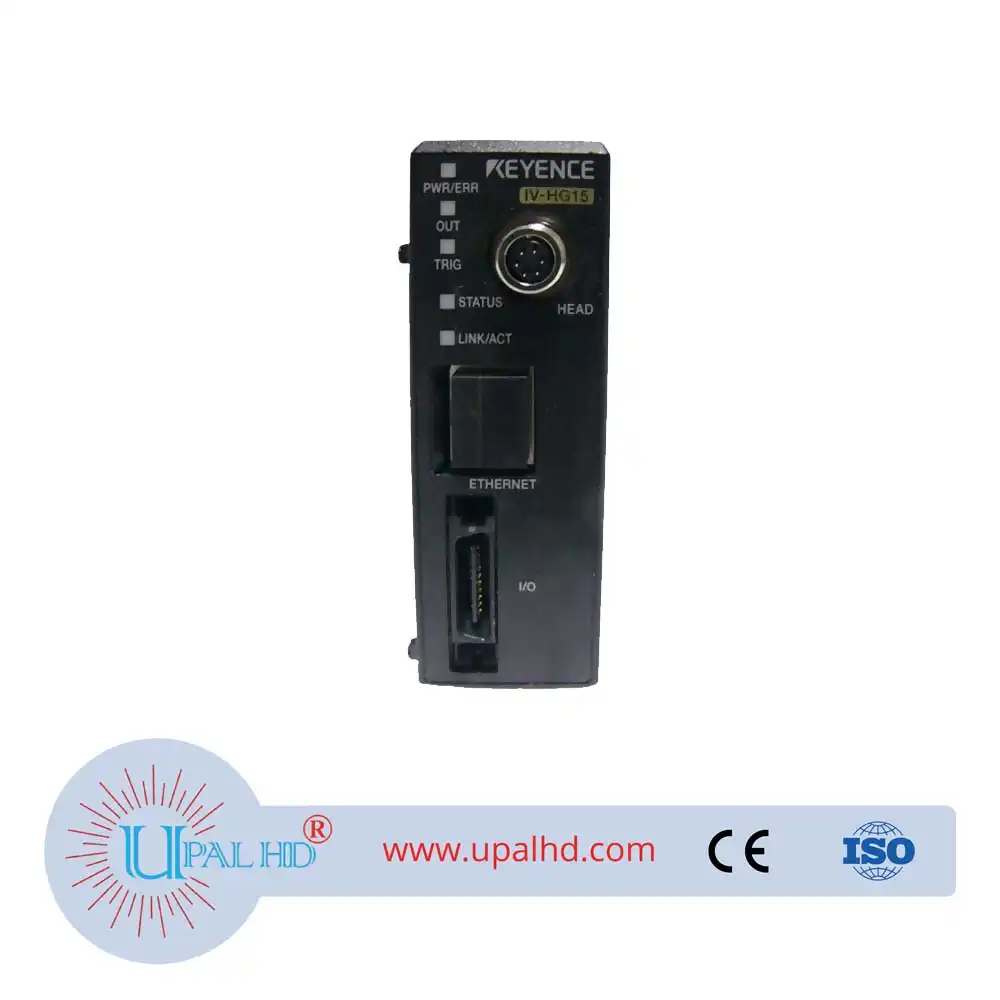

PRODUCT INFORMATION OF Keyence Sensor Controller Expansion Unit IV-HG15.
| Model | IV-HG15 | |||
| Type | Expansion unit | |||
| Tools | Type | Shape Detection, Color Area*1, Area*2, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR*3 | ||
| Number | Detection tools: 16 tools, position adjustment tool: 1 tool*4 | |||
| Switch settings (programs) | 32 programs | |||
| Image history | Numbers | When using a color type head: 100 images*5, when using a monochrome type head: 300 images*6*7 | ||
| Condition | NG only/All is selectable*7 | |||
| Analysis information | OFF/Statistics/Histograms/Matching rate list is switchable Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*8 |
|||
| Other functions | HDR, HighGain, Color filters*1, Digital zoom (2x, 4x)*9, Brightness correction, Tilt correction, White balance*1, Mask function, Color histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold | |||
| Indicators | PWR/ERR, OUT, TRIG, STATUS, LINK/ACT | |||
| Input | Type | Non-voltage input/voltage input is switchable For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit) For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V) |
||
| Inputs | 6 inputs (IN1 to IN6) | |||
| Function | IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input |
|||
| Output | Type | Open collector output NPN/PNP is switchable, N.O./N.C. is switchable For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 1.5 V or lower For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 2 V or lower |
||
| Outputs | 8 outputs (OUT1 to OUT8) | |||
| Function | Enable by assigning the optional functions Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool, Result of the logical operation of each tool, Main unit/expansion unit logical output |
|||
| Ethernet | Standard | 100BASE-TX/10BASE-T*10 | ||
| Connector | RJ-45 8pin connector*10 | |||
