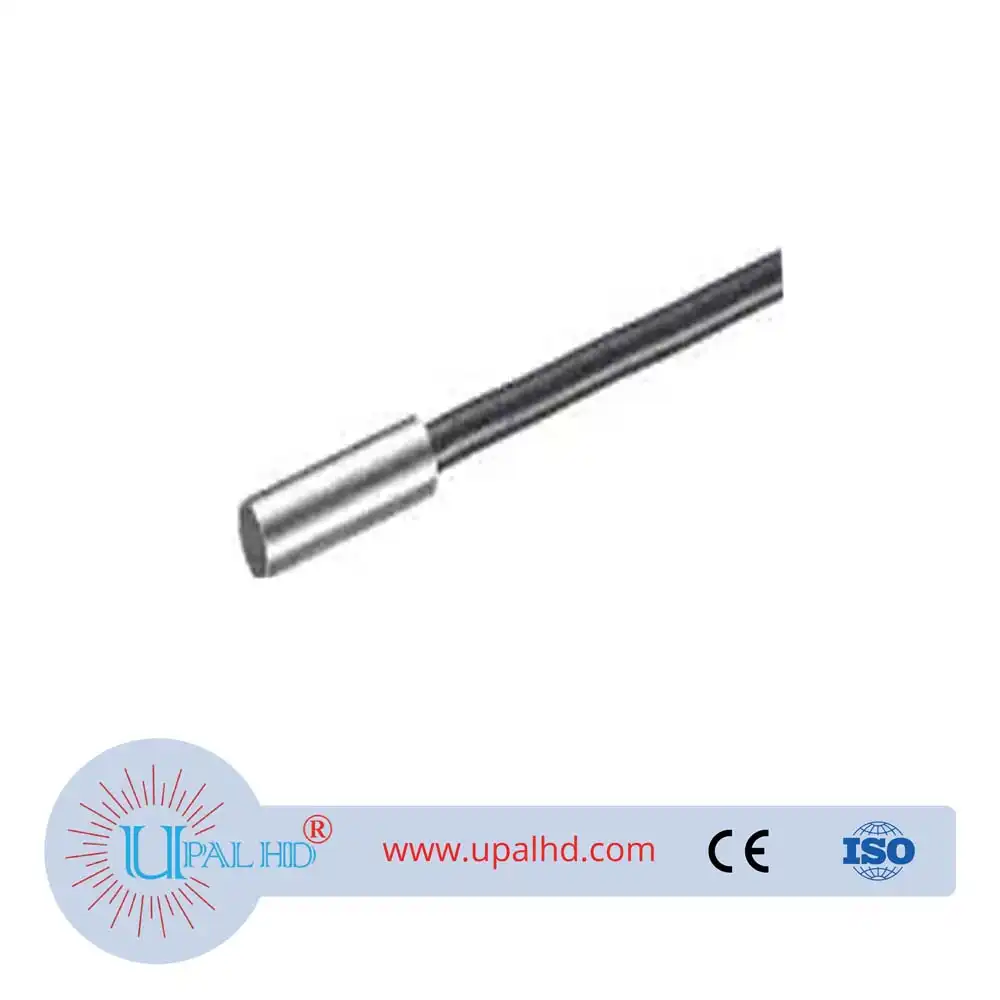

PRODUCT INFORMATION OF Keyence sensor head EH-305.
| Model | EH-305 | |||
| Type | Standard , Shielded , Cylindrical | |||
| Detectable object | Ferrous metals (see Characteristics for nonferrous metals) | |||
| Standard target (iron, t=1 mm 0.04″) | 5 x 5 mm0.02″ | |||
| Stable detecting range | 0 to 1 mm0.04″ | |||
| Maximum detecting distance | 3 mm0.12″ | |||
| Hysteresis | 0.05 mm0.002″ | |||
| Repeatability | 0.002 mm0.00008″ | |||
| Temperature characteristics | ±10% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F | |||
| Environmental resistance | Enclosure rating | IP67 | ||
| Ambient temperature | -10 to +60 °C 14 to 140 °F (No freezing) | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Weight | Approx. 45 g (including nuts and 3-m 9.8′ cable) | |||
