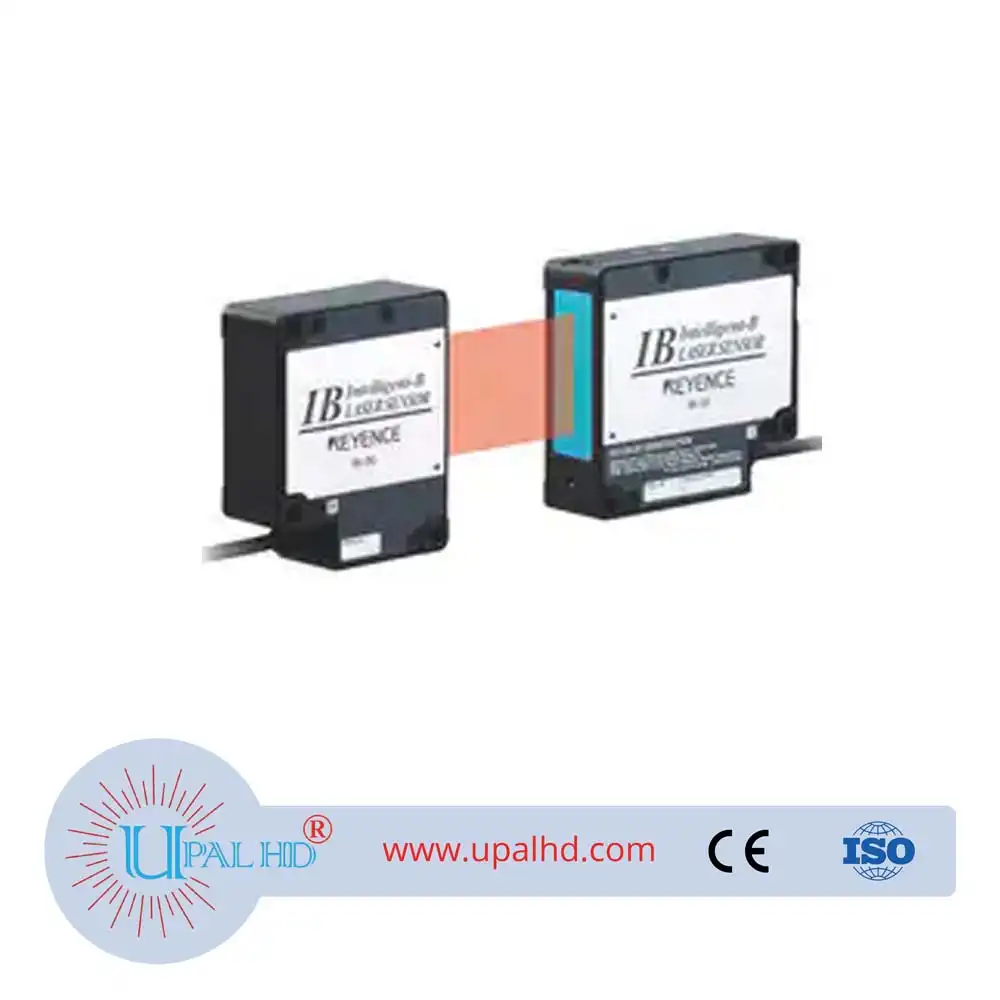

PRODUCT INFORMATION OF Keyence Sensor head IB-30.
| Model | IB-30 | |||
| Light source | Wavelength | 660 nm (Visible light semiconductor laser) | ||
| Laser Class | Class 1 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10*1) | |||
| Installation distance | 0 to 300 mm 11.81″ | |||
| Measurement range | 30 mm 1.18″ | |||
| Sampling cycle | 12,500 times/sec. (80 µs) | |||
| Minimum detection target | ø0.2 mm ø0.01″*2 | |||
| Repeatability | 10 µm 0.39 Mil*3 | |||
| Temperature characteristics | ±0.1 % of F.S./°C (±30 µm 1.18 Mil)*4 | |||
| Operating indicators | Laser emission warning indicator: green LED | |||
| Environmental resistance | Ambient light | Incandescent lamp: 10,000 lux, Solar light: 10,000 lux | ||
| Ambient temperature | 0 to +50 °C 32 to 122 °F (No freezing) | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis | |||
| Material | Case | Galvanized die cast | ||
| Lens cover | Glass | |||
| Cable | PVC (2 m 6.6′) | |||
| Weight | Approx. 510 g | |||
