Description

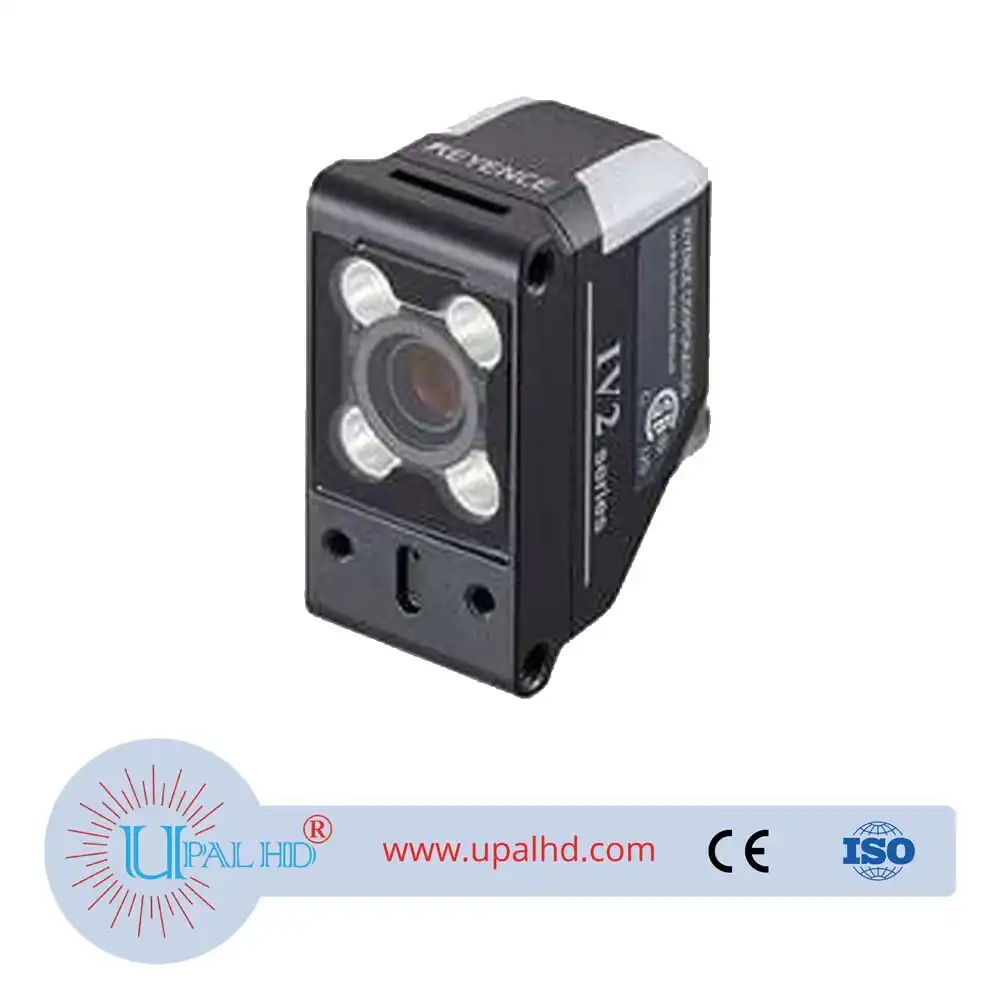

PRODUCT INFORMATION OF Keyence sensor head standard color AF model IV2-G500CA.
| Model | IV2-G500CA | |||
| Type | Standard model | |||
| Reference distance | 20 to 500 mm 0.79″ to 19.69″ | |||
| Field of view | Installation distance of 20 mm 0.79″: 10 (H) × 7.5 (V) mm 0.39″ (H) × 0.30″ (V) to Installation distance of 500 mm 19.69″: 200 (H) × 150 (V) mm 7.87″ (H) × 5.91″ (V) |
|||
| Indicators | 2 (the same display details for both indicators) | |||
| Image receiving element | Type | 1/3 inch color CMOS | ||
| Number of pixels | 752 (H) × 480 (V) | |||
| Focus adjustment | Automatic*1 | |||
| Exposure time | 1/10 to 1/50000 | |||
| Lights | Illumination | White LED | ||
| Lighting method | Switchable between pulse lighting and DC lighting | |||
| Environmental resistance | Enclosure rating | IP67*2 | ||
| Ambient temperature | 0 to +50°C 32 to 122°F (No freezing) | |||
| Relative humidity | 35 to 85% RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06″; 2 hours in each of the X, Y, and Z directions*3 | |||
| Shock resistance | 500 m/s2 1640.4’/s2, 6 times in each of the 3 directions*3 | |||
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU | |||
| Weight | Approx. 75 g | |||
