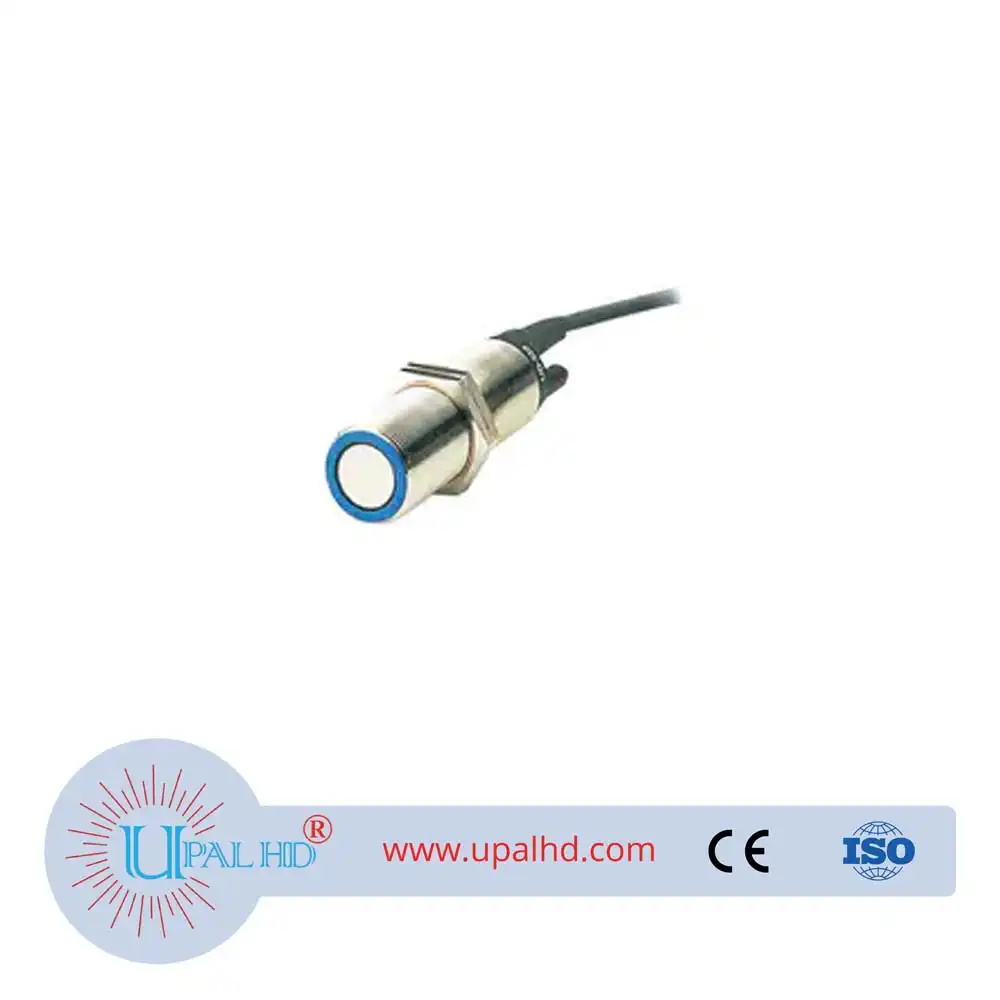

PRODUCT INFORMATION OF Keyence ultrasonic displacement sensor UD-320.
| Model | UD-320 | |||
| Type | Long-range type sensor head | |||
| Amplifier unit | UD-300 | |||
| Measurement range | 200 to 1300 mm | |||
| Display resolution | 1mm | |||
| Indication system (Display) | ±1% of F.S.*1 | |||
| Analogue current output | Output current | 4 to 20mA | ||
| Applicable load | 0 to 500 Ω | |||
| Resolution | 0.08mA*2 | |||
| Temperature characteristics | 0.05% of F.S./°C | |||
| output | Controloutput | Relay output: 1c × 2, 220 VAC, 3 A (resistive load) | ||
| Alarm output | Relay output: 1a, 220 VAC, 3 A (resistive load) | |||
| Hysteresis (of detecting distance) | 1 to 255 mm variable | |||
| Response time | 56 ms (at 10 Hz) | |||
| Minimum detectable object | 20 x 20 mm*3 | |||
| Rating | Power voltage | 24 VDC, Ripple (P-P) 10 % or less*4 | ||
| Current consumption | 250 mA or less | |||
| Environmental resistance | Enclosure rating | IP65 | ||
| Ambient temperature | -25 to +70 °C | |||
| Relative humidity | 35 to 85 % RH (No condensation) | |||
| Weight | Approx. 190 g (not including the cord) | |||
