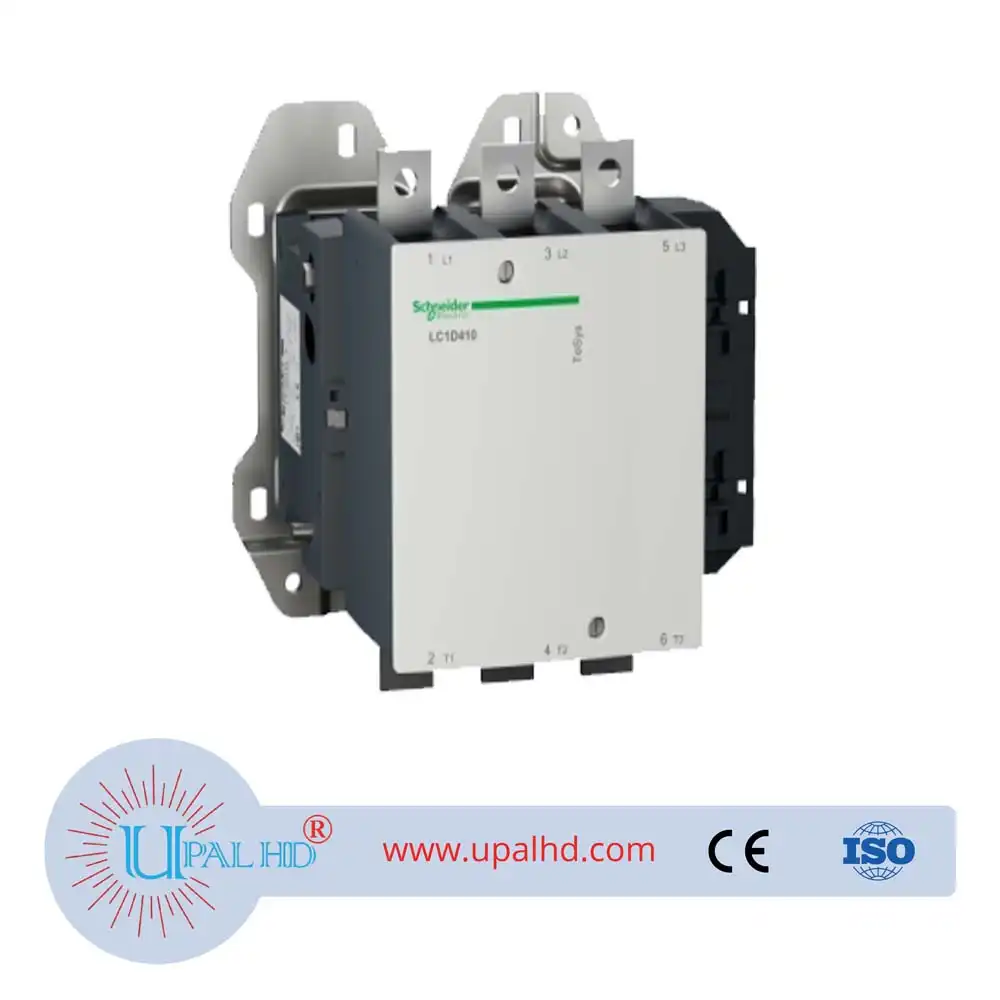

LC1D410M7C Schneider LC1D three-level AC contactor AC24 220V 380V.
Schneider LC1D three-level AC contactor LC1D410M7C AC24 220V 380V.LC1D AC Contactor Model No:LC1D410M7C.LC1D410M7C is a 3-level contactor of TeSysD series, suitable for controlling various types of motors at an ambient temperature below 60°C, the maximum operating altitude is 3000m without derating, and the maximum operating frequency is 2400 times/hour. The control coil provides an AC voltage of 220V 50 /60Hz is used to control the on and off of the contactor. The front of the product provides IP20 protection to prevent direct finger contact. The product has passed CCC certification. Flexible and simple installation methods can be clamped on 2X35mm rails or directly screwed on the bottom plate.
Description
PRODUCT INFORMATION OF SCHNEIDER LC1D three-level AC contactor LC1D410M7C AC24 220V 380V.
| Product Series | TeSys Deca |
|---|---|
| Product Series | TeSys Deca |
| product type | Contactor |
| product short name | LC1D |
| Application field of contactor | Applied to AC loads with power factor greater than or equal to 0.95 Applied to non-inductive or slightly inductive loads, resistance furnaces |
| use category of LC1D410M7C | AC- 3AC-1 |
| number of poles | 3P |
| Rated working voltage [Ue] | Power circuit: <= 1000 V AC 25…400 Hz Power circuit: <= 460 V DC |
| Rated operating current [Ie] | 500 A 40 °C) at <= 440 V AC AC-1 for power circuits 410 A 40 °C) at <= 440 V AC AC-3 for power circuits |
| [Uc] control circuit voltage | 230V AC 50/60Hz |
| Motor power (kW) | 110 kW at 220/240 V AC 50/60 Hz (AC-3) 220 kW at 380/400 V AC 50/60 Hz (AC-3) 220 kW at 415 V AC 50/60 Hz (AC-3) 250 kW at 440 V AC 50/60 Hz (AC-3) 250 kW at 500 V AC 50/60 Hz (AC-3) 280 kW at 660/690 V AC 50 /60 Hz (AC-3) 185 kW at 1000 V AC 50/60 Hz (AC-3) |
| model of LC1D410M7C | LC1D |
| Loop contact type | 3 NO |
| protection cap | None |
| Conventional thermal current [Ith] | 500 A at <40 °C for power circuits |
| Rated short-time withstand current [Icw] | 3600 A at <40 °C – 10 s for power circuit 2400 A at <40 °C – 30 s for power circuit 1700 A at <40 °C – 1 min for power circuit 1200 A at <40 °C – 3 minutes for power circuits 1000 A at <40 °C – 10 minutes for power circuits |
| Fuses for use with relays | 400 A aM at <= 440 V for power circuits 500 A gG at <= 440 V for power circuits 630 A gG at <= 440 V for power circuits |
| average impedance | 0.26 mΩ – Ith 500 A 50 Hz for power circuits |
| Rated insulation voltage [Ui] | Power circuit: 1000 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| pollution level | 3 |
| Rated impulse withstand voltage [Uimp] | 8 kV according to IEC 60947 |
| Mechanical life | 8 Mcycles |
| Electrical life | 0.5 Mcycles 500 A AC-1 Ue <= 440 V 0.9 Mcycles 370 A AC-3 Ue <= 440 V 0.7 Mcycles 305 A AC-3 Ue 660/690 V |
| Control loop characteristics | AC at 50/60 Hz |
| Control voltage limit | 0.3…0.5 Uc -5…55 °C release 40…400 Hz 0.85…1.1 Uc -5…55 °C run 40…400 Hz |
| (~50Hz pickup) power consumption (VA) | 1075 VA 50 Hz 0.9 20 °C) 1075 VA 60 Hz 0.9 20 °C) |
| (~50Hz hold) power consumption (VA) | 15 VA 50 Hz 0.9 20 °C) 15 VA 60 Hz 0.9 20 °C) |
| heat dissipation | 14W |
| action time of LC1D410M7C | 100…170 ms open 40…75 ms close |
| operating frequency | 2400 cycles/h at <55 °C |
| Wiring capacity | Control circuit: Bolt fastening Cable selection: Flexible wire without wire terminal Control circuit: Bolt fastening Cable selection: Flexible wire with wire terminal Power circuit: Cable with lug Cable selection: Stranded wire with wire Wire terminals Control circuit: Bolt fastening Cable selection: Single solid wire without wire terminals Power circuit: Bus terminal |
| Tightening torque | Control circuit: 1.2 Nm Power circuit via bolt fastening : 35 Nm Power circuit via busbar terminals : 35 Nm via cable connector |
| Auxiliary contact type | Does not contain |
| installation method | Rail installation |
| standard of LC1D410M7C | IEC 60947-4-1 GB 14048.4 |
| certified product | CCC CE |
| ambient air temperature | -40…60 °C operation 60…70 °C with derating -60…80 °C storage |
| working altitude | 3000 m None |
| Shock and vibration resistance | Shock resistance 11 ms with contacts closed (15 gn) conforming to IEC 60068-2-27 Shock resistance 11 ms with contacts open (6 gn) conforming to IEC 60068-2-27 Shock resistance with contacts closed (5 gn (5 gn) …300 Hz)) conforming to IEC 60068-2-6 shock resistance contact opening (1.5 gn (5…300 Hz)) conforming to IEC 60068-2-6 |
| high of LC1D410M7C | 206 mm |
| width of LC1D410M7C | 213mm |
| depth of LC1D410M7C | 219 mm |
| Product Weight | 10.05kg |
