| Type |

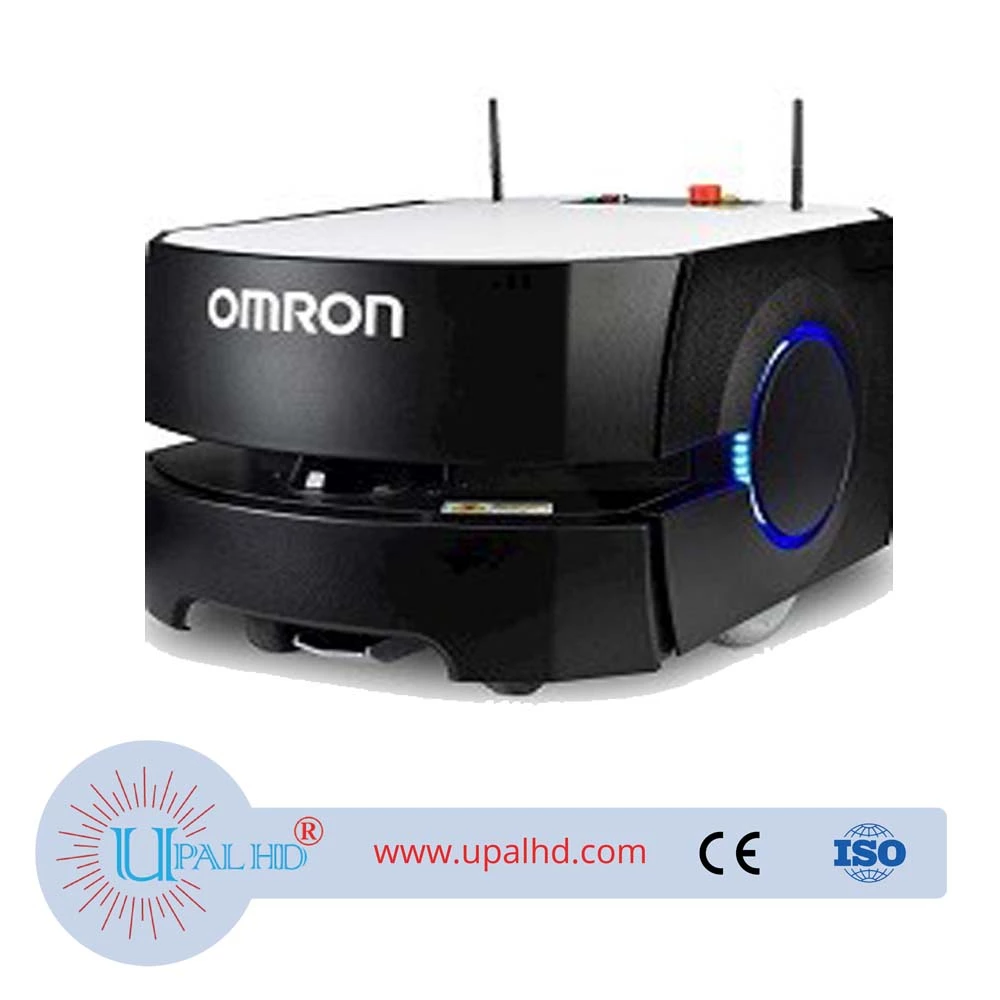

Mobile Robot-LD Platform |
| Payload [Max] |
60 kg132 lb |
| Dependencies |
High Accuracy Positioning, Camera Localization, 13605-000, 13558-000, 13495-200, 12944-000, 13029-802, 11167-100, 13456-100, 18578000 |
| Accessories |
Accessories, IA-OAT-WEL, IA-OAT-WEL1, Mobile Robot Training, ROBOT-CONT-LD60-CC-1, ROBOT-CONT-LD60-CC-ADD |
| Special Function |
LD-60 with Low Sensing Laser |
| With Low Sensing Laser |
Yes |
| Lynx Charging Station |
Yes |
| Operating Temperature [Min] |
5 ºC |
| Operating Temperature [Max] |
40 ºC |
| IP Rating |
IP20 |
| Speed [Max] |
1800 mm/s1.8 m/s |
| Humidity |
5 to 95 % |
| Safety Standard |
EN1525, JIS D6802, ANSI B56.5 |
| Rotation Speed [Max] |
180 º/sec |
| Stop Position Accuracy |
±100 mm |
| Stop Rotation Position Accuracy |
±2 º |
| Drive Wheels Materials |
Non-Marking Nylon Foam-Filled Rubber, Non-Conductive |
| Drive Wheels Diameter |
200 mm |
| Drive Wheels Nominal Size |
50 mm |
| Number of Wheel |
2 |
| Passive Caster Materials |
Conductive Thermoplastic Rubber on Polyolefin |
| Passive Caster Diameter |
75 mm |
| Passive Caster Nominal Size |
41 mm |
| Number of Caster |
4 |
| Wireless Standards |
IEEE 802.11 a/b/g |
| Safety Scanning Laser |
1 at front Class 1 PLd Safety per ISO13849-1 |
| Safety Scanning Laser Maximum Range |
15 m |
| Safety Scanning Laser Field of View |
240 º |
| Emergency Stop |
1 at Operator Panel |
| Rear Sonar |
2 at Rear |
| Rear Sonar Range |
2 m |
| Front Bumper |
1 at Front of Platform |
| Front Bumper Sensors Pairs |
2 |
| Low Front Laser |
1 at Front of Platform Class 1 |
| Low Front Laser Maximum Range |
4 m |
| Low Front Laser Field of View |
270 º |
| Speaker Size |
3.5 in |
| Speaker Power [Max] |
80 W |
| Screen/Touch Panel |
3.5 in. TFT 320 x 240 Pixels, 256 K Color Screen |
| Cart Latching |
Not Available |
