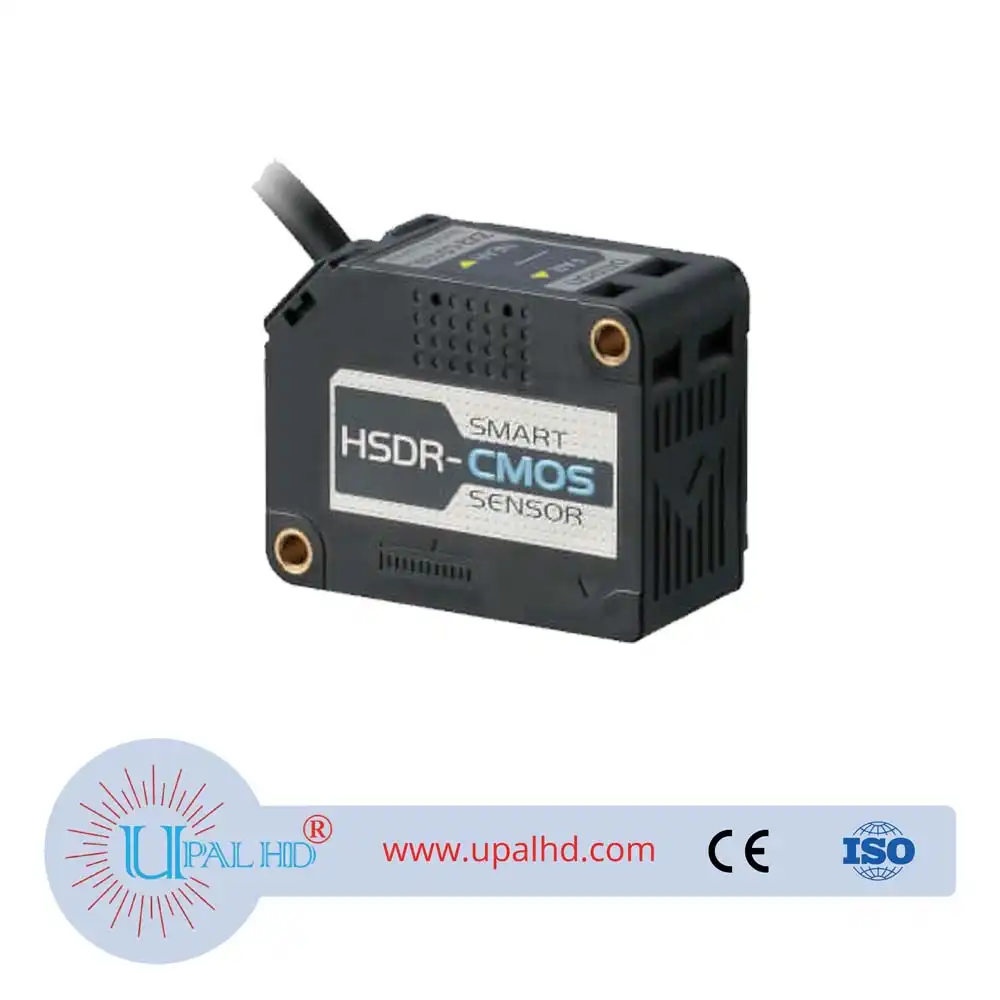

Omron agent factory displacement ZX2-LD100 0.5M reflective smart sensor.
Omron agent factory displacement ZX2-LD100 0.5M reflective smart sensor. Laser Displacement Sensors Model No: ZX2-LD100 0.5M. Laser displacement sensor, CMOS type, sensor head, spot beam type, 100mm +/-35mm, 5µm resolution, 0.5m cable.
Description
PRODUCT INFORMATION OF Omron agent factory displacement ZX2-LD100 0.5M reflective smart sensor.
| Geometrical resolution | 0.005 mm |
| Measuring range length | 65-135 mm |
| Relative linearity deflection | 0.1 % |
| Sensing distance | 100 mm |
| Sensing distance (min.) | 65 mm |
| Sensing method | Diffuse reflective |
| Spot size | 0.1 mm |
| Height of sensor | 47.5 mm |
| Width sensor | 22.6 mm |
| Overall length | 35.5 mm |
