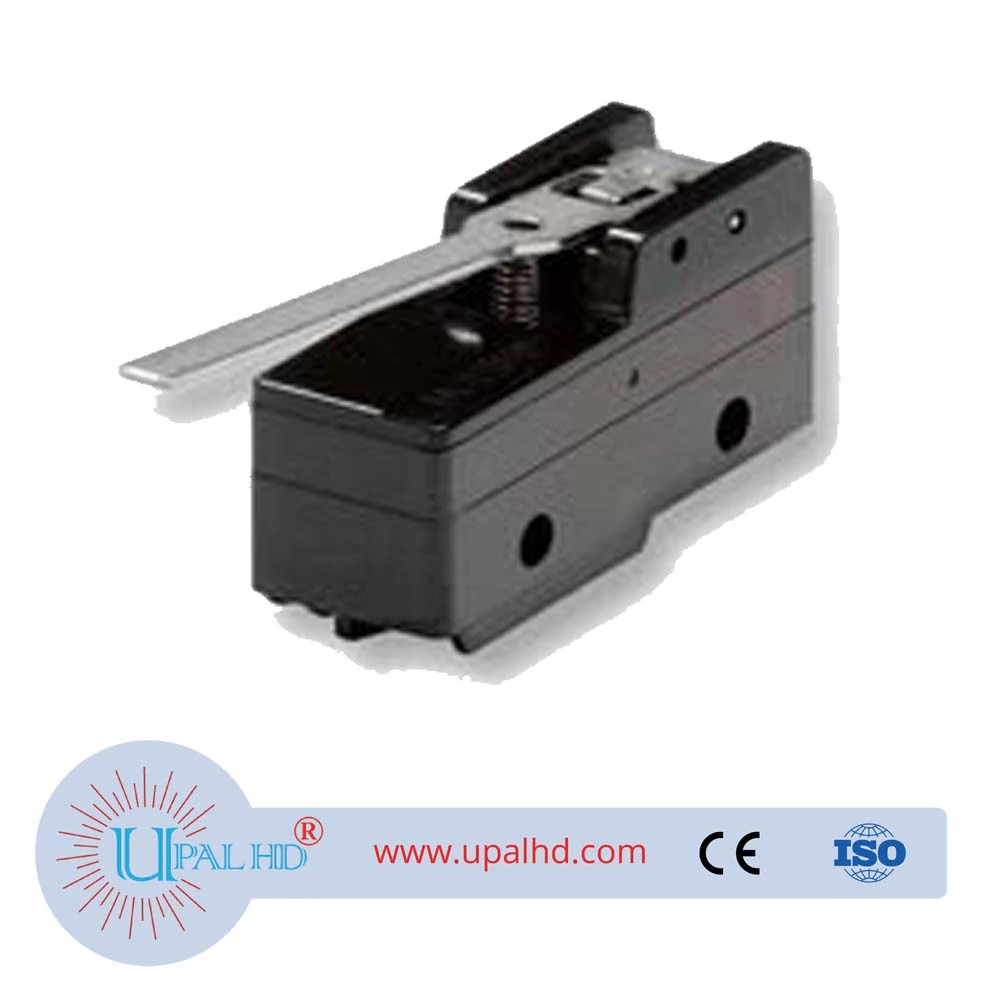

PRODUCT INFORMATION OF OMRON micro switch Z-15GQ-B Z-15GQ22-B three-legged plunger type waterproof micro switch
| Type | Basic Switch |
| Terminal Type | Screw Terminal |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Accessories | AP-B, AP-Z |
| Rated Load Current at 250 V Alternating Current (AC) Voltage | 15 A |
| Inrush Current at Normally Closed (NC) Contact Configuration | Up to 30 A |
| Inrush Current at Normally Open (NO) Contact Configuration | Up to 15 A |
| Mounting Hole Size | 4.2 mm |
| Electrical Operations [Min] | 500,000 |
| Mechanical Operations [Min] | 20 OPM |
| Mechanical Operations [Max] | 240 OPM |
