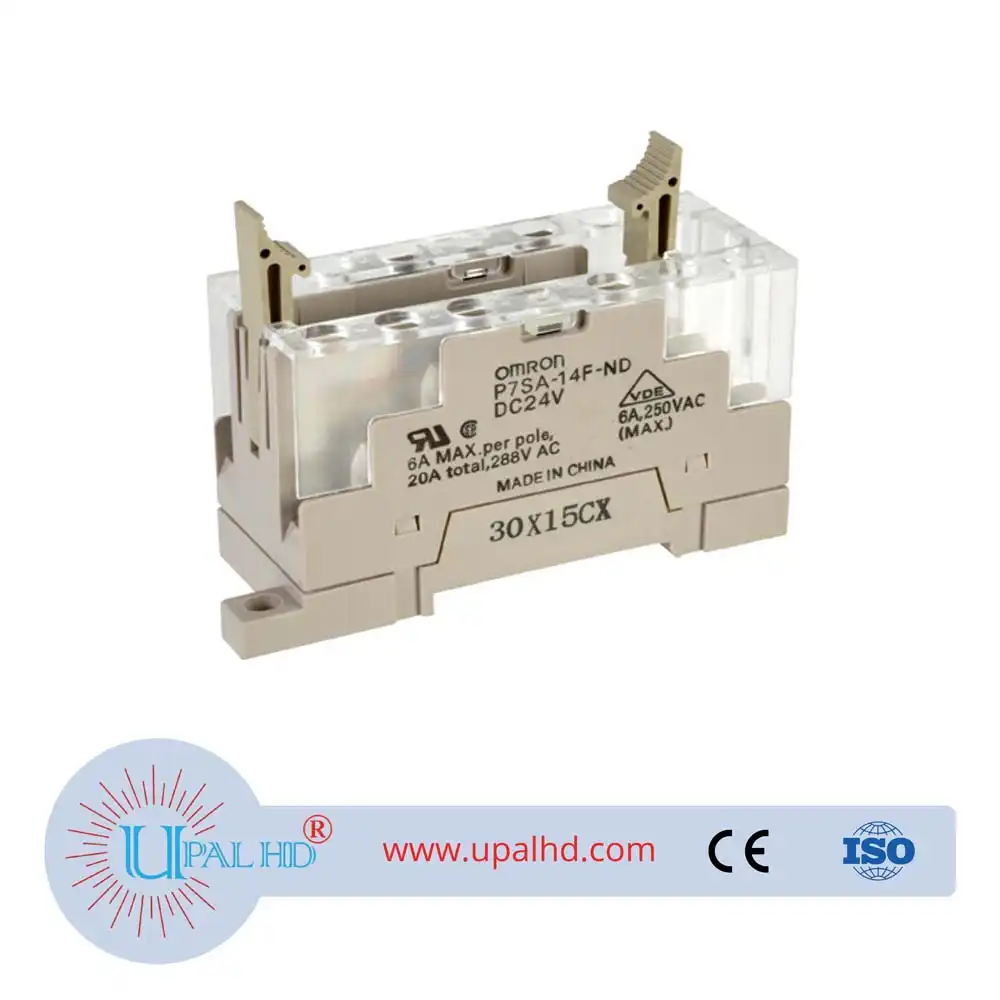

PRODUCT INFORMATION OF Omron safety relay base P7SA-14F-ND DV24V P7SA-10F-ND.
| Contact resistance *1 | 100 mΩ max. | |
|---|---|---|
| Operating time *2 | 20 ms max. | |
| Response time *3 | 10 ms max. | |
| Release time *2 | 20 ms max. | |
| Must operate voltage | 75% max. | |
| Must release voltage | 10% min. | |
| Maximum operating frequency |
Mechanical | 36,000 operations/h |
| Rated load | 1,800 operations/h | |
| Insulation resistance *4 | 1,000 MΩ min. | |
| Dielectric Strength *5 *6 |
Between coil and contacts |
4,000 VAC, 50/60 Hz for 1 min. |
| Between contacts of different olarity |
4,000 VAC, 50/60 Hz for 1 min. (except for followings) 4 poles (for poles 3-4 in 4-pole Relays), 6 poles (for poles 3-5, 4-6, and 5-6 in 6-pole Relays): 2,500 VAC, 50/60 Hz for 1 min. |
|
| Between contacts of the same polarity |
1,500 VAC, 50/60 Hz for 1 min. | |
| Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) | |
| Shock resistance |
Destruction | 1,000 m/s2 |
| Malfunction | 100 m/s2 | |
| Durability *7 |
Mechanical | 10,000,000 operations min. (at approx. 36,000 operations/h) |
| Electrical | 100,000 operations min. (at the rated load) | |
| Inductive load switching capability *8 (IEC60947-5-1) |
AC15 240 VAC, 2 A DC13 24 VDC, 1 A/48 VDC, 0.5 A/110 VDC, 0.2 A |
|
| Failure rate (P level) (reference value *9) |
5 VDC, 1 mA | |
| Ambient operating temperature *10 |
12 to 48 VDC: -40 to 85°C (with no icing or condensation) 110 VDC: -40 to 60°C (with no icing or condensation) |
|
| Ambient operating humidity | 5% to 85% | |
| Weight | 4 poles: Approx. 22 g 6 poles: Approx. 25 g |
|
