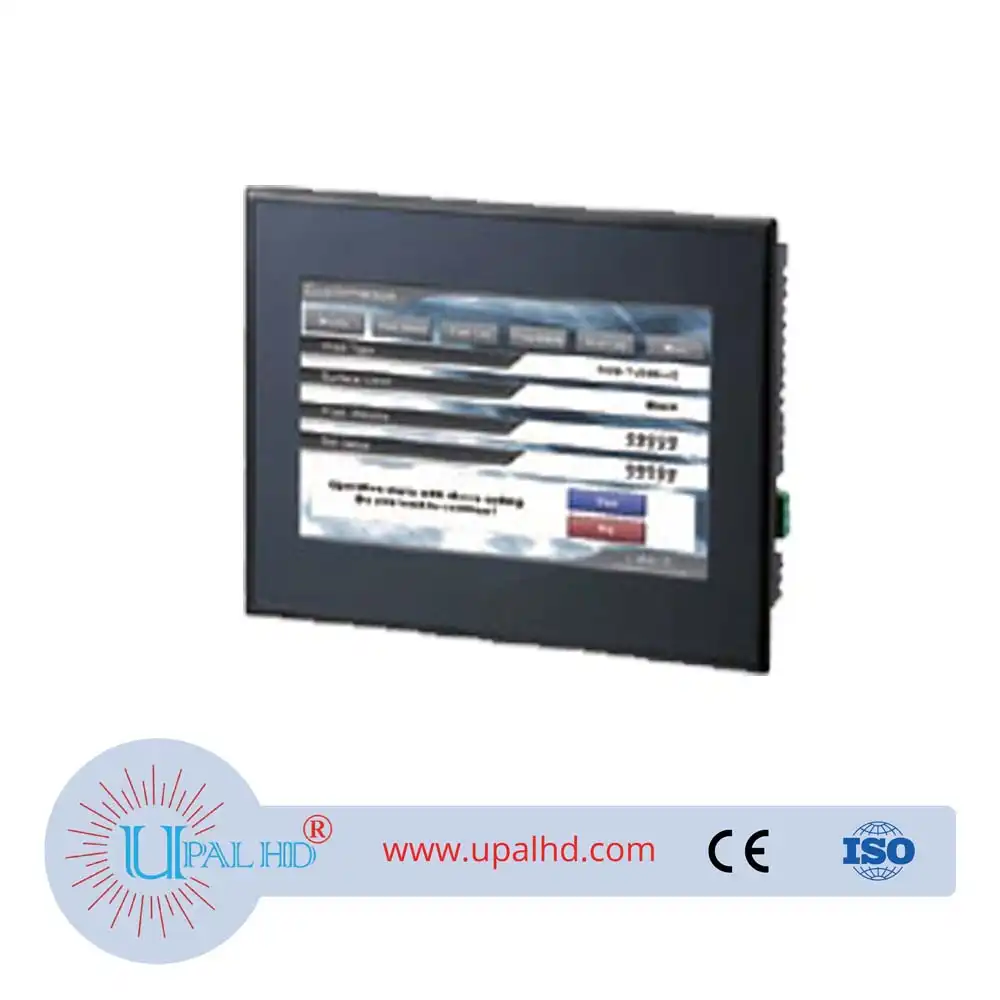

PRODUCT INFORMATION OF Omron touch screen NB7W-TW10B 7 inch programmable terminal.
| Display type | 7″ TFT LCD | |
|---|---|---|
| Display resolution (H x V) |
800 × 480 | |
| Number of colors | 65536 | |
| Front-side LED | No | |
| Backlight Life | 50,000 hours (Typ) of operating time at the normal temperature (25°C) with 40% brightness * | |
| Touch panel | Type: resistive type Operation force: 0.5 to 0.8 N Press endurance: min. 1,000,000 times (at 25°C) |
|
| Dimensions in mm (H × W × D) |
148 × 202 × 46 | |
| Line voltage | 20.4 to 27.6 VDC (24 VDC -15 to 15%) | |
| Power consumption | 7 W | 6 W |
| Battery lifetime | No | |
| Degree of protection | Front operation part: IP65 (Dust proof and drip proof only from the front of the panel) | |
| Applicable standards | EU Directives, UL61010-2-201 | |
| Operating environment | No corrosive gases. | |
| Noise immunity | Compliant with IEC61000-4-4, 2 KV (Power cable) | |
| Ambient operating temperature | 0 to 50°C | |
| Ambient operating humidity | 10% to 90% RH (without condensation) | |
